19-2758; Rev 0; 1/03
Triple and Quad, 2:1 Video Multiplexer-
Amplifiers with Fixed and Settable Gain
General Description

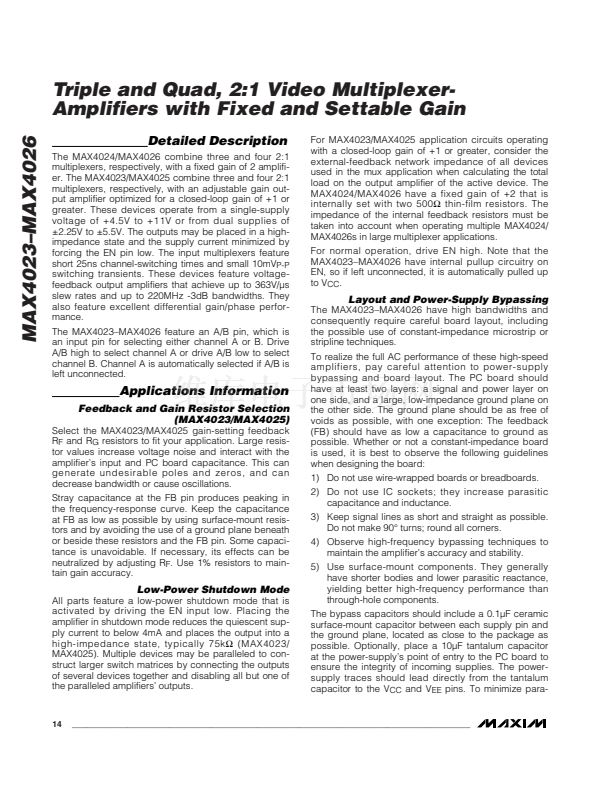

The MAX4023鈥揗AX4026 family of voltage feedback
multiplexer-amplifiers combine low-glitch switching and
excellent video specifications with fixed or settable
gain. The MAX4024/MAX4026 are triple and quad 2:1
multiplexers, respectively, with amplifiers that have a
fixed gain of +2. The MAX4023/MAX4025 are triple and
quad 2:1 multiplexers, respectively, with adjustable
gain amplifiers optimized for unity-gain stability. All

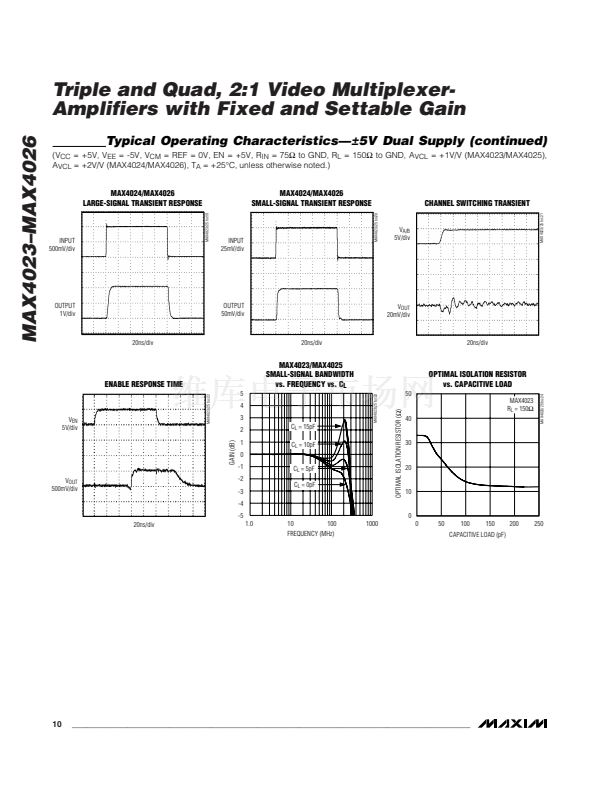

devices have 25ns channel switching time and low
10mV
P-P
switching transients, making them ideal for
high-speed video-switching applications. These
devices operate from a single +4.5V to +11V supply or
from dual supplies of 鹵2.25V to 鹵5.5V, and feature an
input common-mode voltage range that extends to the
negative supply rail. A low-power disable mode places
the output in a high-impedance state.

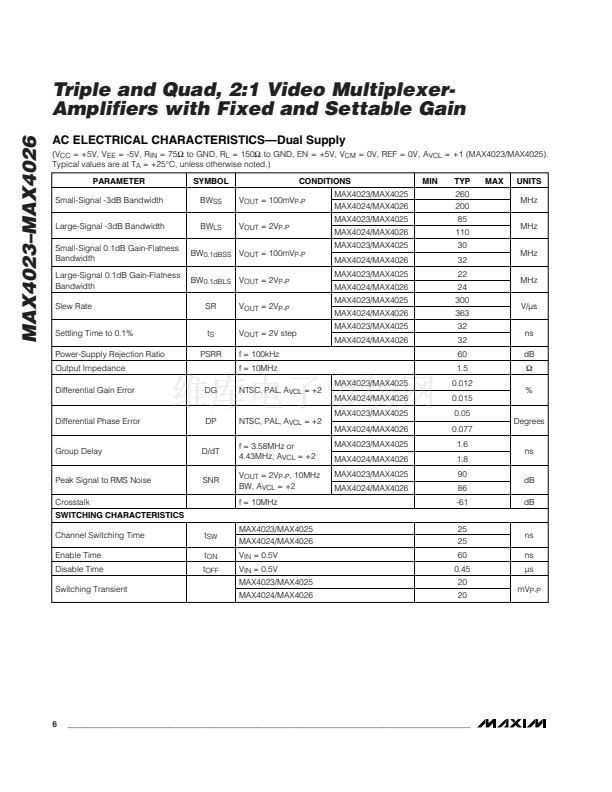

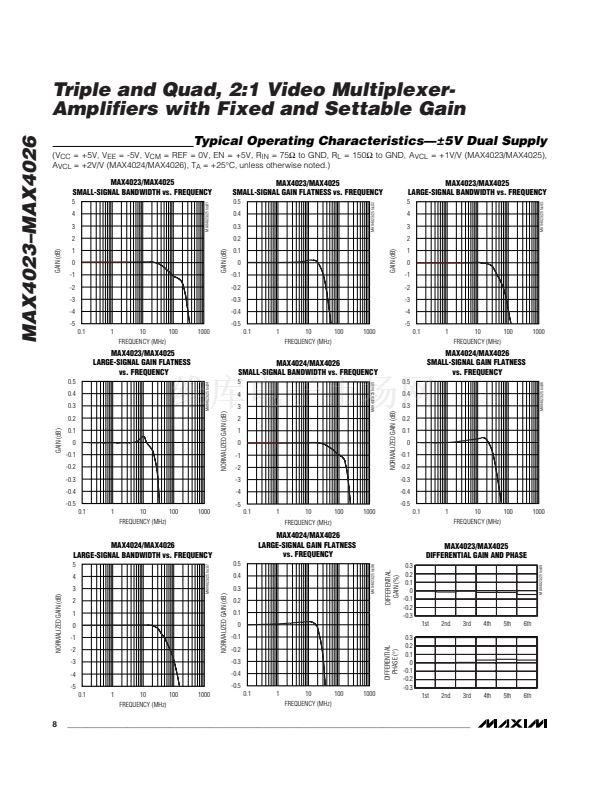

The MAX4023/MAX4025 have -3dB bandwidths of
260MHz and up to 330V/碌s slew rates with a settable
gain to equalize long cable runs. The MAX4024/
MAX4026, with 200MHz -3dB bandwidths and 363V/碌s
slew rates, have a fixed gain of +2 for driving short
back-terminated cables. The MAX4023/MAX4025 inter-
nal amplifiers maintain an open-loop output impedance
of only 18鈩?over the full output voltage range, and mini-
mize the gain error and bandwidth changes under
loads typical of most Rail-to-Rail
廬
amplifiers. These
devices are ideal for broadcast video applications with
differential gain and phase errors of 0.07% and 0.07擄,
respectively.
o

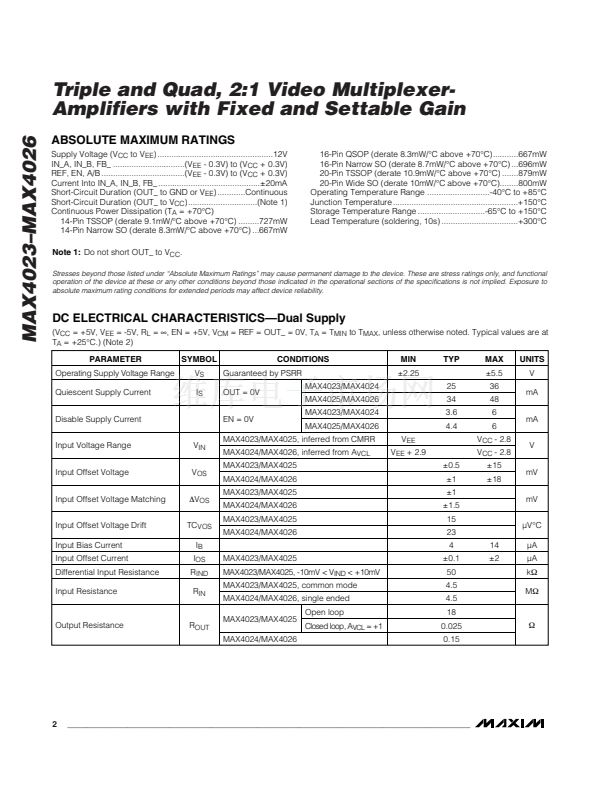

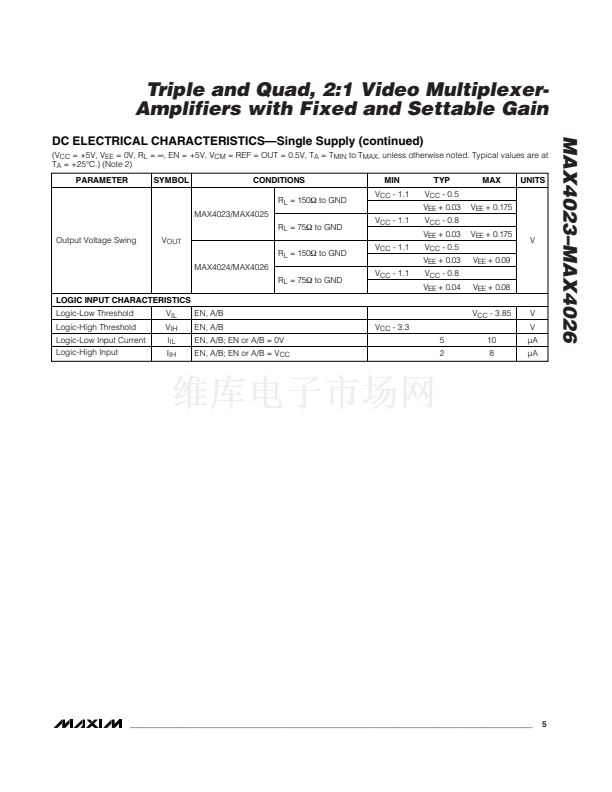

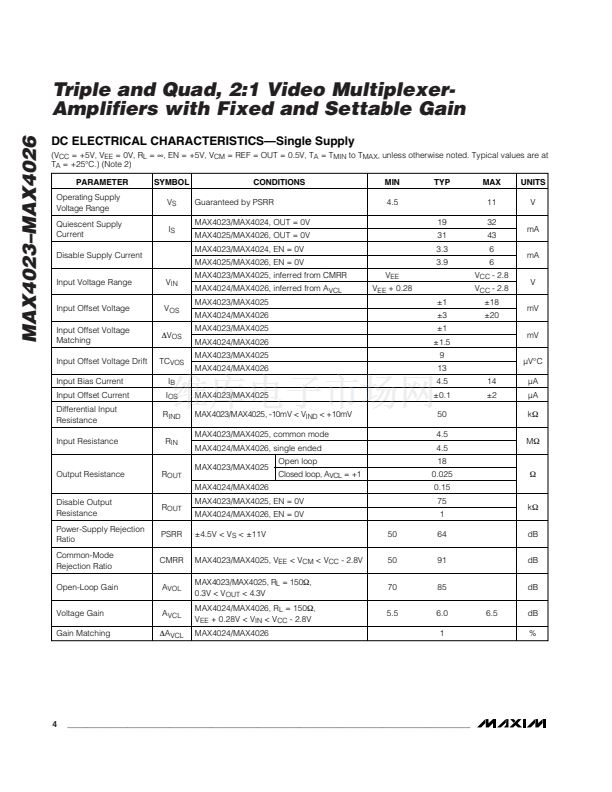

Single +5V or Dual 鹵5V Operation
o

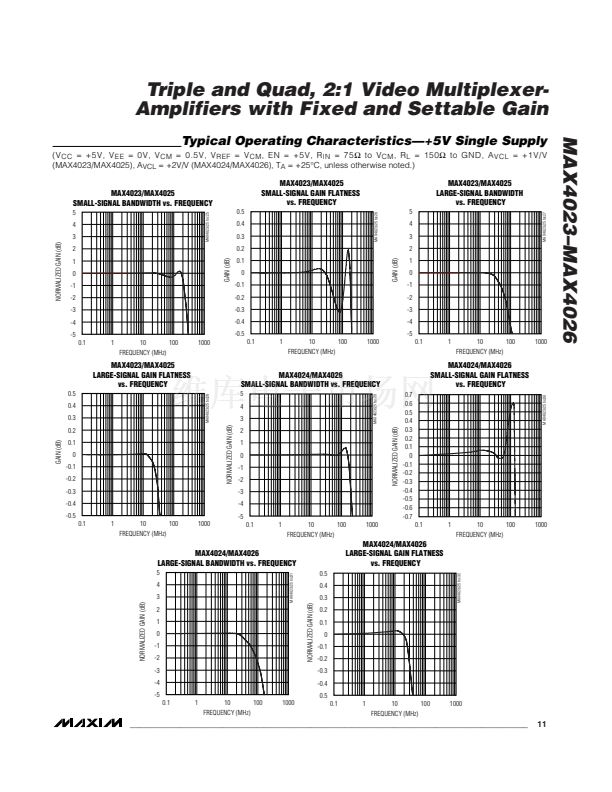

260MHz -3dB Bandwidth (MAX4023/MAX4025)
o
200MHz -3dB Bandwidth (MAX4024/MAX4026)
o
363V/碌s Slew Rate (MAX4024/MAX4026)
o
25ns Channel Switching Time
o
Ultra-Low 20mV
P-P
Switching Transient
o

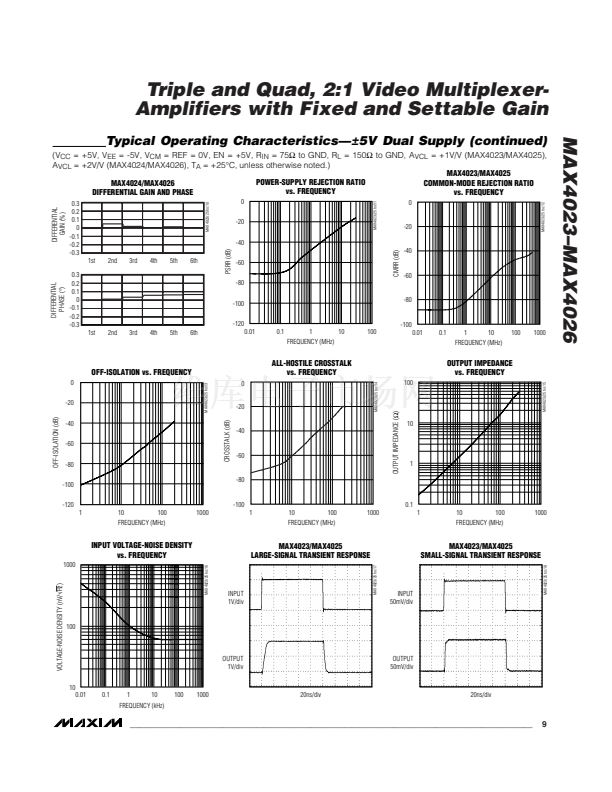

0.012%/0.05擄 Differential Gain/Phase Error
o
Input Common-Mode Range Includes Negative
Rail (MAX4023/MAX4025)
o
Low-Power Disable Mode
o

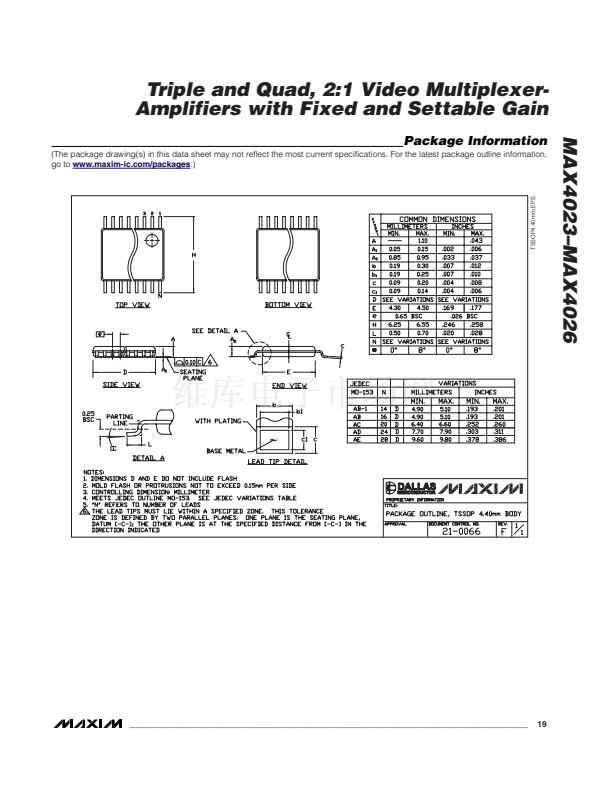

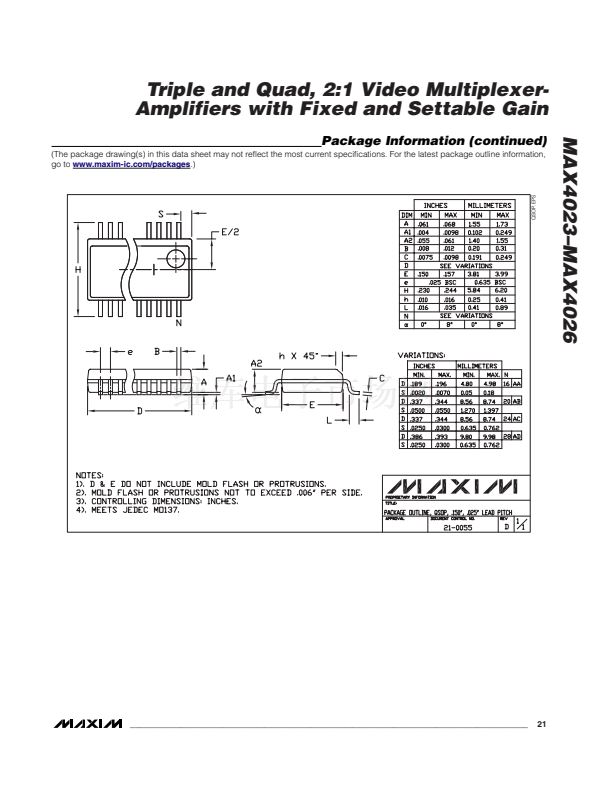

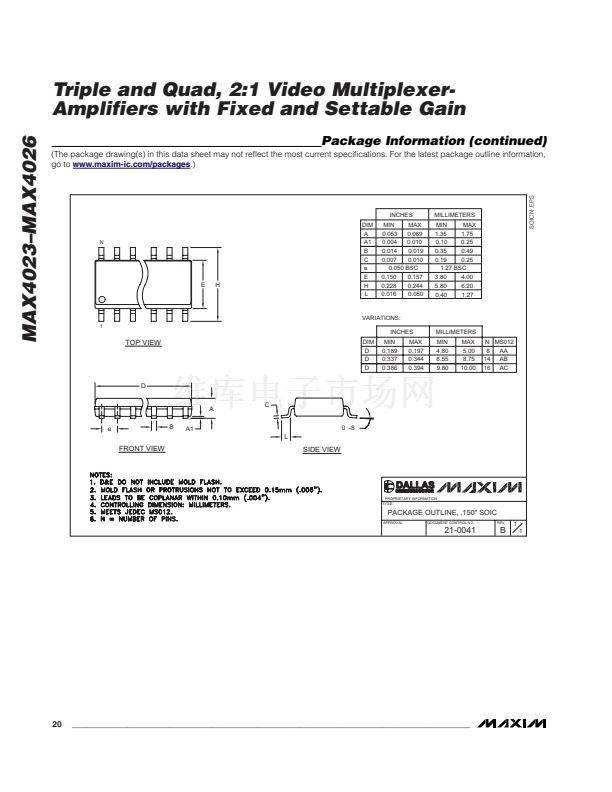

Available in Space-Saving 14-Pin TSSOP and
16-Pin QSOP Packages
Features
MAX4023鈥揗AX4026
Ordering Information
PART
MAX4023EEE
MAX4023ESE
MAX4024EUD
MAX4024ESD
MAX4025EUP
MAX4025EWP
MAX4026EUP
MAX4026EWP
TEMP RANGE
-40擄C to +85擄C
-40擄C to +85擄C
-40擄C to +85擄C
-40擄C to +85擄C
-40擄C to +85擄C
-40擄C to +85擄C
-40擄C to +85擄C
-40擄C to +85擄C
PIN-PACKAGE
16 QSOP
16 Narrow SO
14 TSSOP
14 Narrow SO
20 TSSOP
20 Wide SO
20 TSSOP
20 Wide SO
Applications
Set-Top Boxes
In-Car Navigation/Entertainment
Servers
Security Systems
Video Projectors
Notebook Computers
Broadcast Video
Video Crosspoint Switching

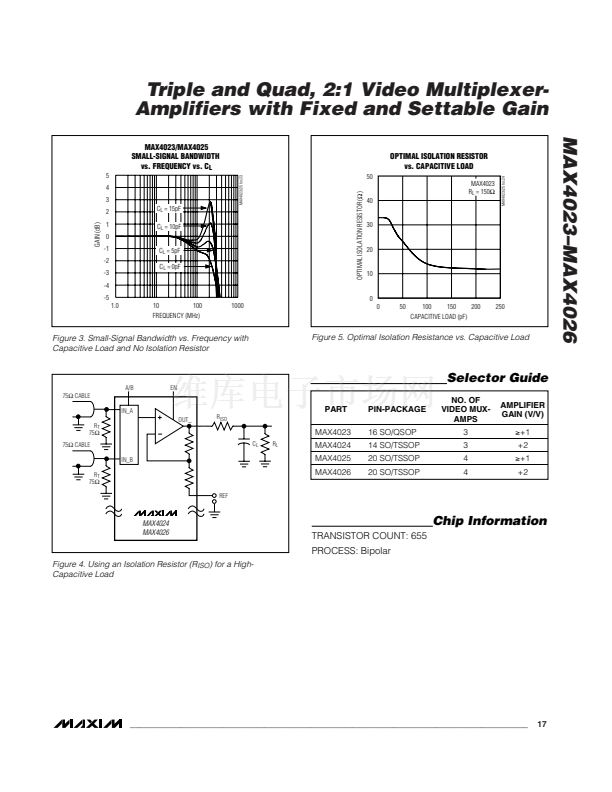

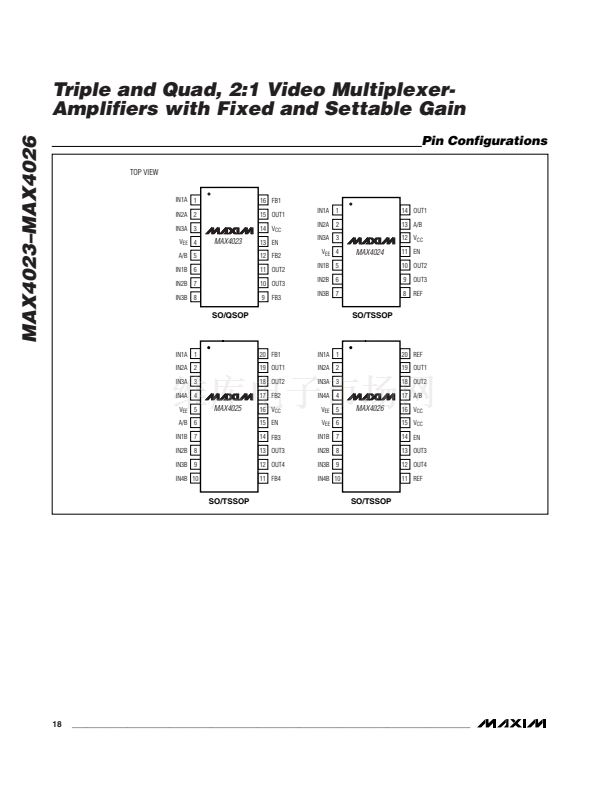

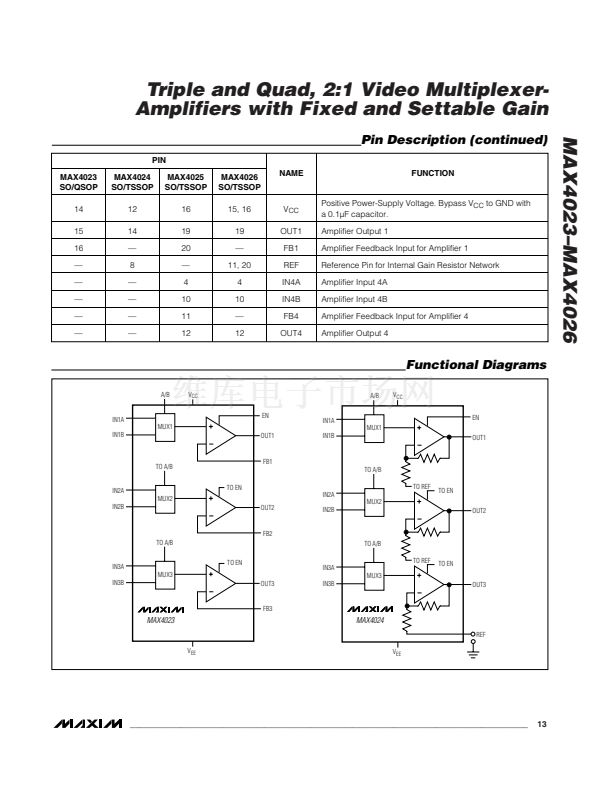

Selector Guide and Pin Configurations appear at end of data
sheet.

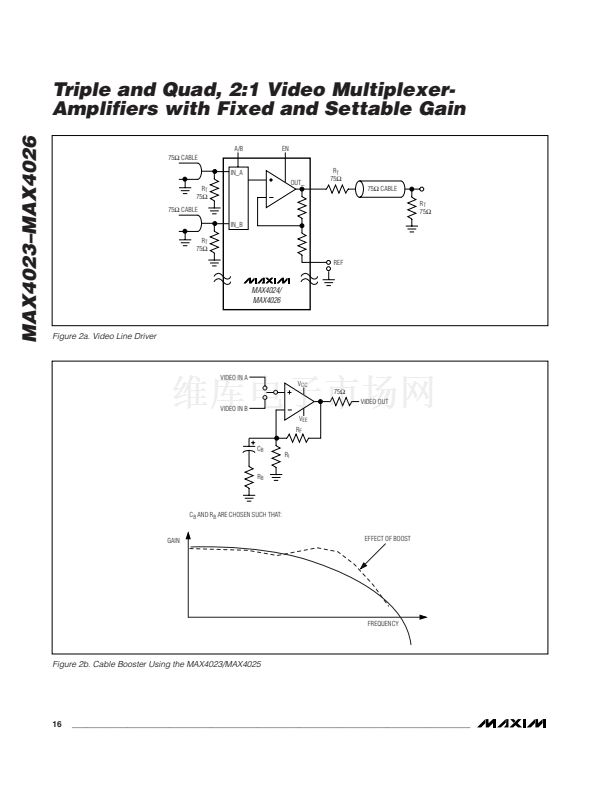

Typical Operating Circuit
VIDEO R
SOURCE G
1
B
MAX4024
x2
R
VIDEO R
SOURCE G
2
B
TRIPLE
2:1
MUX
x2
G
DISPLAY
x2
B
Rail-to-Rail is a registered trademark of Nippon Motorola, Ltd.
SOURCE
SELECT
EN
________________________________________________________________
Maxim Integrated Products
1
For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at
1-888-629-4642, or visit Maxim鈥檚 website at www.maxim-ic.com.
