19-2695; Rev 0; 12/02
MAX3741 Evaluation Kit
General Description
The MAX3741 evaluation kit (EV kit) is an assembled
demonstration board that provides complete optical
and electrical evaluation of the MAX3741 compact
VCSEL driver.

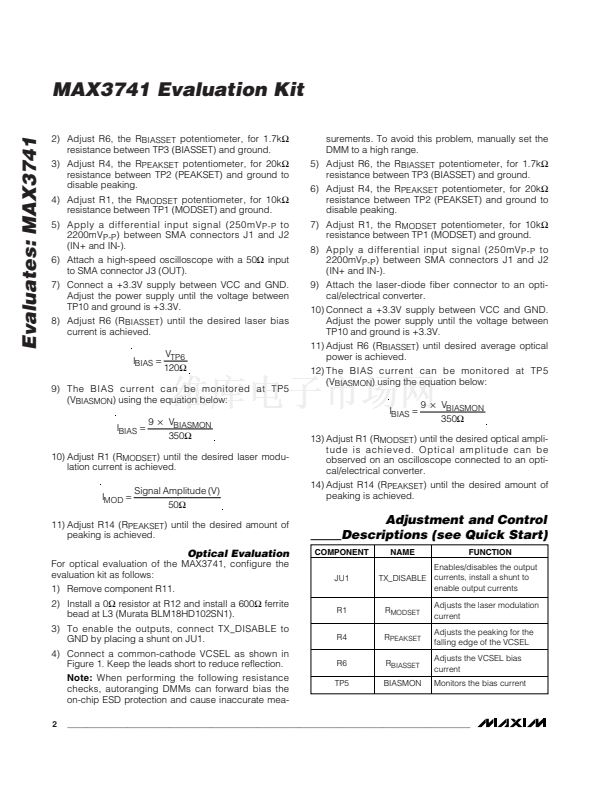

The EV kit has an electrical test section and an optical
test section. Electrically, the output of the evaluation
board is interfaced to an SMA connector, which can be
connected to a 50鈩?terminated oscilloscope. Optically,
the board can be configured to interface with a com-
mon-cathode VCSEL.
o
Fully Assembled and Tested
o
Single +3.3V Power-Supply Operation
o
Allows Optical and Electrical Evaluation
Features
Evaluates: MAX3741
Component Suppliers
SUPPLIER
AVX
Coilcraft
Murata
Zetex
PHONE
803-946-0690
847-639-6400
814-237-1431
516-543-7100
FAX
803-626-3123
847-639-1469
814-238-0490
516-864-7630
PART
Ordering Information
TEMP RANGE
IC PACKAGE
16 Thin QFN (3mm x 3mm)
MAX3741EVKIT -40擄C to +85擄C
Note:
When contacting these suppliers, please indicate that
you are using the MAX3741.

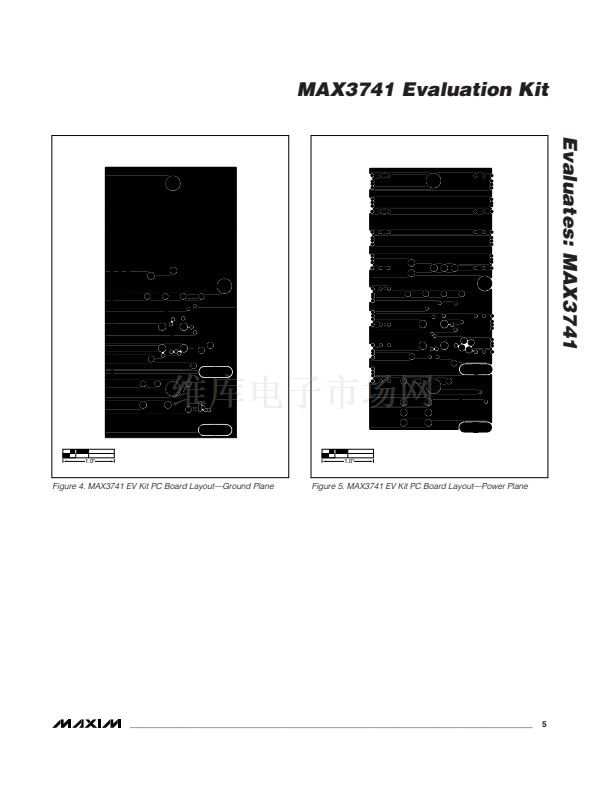

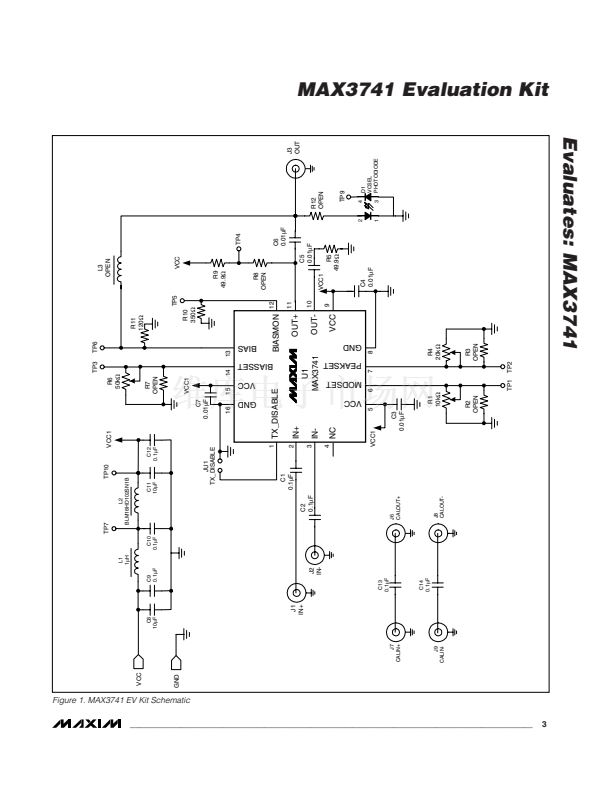

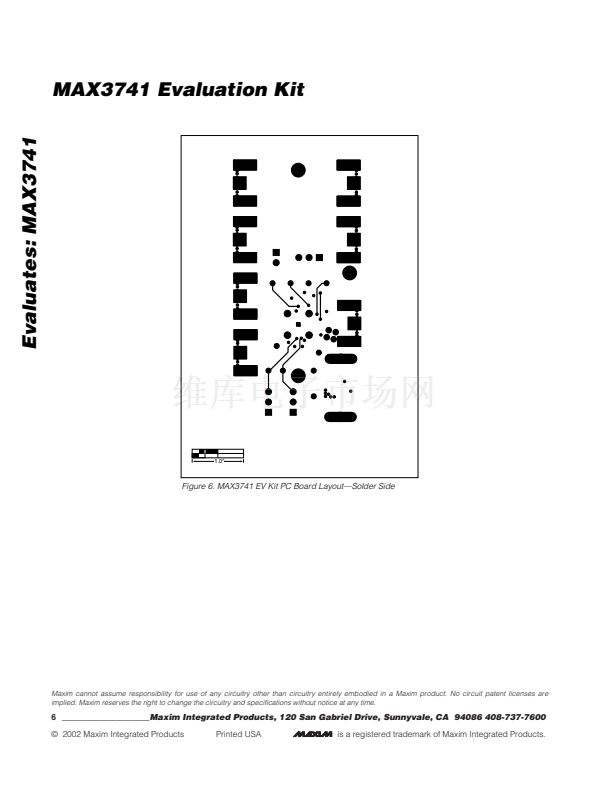

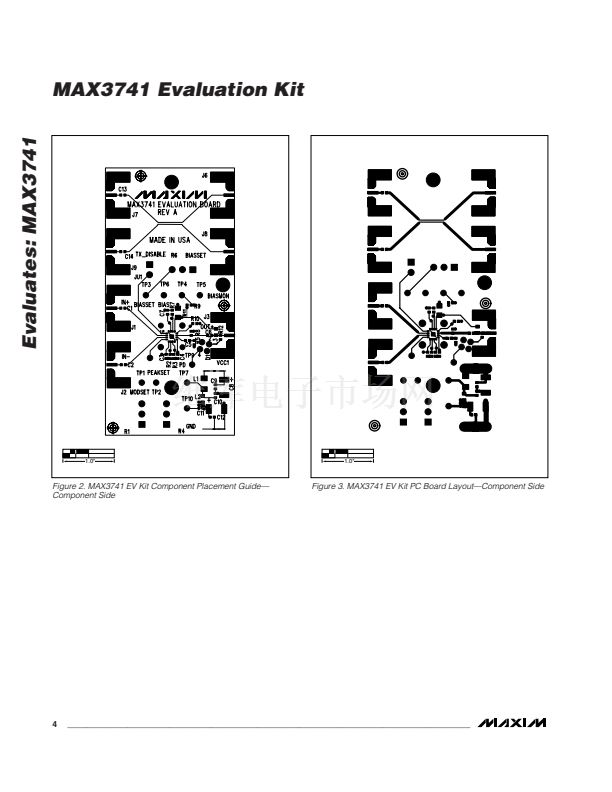

Component List
DESIGNATION
C1, C2, C9, C10,
C12, C13, C14
C3鈥揅7
C8, C11
GND, VCC,
TP1鈥揟P7, TP9,
TP10
JU1
J1, J2, J3, J6鈥揓9
L1
L2
L3
R1
R2, R3, R7, R8
QTY
7
5
2
DESCRIPTION
0.1碌F
鹵10%
ceramic capacitors
(0402)
0.01碌F
鹵10%
ceramic capacitors
(0402)
10碌F
鹵10%
tantalum capacitors,
case B
Test points
2-pin header, 0.1in center
SMA connectors, tab contacts
1碌H inductor (805)
600鈩?ferrite bead (0603)
Murata BLM18HD102SN1B
600鈩?ferrite bead (0603)*
Murata BLM18HD102SN1B
10k鈩?potentiometer
Open
DESIGNATION
R4
R5, R9
R6
R10
R11
R12
U1
11
1
7
1
1
1
1
4
None
None
None
QTY
1
2
1
1
1
1
1
1
1
1
DESCRIPTION
20k鈩?potentiometer
49.9鈩?resistors (0402)
50k鈩?potentiometer
350鈩?resistor (0402)
120鈩?resistor (0402)
0鈩?resistor (0402)*
MAX3741ETE
Shunt
MAX3741 EV board
MAX3741 data sheet
*Not
populated, but can be installed for optical evaluation.
