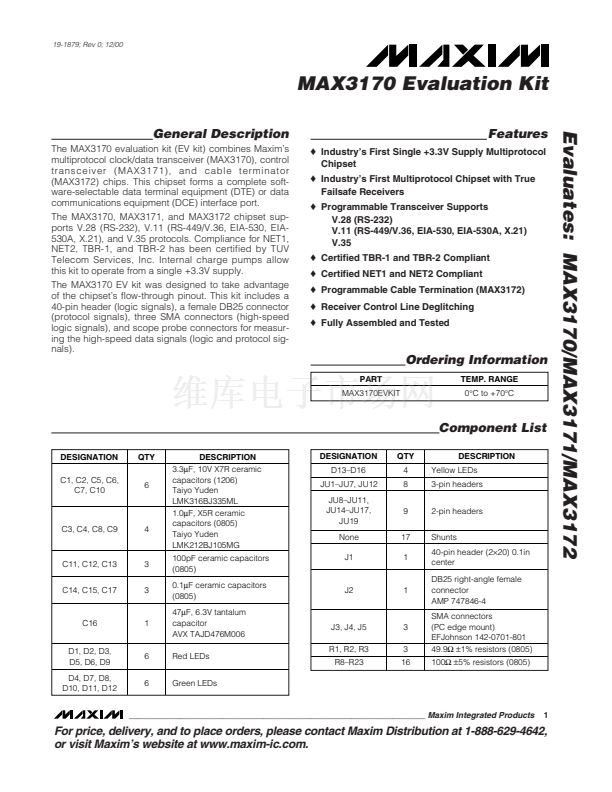

19-1879; Rev 0; 12/00
MAX3170 Evaluation Kit
General Description
The MAX3170 evaluation kit (EV kit) combines Maxim鈥檚
multiprotocol clock/data transceiver (MAX3170), control
transceiver (MAX3171), and cable terminator
(MAX3172) chips. This chipset forms a complete soft-
ware-selectable data terminal equipment (DTE) or data
communications equipment (DCE) interface port.
The MAX3170, MAX3171, and MAX3172 chipset sup-
ports V.28 (RS-232), V.11 (RS-449/V.36, EIA-530, EIA-
530A, X.21), and V.35 protocols. Compliance for NET1,
NET2, TBR-1, and TBR-2 has been certified by TUV
Telecom Services, Inc. Internal charge pumps allow
this kit to operate from a single +3.3V supply.
The MAX3170 EV kit was designed to take advantage
of the chipset鈥檚 flow-through pinout. This kit includes a
40-pin header (logic signals), a female DB25 connector
(protocol signals), three SMA connectors (high-speed
logic signals), and scope probe connectors for measur-
ing the high-speed data signals (logic and protocol sig-
nals).
Features
o
Industry鈥檚 First Single +3.3V Supply Multiprotocol
Chipset
o
Industry鈥檚 First Multiprotocol Chipset with True
Failsafe Receivers
o
Programmable Transceiver Supports
V.28 (RS-232)
V.11 (RS-449/V.36, EIA-530, EIA-530A, X.21)
V.35
o
Certified TBR-1 and TBR-2 Compliant
o
Certified NET1 and NET2 Compliant
o
Programmable Cable Termination (MAX3172)
o
Receiver Control Line Deglitching
o
Fully Assembled and Tested
Evaluates: MAX3170/MAX3171/MAX3172
Ordering Information
PART
MAX3170EVKIT
TEMP. RANGE
0擄C to +70擄C
Component List
DESIGNATION
C1, C2, C5, C6,
C7, C10
QTY
6
DESCRIPTION
3.3碌F, 10V X7R ceramic
capacitors (1206)
Taiyo Yuden
LMK316BJ335ML
1.0碌F, X5R ceramic
capacitors (0805)
Taiyo Yuden
LMK212BJ105MG
100pF ceramic capacitors
(0805)
0.1碌F ceramic capacitors
(0805)
47碌F, 6.3V tantalum
capacitor
AVX TAJD476M006
Red LEDs
Green LEDs
DESIGNATION
D13鈥揇16
JU1鈥揓U7, JU12
JU8鈥揓U11,
JU14鈥揓U17,
JU19
None
J1
QTY
4
8
9
17
1
DESCRIPTION
Yellow LEDs
3-pin headers
2-pin headers
Shunts
40-pin header (2脳20) 0.1in
center
DB25 right-angle female
connector
AMP 747846-4
SMA connectors
(PC edge mount)
EFJohnson 142-0701-801
49.9鈩?/div>
鹵1%
resistors (0805)
100鈩?/div>
鹵5%
resistors (0805)
C3, C4, C8, C9
4
C11, C12, C13
C14, C15, C17
3
3
J2
1
C16
D1, D2, D3,
D5, D6, D9
D4, D7, D8,
D10, D11, D12
1
J3, J4, J5
R1, R2, R3
R8鈥揜23
3
3
16
6
6
________________________________________________________________
Maxim Integrated Products
1
For price, delivery, and to place orders, please contact Maxim Distribution at 1-888-629-4642,
or visit Maxim鈥檚 website at www.maxim-ic.com.
