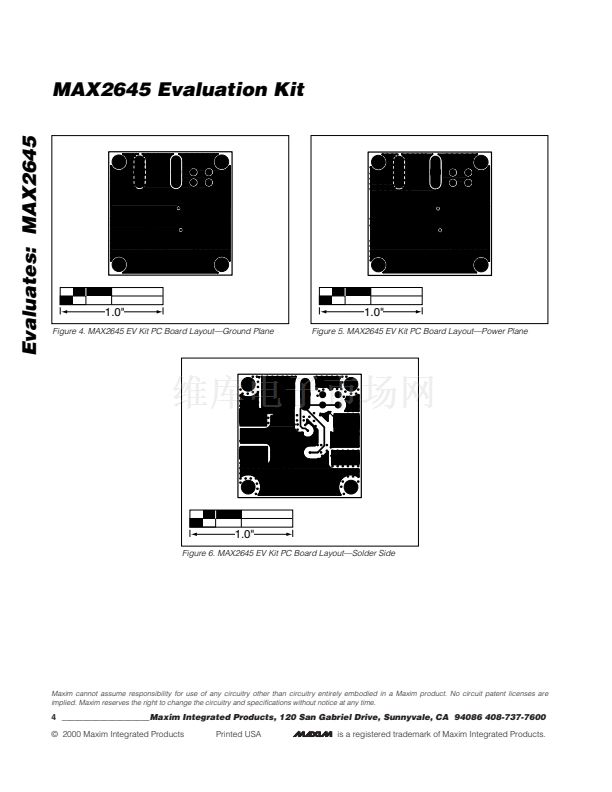

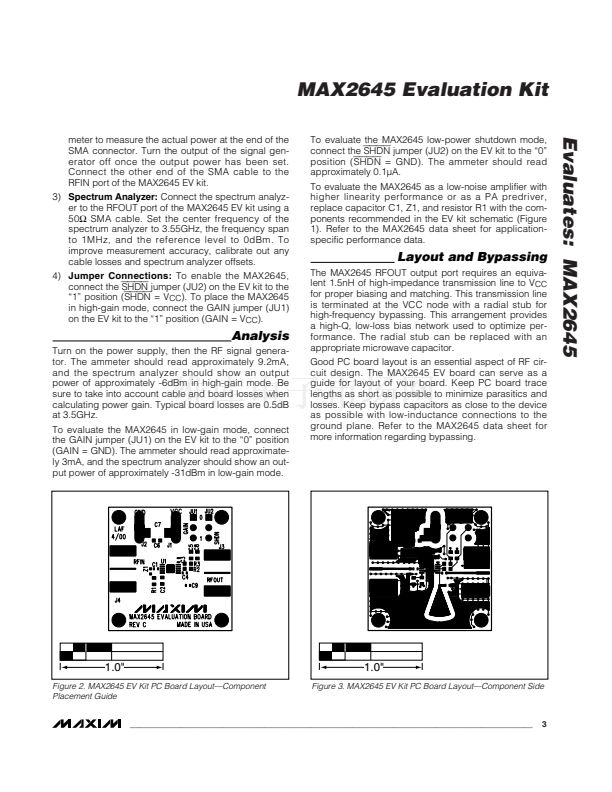

MAX2645 Evaluation Kit
General Description
The MAX2645 evaluation kit (EV kit) simplifies evalua-
tion of the MAX2645 3.4GHz to 3.8GHz low-noise
amplifier/PA predriver. The EV kit is fully assembled
and tested, allowing simple evaluation of all device
functions. All RF signal ports use SMA connectors, pro-
viding a convenient interface to RF test equipment.
The MAX2645 is a versatile, high-performance, low-
noise amplifier with adjustable IP3. These features allow
the MAX2645 to be used in a variety of applications,
from a low-noise amplifier to a PA predriver. As assem-
bled, the MAX2645 EV kit is configured for lowest noise
figure performance (NF = 2.3dB, IIP3 = +4dBm). A few
minor component changes configure the device as a
low-noise amplifier with higher linearity and slightly
degraded noise figure performance (NF = 2.6dB, IIP3 =
+10dBm) or as a PA predriver with high output P1dB
performance (output P1dB = +12dBm). Refer to the
MAX2645 data sheet for application-specific perfor-
mance data.
o
Easy Evaluation of the MAX2645
o
All Critical Peripheral Components Included
o
SMA Input and Output Connectors
o
RF Ports Matched to 50鈩?at 3.55GHz
o
Fully Assembled and Tested
Features
Evaluates: MAX2645
Ordering Information
PART
MAX2645EVKIT
*Exposed paddle
TEMP. RANGE
-40擄C to +85擄C
IC PACKAGE
10 碌MAX-EP*
Component Suppliers
SUPPLIER
AVX
EFJohnson
Kamaya
Murata
Taiyo Yuden
Toko
PHONE
FAX
WEB
Avxcorp.com
843-448-9411 843-448-1943
402-474-4800 402-474-4858 Efjohnson.com
219-489-1533 219-489-2261 Kamaya.com
800-831-9172 814-238-0490
800-348-2496 847-925-0899
800-PIK-TOKO 708-699-1194
Murata.com
T-Yuden.com
Tokoam.com

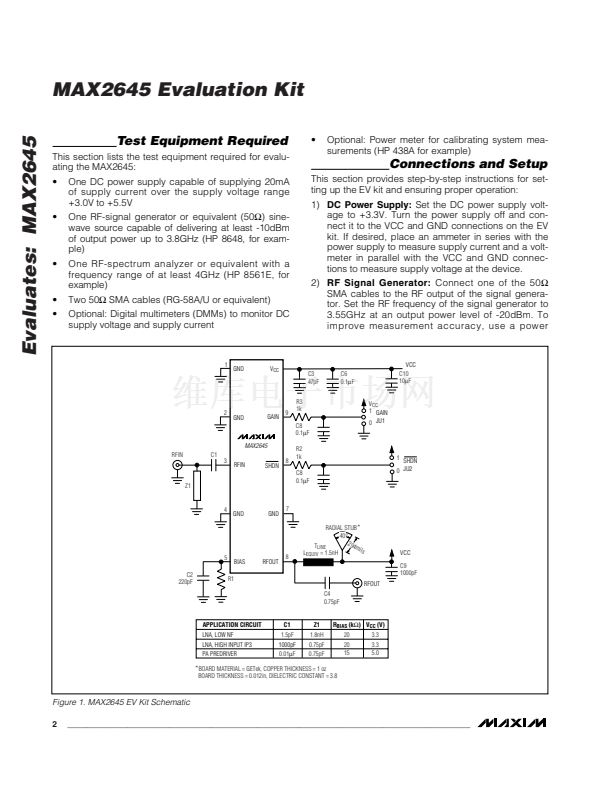

Component List
DESIGNATION QTY
C1
C2
C3
C4
C5, C6, C8
C7
C9
Z1
1
1
1
1
3
1
1
1
DESCRIPTION
1.5pF
鹵0.1p
F ceramic capacitor (0402)
Murata GRM36COG1R5B050
220pF 鹵10% ceramic capacitor (0402)
Murata GRM36X7R221K050
47pF 鹵5% ceramic capacitor (0402)
Murata GRM36COG470J050
0.75pF
鹵0.1pF
ceramic capacitor
(0402) Murata GRM36COGR75B050
0.1碌F 鹵10% ceramic capacitors
(0603) Murata GRM39X7R104K016
10碌F, 16V tantalum capacitor
AVX TAJC106K016
1000pF 鹵10% ceramic capacitor
(0402) Murata GRM36X7R102K050
1.8nH inductor
Toko LL1005-FH1N8S
DESIGNATION QTY
R1
R2, R3
JU1, JU2
None
J1, J2
J3, J4
U1
None
None
None
1
2
2
2
2
2
1
1
1
1
DESCRIPTION
20k鈩?鹵1% resistor (0603)
1k鈩?鹵5% resistors (0603)
3-pin headers
Shunts (JU1, JU2)
Test points (VCC, GND)
SMA connectors (edge mount)
EFJohnson 142-0701-801
MAX2645EUB
MAX2645 PC board (GETek)
MAX2645 data sheet
MAX2645 EV kit data sheet
