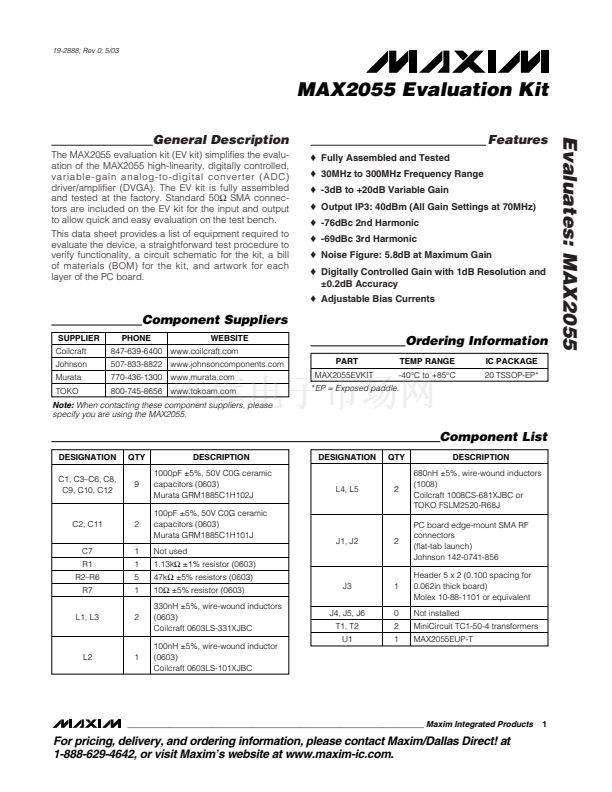

19-2888; Rev 0; 5/03
MAX2055 Evaluation Kit
General Description
The MAX2055 evaluation kit (EV kit) simplifies the evalu-
ation of the MAX2055 high-linearity, digitally controlled,
variable-gain analog-to-digital converter (ADC)
driver/amplifier (DVGA). The EV kit is fully assembled
and tested at the factory. Standard 50鈩?SMA connec-
tors are included on the EV kit for the input and output
to allow quick and easy evaluation on the test bench.

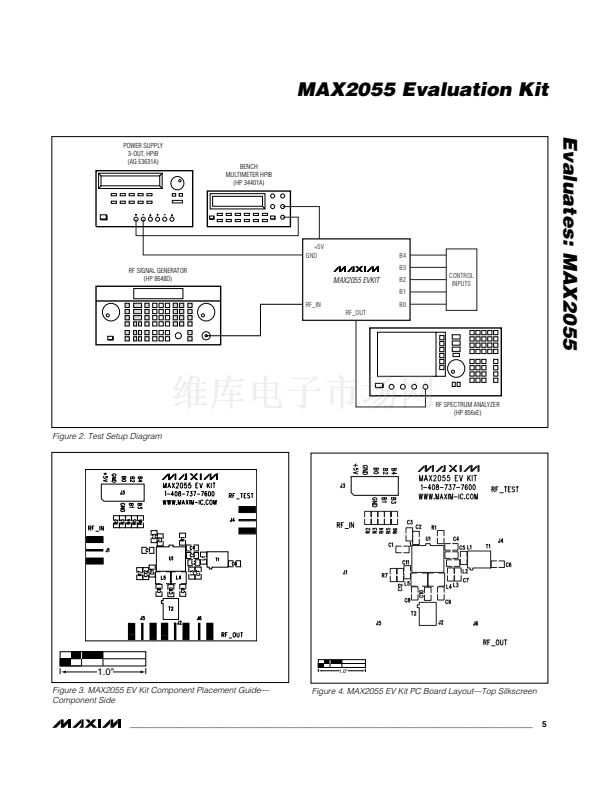

This data sheet provides a list of equipment required to
evaluate the device, a straightforward test procedure to

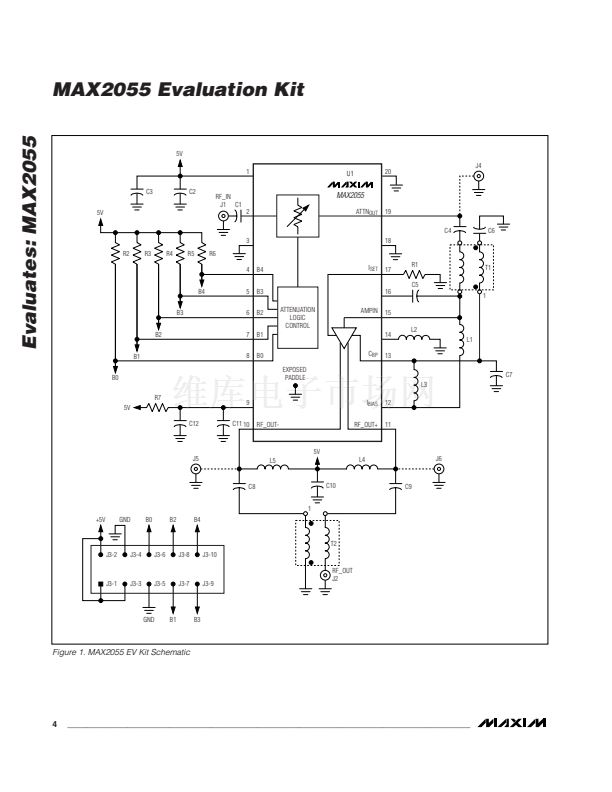

verify functionality, a circuit schematic for the kit, a bill

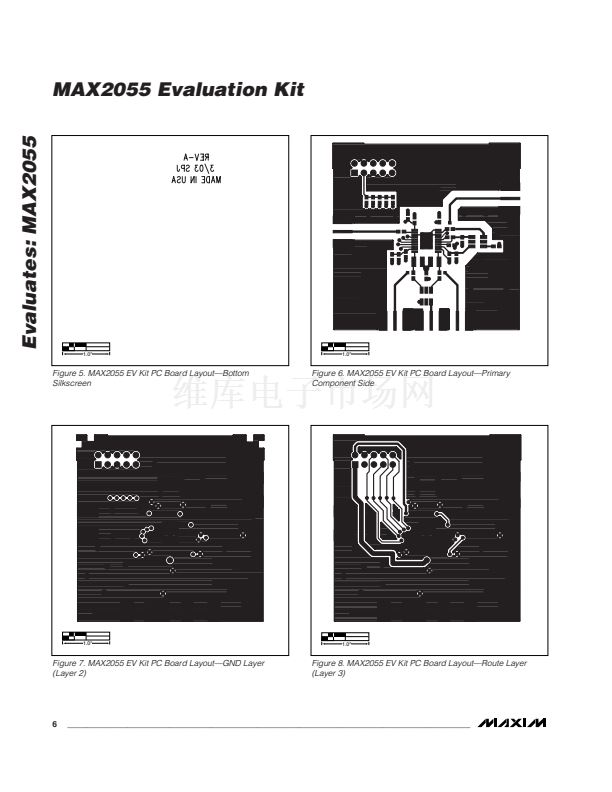

of materials (BOM) for the kit, and artwork for each
layer of the PC board.
o
Fully Assembled and Tested
o
30MHz to 300MHz Frequency Range
o
-3dB to +20dB Variable Gain
o
Output IP3: 40dBm (All Gain Settings at 70MHz)
o
-76dBc 2nd Harmonic
o
-69dBc 3rd Harmonic
o
Noise Figure: 5.8dB at Maximum Gain
o
Digitally Controlled Gain with 1dB Resolution and
鹵0.2dB Accuracy
o
Adjustable Bias Currents
Features
Evaluates: MAX2055
Component Suppliers
SUPPLIER
Coilcraft
Johnson
Murata
TOKO
PHONE
WEBSITE
PART
MAX2055EVKIT
Ordering Information
TEMP RANGE
-40擄C to +85擄C
IC PACKAGE
20 TSSOP-EP*
847-639-6400 www.coilcraft.com
507-833-8822 www.johnsoncomponents.com
770-436-1300 www.murata.com
800-745-8656 www.tokoam.com
*EP
= Exposed paddle.
Note:
When contacting these component suppliers, please
specify you are using the MAX2055.
Component List
DESIGNATION
C1, C3鈥揅6, C8,
C9, C10, C12
QTY
9
DESCRIPTION
1000pF 鹵5%, 50V C0G ceramic
capacitors (0603)
Murata GRM1885C1H102J
100pF 鹵5%, 50V C0G ceramic
capacitors (0603)
Murata GRM1885C1H101J
Not used
1.13k鈩?鹵1% resistor (0603)
47k鈩?鹵5% resistors (0603)
10鈩?鹵5% resistor (0603)
330nH 鹵5%, wire-wound inductors
(0603)
Coilcraft 0603LS-331XJBC
100nH 鹵5%, wire-wound inductor
(0603)
Coilcraft 0603LS-101XJBC
J3
J4, J5, J6
T1, T2
U1
1
0
2
1
DESIGNATION
QTY
DESCRIPTION
680nH 鹵5%, wire-wound inductors
(1008)
Coilcraft 1008CS-681XJBC or
TOKO FSLM2520-R68J
PC board edge-mount SMA RF
connectors
(flat-tab launch)
Johnson 142-0741-856
Header 5 x 2 (0.100 spacing for
0.062in thick board)
Molex 10-88-1101 or equivalent
Not installed
MiniCircuit TC1-50-4 transformers
MAX2055EUP-T
L4, L5
2
C2, C11
C7
R1
R2鈥揜6
R7
L1, L3
2
1
1
5
1
2
J1, J2
2
L2
1
________________________________________________________________
Maxim Integrated Products
1
For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at
1-888-629-4642, or visit Maxim鈥檚 website at www.maxim-ic.com.
