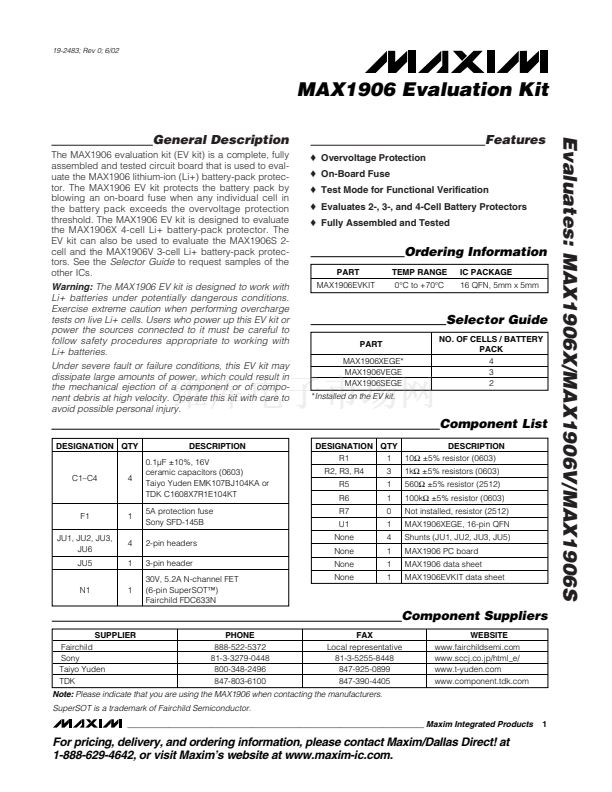

19-2483; Rev 0; 6/02
MAX1906 Evaluation Kit
General Description
The MAX1906 evaluation kit (EV kit) is a complete, fully
assembled and tested circuit board that is used to eval-
uate the MAX1906 lithium-ion (Li+) battery-pack protec-
tor. The MAX1906 EV kit protects the battery pack by
blowing an on-board fuse when any individual cell in
the battery pack exceeds the overvoltage protection
threshold. The MAX1906 EV kit is designed to evaluate
the MAX1906X 4-cell Li+ battery-pack protector. The
EV kit can also be used to evaluate the MAX1906S 2-
cell and the MAX1906V 3-cell Li+ battery-pack protec-
tors. See the
Selector Guide
to request samples of the
other ICs.
Warning:
The MAX1906 EV kit is designed to work with
Li+ batteries under potentially dangerous conditions.
Exercise extreme caution when performing overcharge
tests on live Li+ cells. Users who power up this EV kit or
power the sources connected to it must be careful to
follow safety procedures appropriate to working with
Li+ batteries.
Under severe fault or failure conditions, this EV kit may
dissipate large amounts of power, which could result in
the mechanical ejection of a component or of compo-
nent debris at high velocity. Operate this kit with care to
avoid possible personal injury.
o
Overvoltage Protection
o
On-Board Fuse
o
Test Mode for Functional Verification
o
Evaluates 2-, 3-, and 4-Cell Battery Protectors
o
Fully Assembled and Tested
Features
Evaluates: MAX1906X/MAX1906V/MAX1906S
Ordering Information
PART
MAX1906EVKIT
TEMP RANGE
0擄C to +70擄C
IC PACKAGE
16 QFN, 5mm x 5mm
Selector Guide
PART
MAX1906XEGE*
MAX1906VEGE
MAX1906SEGE
NO. OF CELLS / BATTERY
PACK
4
3
2
*Installed
on the EV kit.
Component List
DESIGNATION QTY
DESCRIPTION
0.1碌F 鹵10%, 16V
ceramic capacitors (0603)
Taiyo Yuden EMK107BJ104KA or
TDK C1608X7R1E104KT
5A protection fuse
Sony SFD-145B
2-pin headers
3-pin header
30V, 5.2A N-channel FET
(6-pin SuperSOT鈩?
Fairchild FDC633N
DESIGNATION QTY
DESCRIPTION
R1
1
10鈩?鹵5% resistor (0603)
R2, R3, R4
R5
R6
R7
U1
None
None
None
None
3
1
1
0
1
4
1
1
1
1k鈩?鹵5% resistors (0603)
560鈩?鹵5% resistor (2512)
100k鈩?鹵5% resistor (0603)
Not installed, resistor (2512)
MAX1906XEGE, 16-pin QFN
Shunts (JU1, JU2, JU3, JU5)
MAX1906 PC board
MAX1906 data sheet
MAX1906EVKIT data sheet
C1鈥揅4
4
F1
JU1, JU2, JU3,
JU6
JU5
N1
1
4
1
1
Component Suppliers
SUPPLIER
Fairchild
Sony
Taiyo Yuden
TDK
PHONE
888-522-5372
81-3-3279-0448
800-348-2496
847-803-6100
FAX
Local representative
81-3-5255-8448
847-925-0899
847-390-4405
WEBSITE
www.fairchildsemi.com
www.sccj.co.jp/html_e/
www.t-yuden.com
www.component.tdk.com
Note:
Please indicate that you are using the MAX1906 when contacting the manufacturers.
SuperSOT is a trademark of Fairchild Semiconductor.
________________________________________________________________
Maxim Integrated Products
1
For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at
1-888-629-4642, or visit Maxim鈥檚 website at www.maxim-ic.com.
