1.5to 7.0V
鈥?Sudden change in power supply has minimal effect on the ICs
鈥?Wide application range
鈥?Extra small 3-pin package (3-pin SOP)
鈥?Built-in long delay time
APPLICATION
鈥?Reset pulse generation for almost all logic circuits
鈥?Battery checking, level detecting, waveform shaping circuits
鈥?Delayed waveform generator
鈥?Switching circuit to a back-up power supply
鈥?DC/DC converter
鈥?Over voltage protection circuit
RECOMMENDED OPERATING CONDITION
鈥?Supply voltage range
鈥︹€︹€︹€?/div>
1.5to 7.0V

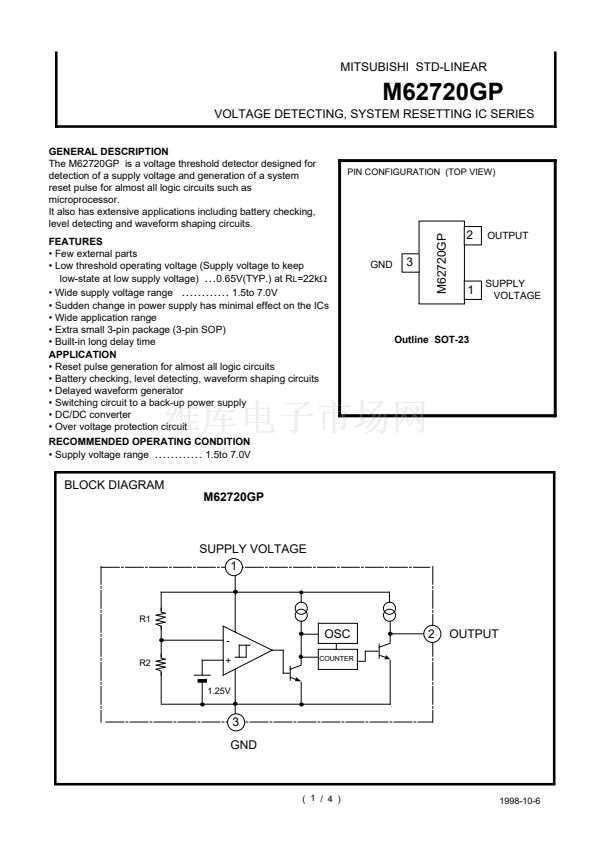

PIN CONFIGURATION (TOP VIEW)
GND
3
M62720GP
2
OUTPUT
1
SUPPLY
VOLTAGE
Outline SOT-23
BLOCK DIAGRAM
M62720GP
SUPPLY VOLTAGE
1
R1
-
R2
OSC
COUNTER
2
OUTPUT
+
1.25V
3
1
GND
( 1 / 4 )
1998-10-6
