M3004LD Datasheet

  • M3004LD

  • REMOTE CONTROL TRANSMITTER

  • 10頁

  • STMICROELECTRONICS   STMICROELECTRONICS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

M3004LAB1
M3004LD
REMOTE CONTROL TRANSMITTER
.
.
.
.
.
.
.
.
.
.
FLASHED OR MODULATED TRANSMISSION
7 SUB-SYSTEM ADDRESSES
UP TO 64 COMMANDS PER SUB-SYSTEM
ADDRESS
HIGH-CURRENT REMOTE OUTPUT AT
V
DD
= 6V (鈥?I
OH
= 80mA)
LOW NUMBER OF ADDITIONAL COMPO-
NENTS
KEY RELEASE DETECTION BY TOGGLE
BITS
VERY LOW STAND-BY CURRENT (< 2碌A)
OPERATIONAL CURRENT < 1mA AT 6V
SUPPLY
SUPPLY VOLTAGE RANGE 2 TO 6.5V
CERAMIC RESONATOR CONTROLLED
FREQUENCY (typ. 450kHz)
DIP20
(Plastic Package)
ORDER CODE :
M3004LAB1
SO20
(Plastic Package)
ORDER CODE :
M3004LD
PIN CONNECTIONS
REMO
1
2
3
4
5
6
7
8
9
10
20
19
DESCRIPTION
The M3004LAB1/M3004LD transmitter IC are de-
signed for infrared remote control systems. It has
a total of 448 commands which are divided into 7
sub-system groups with 64 commands each. The
sub-system code may be selected by a press but-
ton, a slider switch or hard wired.
The M3004LAB1/M3004LD generate the pattern
for driving the output stage. These patterns are
pulse distance coded. The pulses are infrared
flashes or modulated. The transmission mode is
defined in conjunction with the sub-system ad-
dress. Modulated pulses allow receivers with nar-
row-band preamplifiers for improved noise
rejection to be used. Flashed pulses require a
wide-band preamplifier within the receiver.
June 1992
V
DD
DRV 6N
DRV 6N
DRV 6N
DRV 6N
DRV 6N
DRV 6N
DRV 6N
OSC OUT
OSC IN
3004L-01.EPS
SEN 6N
SEN 5N
SEN 4N
SEN 3N
SEN 2N
SEN 1N
SEN 0N
ADRM
V
SS
18
17
16
15
14
13
12
11

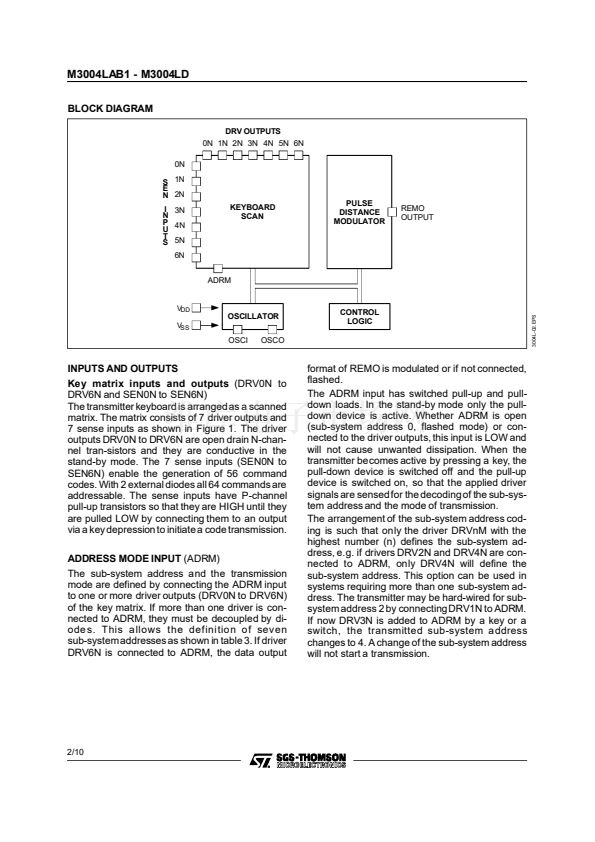

1/10

M3004LD 產品屬性

  • STMicroelectronics

  • 通信集成電路 - 若干

  • Remote Control Transmitter

  • SO-20

  • 6.5 V

  • 2 V

  • 1 mA

  • + 70 C

  • - 20 C

  • Tube

  • SMD/SMT

  • 2.5 V, 3.3 V, 5 V

  • 40

  • Analog
