LXT1000 Datasheet

  • LXT1000

  • LAN TRANSCEIVER|SINGLE|HYBRID|BGA|492PIN|PLASTIC

  • 104頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

LXT1000
Gigabit Ethernet Transceiver
Datasheet
The LXT1000 transceiver supports Gigabit Ethernet over copper twisted-pair connections and
supplies all of the physical layer (PHY) functions needed to interface a Gigabit Ethernet
controller to a 100-meter CAT5 twisted-pair connection. The device incorporates Intel鈥檚 high-
efficiency Optimal Signal Processing (OSP
鈩?/div>
) technology, combining the best properties of
digital and analog signal processing to produce a truly optimal device.

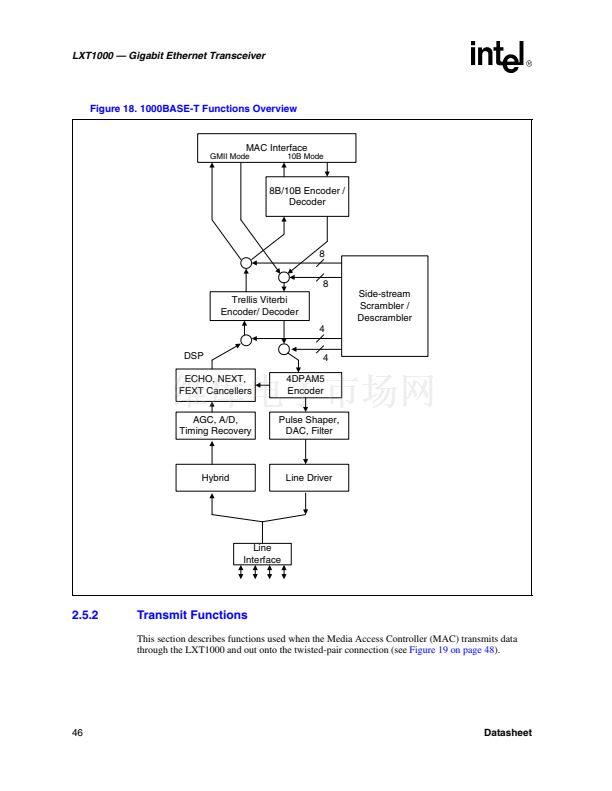

Featuring a GMII interface, 4DPAM5 encoder, scrambler, and 8B/10B encoder, Viterbi Decision
Feedback Equalizer (DFE), DSP filtering for echo cancellation, equalization, and near- and far-
end crosstalk elimination, as well as gain control and timing recovery, the LXT1000 also
includes an internal hybrid circuit combining the transmit and receive paths on each pair,
allowing simple 1:1 turns ratio magnetics. LXT1000 complies with applicable portions of 802.3.
Product Features
s
s
s
s
s
IEEE 802.3ab compliant.

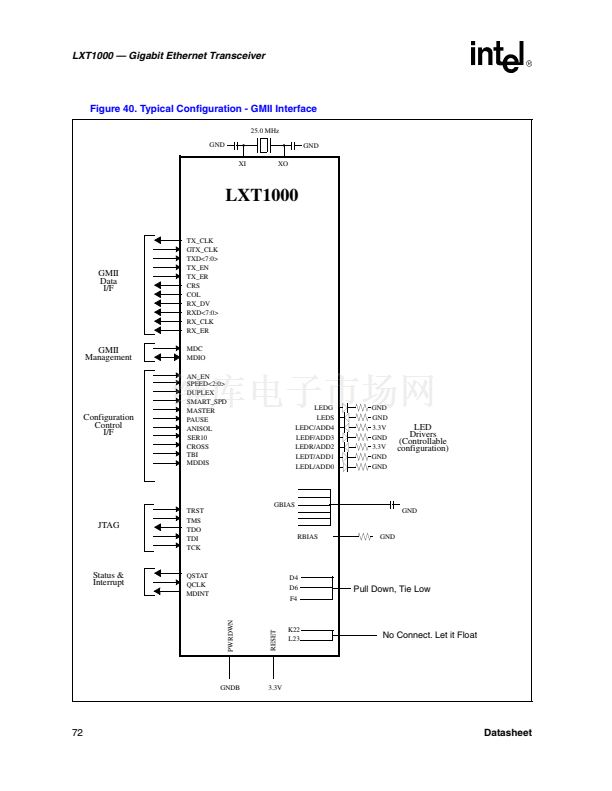

GMII and Ten-Bit Interface (TBI) MAC
interface configurations.
Integrated 10/100 transceiver with fallback
support.
Provides 802.3ab auto-negotiation for
resolution of Master/Slave and flow-control

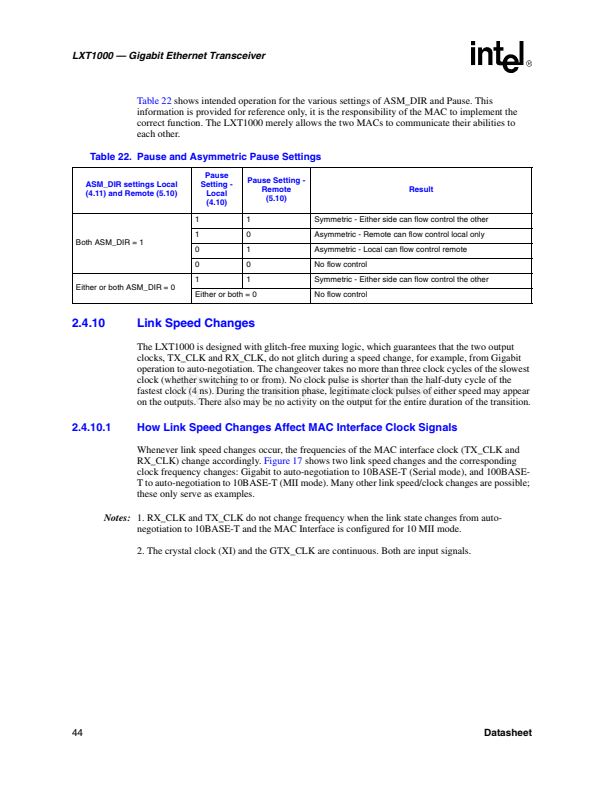

(802.3x).

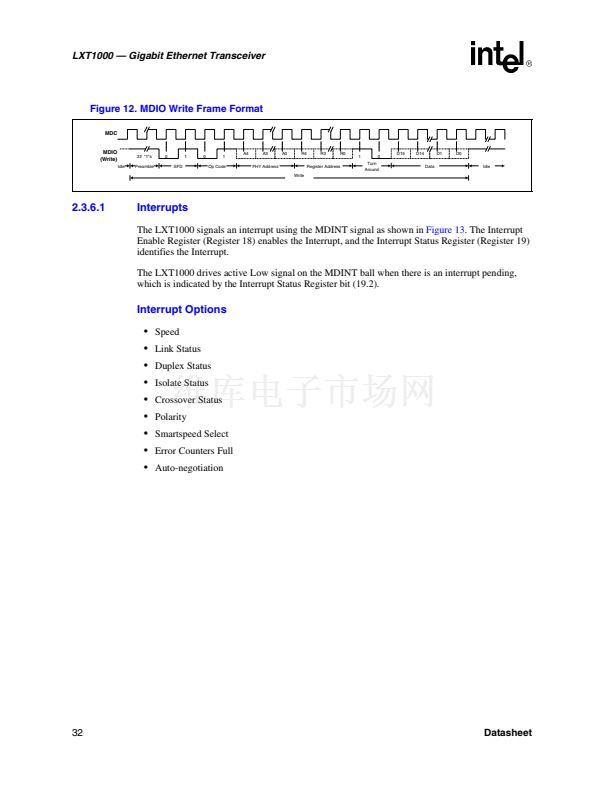

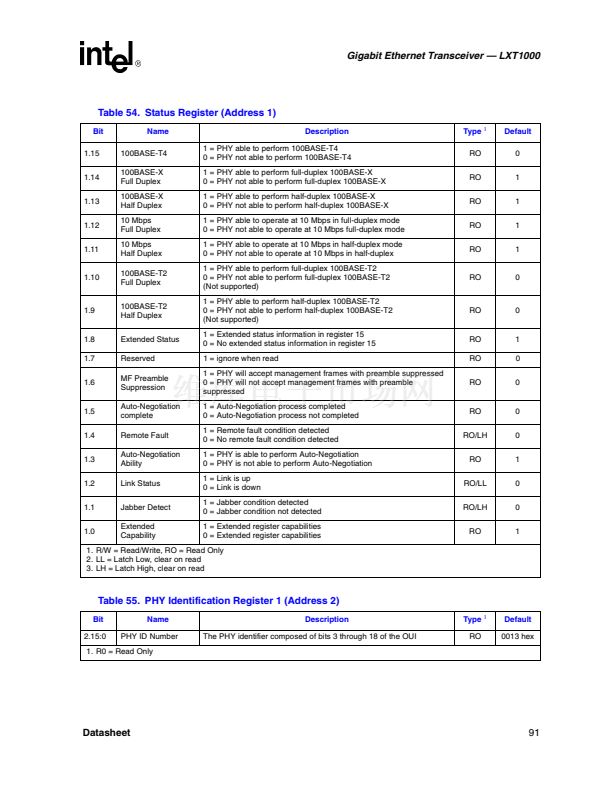

MII management, QuickStatus, 7 LEDs,
Interrupt.
s
s
s
s
s
s
Supports 10 KB Jumbo Frames (full
duplex).
Supports carrier extension and packet
bursting (half duplex).
JTAG support.

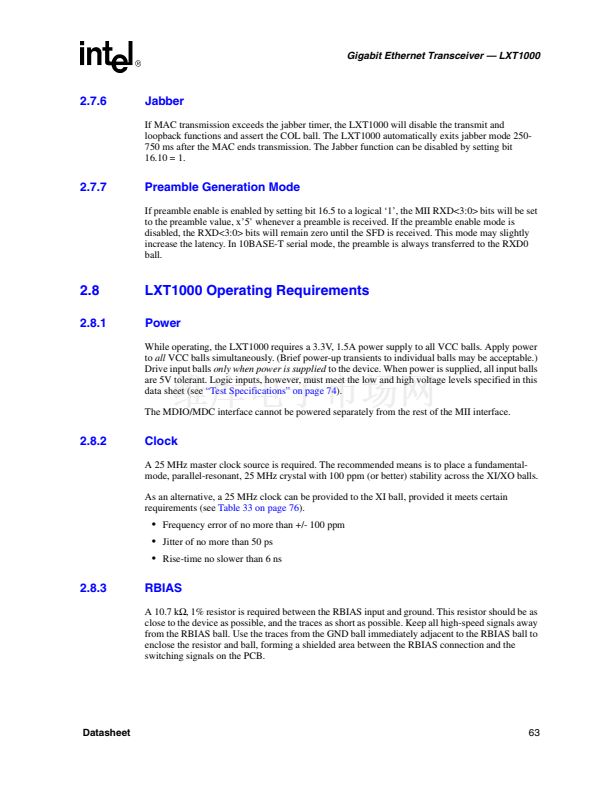

3.3V power supply.
Packaging: 492-Lead PBGA.
Commercial Temperature Range, 0-55擄 C.
Applications
s

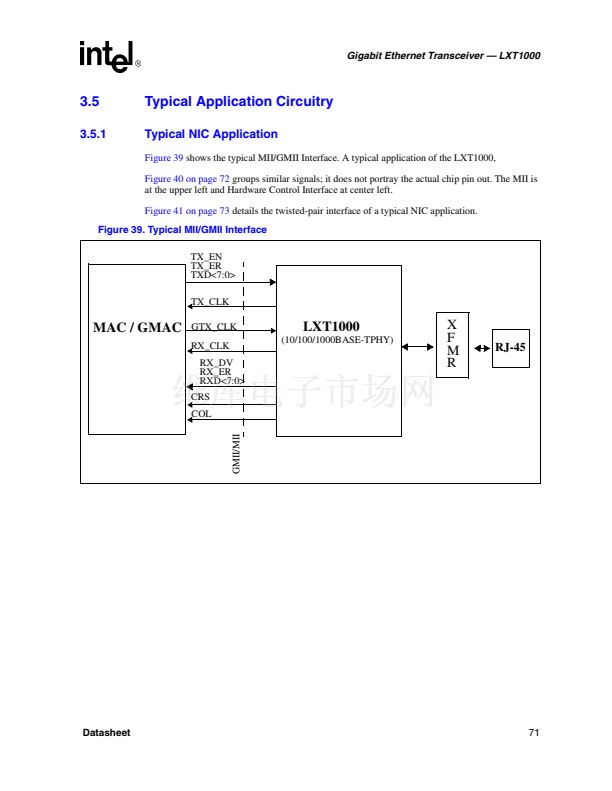

NICs
s
Switches
Related Documents
s
LXT1000 Gigabit Ethernet Transceiver Design and Layout Guide
As of January 15, 2001, this document replaces the Level One document
LXT1000 Gigabit Ethernet Transceiver
Data Sheet.
Order Number: 249276-001
January 2001
