LX8211-00ISET Datasheet

  • LX8211-00ISET

  • Analog IC

  • 9頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

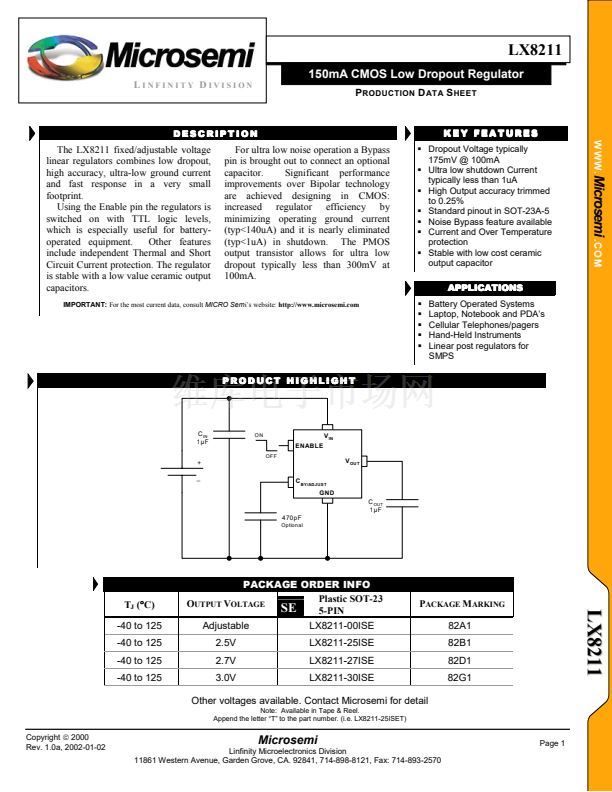

LX8211
150mA CMOS Low Dropout Regulator
L
INFINITY
D
IVISION
P
RODUCTION
D
ATA
S
HEET
DESCRIPTION
KEY FEATURES
W W W.
Microsemi
.COM
The LX8211 fixed/adjustable voltage
linear regulators combines low dropout,
high accuracy, ultra-low ground current
and fast response in a very small
footprint.
Using the Enable pin the regulators is
switched on with TTL logic levels,
which is especially useful for battery-
operated equipment.
Other features
include independent Thermal and Short
Circuit Current protection. The regulator
is stable with a low value ceramic output
capacitors.
For ultra low noise operation a Bypass
pin is brought out to connect an optional
capacitor.
Significant performance
improvements over Bipolar technology
are achieved designing in CMOS:
increased regulator efficiency by
minimizing operating ground current
(typ<140uA) and it is nearly eliminated
(typ<1uA) in shutdown. The PMOS
output transistor allows for ultra low
dropout typically less than 300mV at
100mA.
!
Dropout Voltage typically
175mV @ 100mA
!
Ultra low shutdown Current
typically less than 1uA
!
High Output accuracy trimmed
to 0.25%
!
Standard pinout in SOT-23A-5
!
Noise Bypass feature available
!
Current and Over Temperature
protection
!
Stable with low cost ceramic
output capacitor
APPLICATIONS
APPLICATIONS
!
!
!
!
!
Battery Operated Systems
Laptop, Notebook and PDA鈥檚
Cellular Telephones/pagers
Hand-Held Instruments
Linear post regulators for
SMPS
IMPORTANT:
For the most current data, consult
MICRO Semi鈥檚
website:
http://www.microsemi.com
PRODUCT HIGHLIGHT
C
IN
1碌F
ON
V
IN
ENABLE
OFF
+
爐
C
BY/ADJUST
GND
V
OUT
C
OUT
1碌F
470pF
Optional
T
J
(擄C)
擄
-40 to 125
-40 to 125
-40 to 125
-40 to 125
PACKAGE ORDER INFO
Plastic SOT-23
O
UTPUT
V
OLTAGE
SE
5-PIN
Adjustable
2.5V
2.7V
3.0V
LX8211-00ISE
LX8211-25ISE
LX8211-27ISE
LX8211-30ISE
P
ACKAGE
M
ARKING
LX8211
LX8211
82A1
82B1
82D1
82G1
Other voltages available. Contact Microsemi for detail
Note: Available in Tape & Reel.
Append the letter 鈥淭鈥?to the part number. (i.e. LX8211-25ISET)
Copyright
錚?/div>
2000
Rev. 1.0a, 2002-01-02
Microsemi
Linfinity Microelectronics Division
11861 Western Avenue, Garden Grove, CA. 92841, 714-898-8121, Fax: 714-893-2570
Page 1
