LTM10C348S Datasheet

  • LTM10C348S

  • LIQUID CRYSTAL DISPLAY DIVISION PRODUCT INFORMATION

  • 10頁

  • TOSHIBA

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

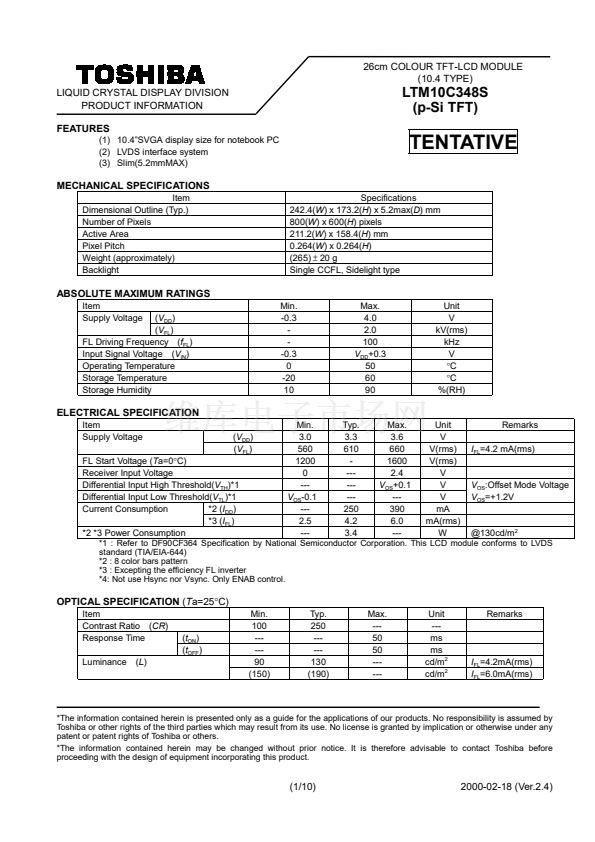

26cm COLOUR TFT-LCD MODULE
(10.4 TYPE)
LIQUID CRYSTAL DISPLAY DIVISION
PRODUCT INFORMATION
FEATURES
(1) 10.4鈥漇VGA display size for notebook PC
(2) LVDS interface system
(3) Slim(5.2mmMAX)
LTM10C348S
(p-Si TFT)
TENTATIVE
Specifications
242.4(W) x 173.2(H) x 5.2max(D) mm
800(W) x 600(H) pixels
211.2(W) x 158.4(H) mm
0.264(W) x 0.264(H)
(265)鹵20 g
Single CCFL, Sidelight type
MECHANICAL SPECIFICATIONS
Item
Dimensional Outline (Typ.)
Number of Pixels
Active Area
Pixel Pitch
Weight (approximately)
Backlight
ABSOLUTE MAXIMUM RATINGS
Item
Supply Voltage
(V
DD
)
(V
FL
)
FL Driving Frequency (f
FL
)
Input Signal Voltage (V
IN
)
Operating Temperature
Storage Temperature
Storage Humidity
Min.
-0.3
-
-
-0.3
0
-20
10
Max.
4.0
2.0
100
V
DD
+0.3
50
60
90
Unit
V
kV(rms)
kHz
V
擄C
擄C
%(RH)
ELECTRICAL SPECIFICATION
Item
Supply Voltage
(V
DD
)
(V
FL
)
Min.
3.0
560
1200
0
---
V
OS
-0.1
---
2.5
---
Typ.
3.3
610
-
---
---
---
250
4.2
3.4
Max.
3.6
660
1600
2.4
V
OS
+0.1
---
390
6.0
---
Unit
V
V(rms)
V(rms)
V
V
V
mA
mA(rms)
W
Remarks
I
FL
=4.2 mA(rms)
FL Start Voltage (Ta=0擄C)
Receiver Input Voltage
Differential Input High Threshold(V
TH
)*1
Differential Input Low Threshold(V
TL
)*1
Current Consumption
*2 (I
DD
)
*3 (I
FL
)
*2 *3 Power Consumption
V
OS
:Offset Mode Voltage
V
OS
=+1.2V
@130cd/m
2
*1 : Refer to DF90CF364 Specification by National Semiconductor Corporation. This LCD module conforms to LVDS
standard (TIA/EIA-644)
*2 : 8 color bars pattern
*3 : Excepting the efficiency FL inverter
*4: Not use Hsync nor Vsync. Only ENAB control.
OPTICAL SPECIFICATION
(Ta=25擄C)
Item
Contrast Ratio (CR)
Response Time
Luminance
(L)
Min.
100
---
---
90
(150)
Typ.
250
---
---
130
(190)
Max.
---
50
50
---
---
Unit
---
ms
ms
cd/m
2
cd/m
2
Remarks
(t
ON
)
(t
OFF
)
I
FL
=4.2mA(rms)
I
FL
=6.0mA(rms)
*The information contained herein is presented only as a guide for the applications of our products. No responsibility is assumed by
Toshiba or other rights of the third parties which may result from its use. No license is granted by implication or otherwise under any
patent or patent rights of Toshiba or others.
*The information contained herein may be changed without prior notice. It is therefore advisable to contact Toshiba before
proceeding with the design of equipment incorporating this product.
(1/10)
2000-02-18 (Ver.2.4)
