Low Supply Voltage . . .
Supply Current . . . 500
CC鈥?/div>
IN1
OUT1
ON/OFF
IN2
OUT2
GND
1
2
3
4
5
6
7
14
13
12
11
10
9
8
V
CC+
STROBE
IN4
OUT4
NC
IN3
OUT3
NC 鈥?No internal connection
description
The LT1030C is an EIA/TIA-232-F line driver that operates over a
鹵5-V
to
鹵15-V
supply-voltage range on low
supply current. The device can be shut down to zero supply current. Current limiting fully protects the outputs
from externally applied voltages of
鹵30
V. Since the output swings to within 200 mV of the positive supply and
to within 1 V of the negative supply, supply-voltage requirements are minimized.
A major advantage of the LT1030C is the high-impedance output state when the device is off or powered down.
This feature allows several different drivers on the same bus.
The device can be used as an EIA/TIA-232-F driver, micropower interface, or level translator, among others.
The LT1030C is characterized for operation from 0擄C to 70擄C.
AVAILABLE OPTIONS
PACKAGE
SMALL OUTLINE
(D)
LT1030CD
PLASTIC DIP
(N)
LT1030CN
The D package is available taped and reeled.
Add the suffix R to the device type (i.e.,
LT1030CDR).
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
Copyright
漏
1998, Texas Instruments Incorporated
POST OFFICE BOX 655303
鈥?/div>
DALLAS, TEXAS 75265
1

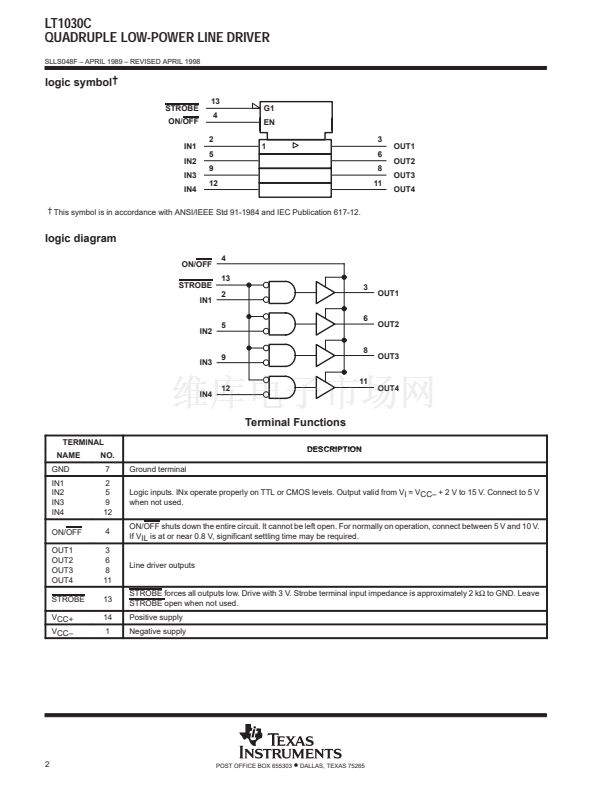

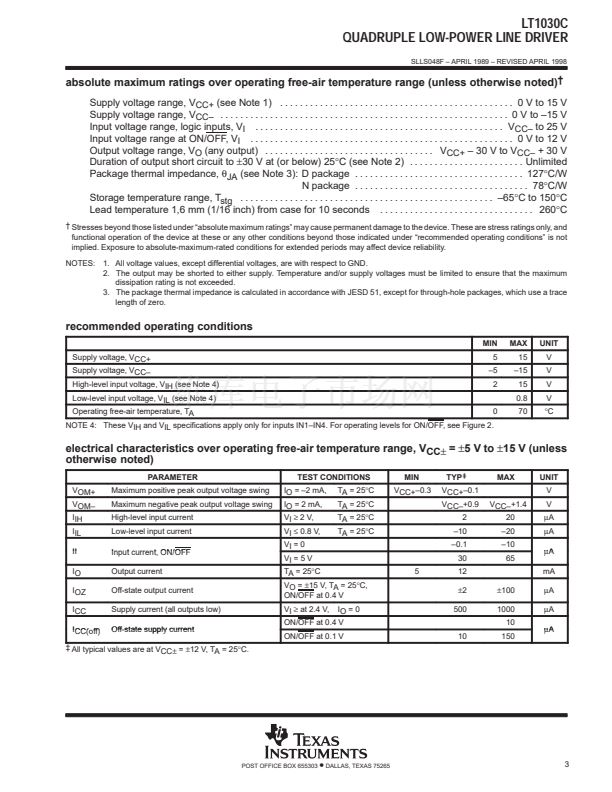

1
2
3
4
5
6
7
8
