鈩?/div>
LED
PART
NUMBER
MATERIAL
LT0323-41-SB96
AlGaInP
EMITTING
COLOR
GREENISH
YELLOW
CHIP
LENS
COLOR
W.C.
WAVELENGTH
TYP.
I
F
@20mA (nm)
位
p
位
d
FORWARD
VOLTAGE
@20mA(V)
TYP.
2.1
MAX.
2.4
LUMINOUS
INTENSITY
@20mA(mcd)
MIN.
150
TYP.
300
VIEW
ANGLE
2胃
1/2
胃
(deg)
25
573鹵5 571鹵5
鹵
鹵
(1) LENS
COLOR
(2)
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT
NOTICE.
ALL ABOVE COMPONENTS ARE CONSIDERED. DEVIATIONS
FROM STATED SPECIFICATIONS WILL REQUIRE A NEW PART
NUMBER BE ASSIGNED.
W.C鈥?.WATER CLEAR
(3)

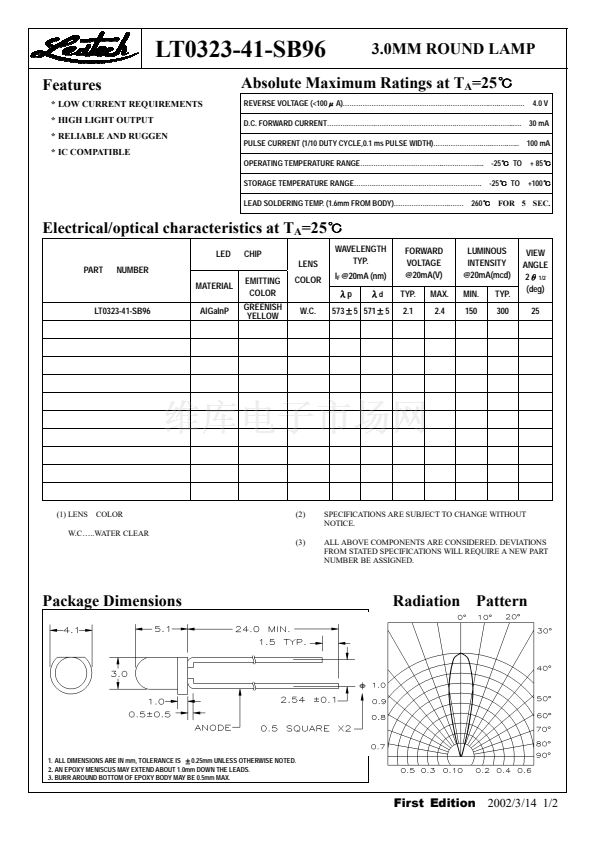

Package Dimensions
Radiation Pattern
1. ALL DIMENSIONS ARE IN mm, TOLERANCE IS
鹵
0.25mm UNLESS OTHERWISE NOTED.
2.
AN EPOXY MENISCUS MAY EXTEND ABOUT 1.0mm DOWN THE LEADS.
3.
BURR AROUND BOTTOM OF EPOXY BODY MAY BE 0.5mm MAX.
First Edition
2002/3/14 1/2
1
2
