LSIU80LVD
Ultra2 LVD SCSI Host Adapter
KEY APPLICATIONS
鈥?High-performance desktop PCs
and workstations
鈥?Intersystem connections:
server and workstation to RAID,
network management
鈥?Ultra2 and Ultra SCSI tape drives
in servers, workstations and
high-end desktops
The LSIU80LVD PCI-to-Ultra2 SCSI
host adapter offers a low cost LVD SCSI
connection for external storage ideal for
backup or disaster recovery applications.
IDEAL FOR DIRECT ATTACH STORAGE
As part of LSI Logic鈥檚 SCSI host adapter product family, the LSIU80LVD
PCI-Ultra2 SCSI host bus adapter is ideal for direct attach storage of tape and
optical drive/libraries to a workstation or server. The Ultra2 LVD connection
offers higher performance at 80 MBps, longer cable length of 12 meters and
higher reliability than Ultra SCSI at an affordable price. The LSIU80LVD
supports wide (16-bit) Ultra2, Ultra, and Fast SCSI devices.
System design flexibility is provided by the LSIU80LVD鈥檚 ability to auto-
matically switch from single-ended operation for legacy Fast/Ultra devices to
universal low voltage differential (LVD) operation when LVD enabled or
Ultra2 devices are connected. The LSIU80LVD HBA incorporates LSI Logic鈥檚
LVDlink
鈩?/div>
(Low Voltage Differential) technology for superior performance,
device connectivity and greater signal reliability. The LVDlink transceivers
provide the data reliability of differential signaling without the high cost of
high voltage differential (HVD) transceivers
FEATURES
鈥?High performance single
channel Ultra2 SCSI solution
鈥?Supports Ultra2 (80 MBps),
Ultra (40 MBps) and
Fast (20 MBps) SCSI
鈥?Support LVD or Single-Ended
(SE) SCSI devices
鈥?SureLINK
鈩?/div>
Domain Validation
technology ensures data integrity
鈥?Supports One-Button Disaster
Recovery for tape drives for
rapid data recovery
Host Bus:
32-bit PCI
SCSI Bus:
16-bit SE and LVD
SCSI Performance:
Ultra2 (80 MBps)
SCSI Connectors:
Internal: 68-pin HD
External: 68-pin HD
No. of SCSI Devices:
15
WARRANTY
For more than 15 years, LSI Logic host adapters have been providing high-
performance SCSI solutions to leading server, disk array and computer systems
worldwide. Each host adapter carries a powerful chip built in LSI Logic鈥檚 ISO
9001-certified fabrication facilities. Using only the highest quality components,
LSI Logic host adapters are assembled and tested in world-class facilities to
assure superior product reliability and performance. Due to LSI Logic鈥檚
stringent quality management programs, this host adapter carries a three-
year limited warranty.
Single-ended (SE)
Technology
Cable lengths (meters)
Device supported
Fast, Ultra2
3
Single-ended
LVD
Ultra2*
12 (devices) 25 point-to-point
LVD
*Backward compatible with Fast and Ultra single-ended SCSI devices.
L S I U 8 0 LV D O R D E R I N G I N F O R M AT I O N
LSIU80LVD
ISA/EISA bracket
1

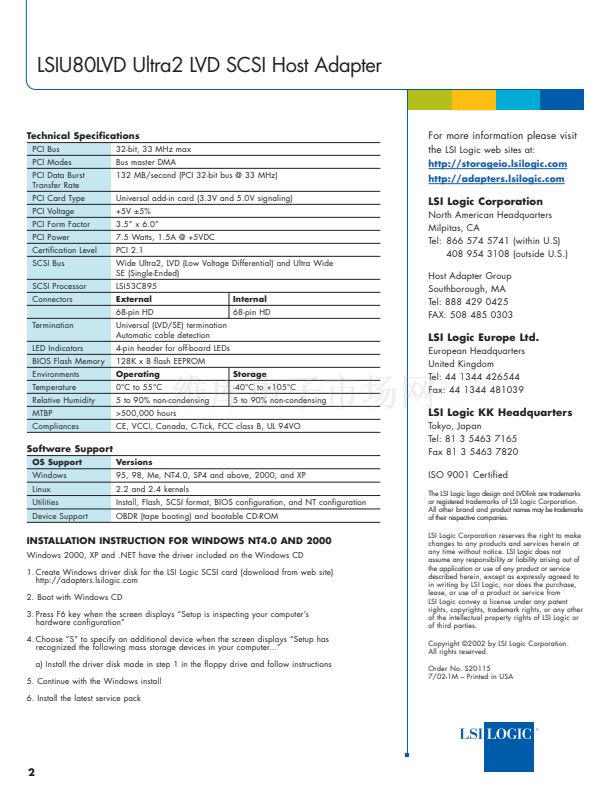

2
