Domain Validation
technology ensures data integrity
鈥?Supports One-Button Disaster
Recovery for tape drives for
rapid data recovery
Host Bus:
64-bit PCI
SCSI Bus:
16-bit LVD or Single-ended
SCSI Performance:
Ultra160 (160 MBps)
SCSI Connector Config:
Internal: 68-pin HD
External: 68-pin HD
Max No of SCSI Devices:
15

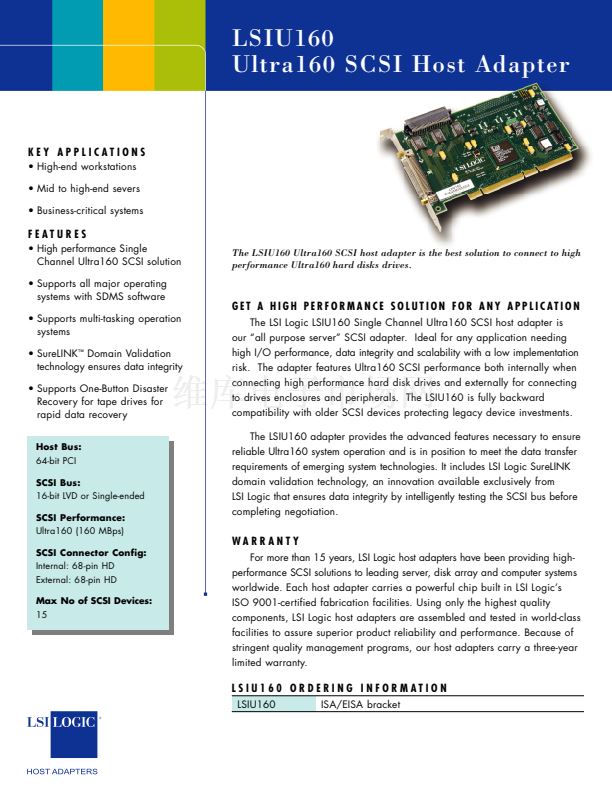

The LSIU160 Ultra160 SCSI host adapter is the best solution to connect to high
performance Ultra160 hard disks drives.
G E T A H I G H P E R F O R M A N C E S O L U T I O N F O R A N Y A P P L I C AT I O N
The LSI Logic LSIU160 Single Channel Ultra160 SCSI host adapter is
our 鈥渁ll purpose server鈥?SCSI adapter. Ideal for any application needing
high I/O performance, data integrity and scalability with a low implementation
risk. The adapter features Ultra160 SCSI performance both internally when
connecting high performance hard disk drives and externally for connecting
to drives enclosures and peripherals. The LSIU160 is fully backward
compatibility with older SCSI devices protecting legacy device investments.
The LSIU160 adapter provides the advanced features necessary to ensure
reliable Ultra160 system operation and is in position to meet the data transfer
requirements of emerging system technologies. It includes LSI Logic SureLINK
domain validation technology, an innovation available exclusively from
LSI Logic that ensures data integrity by intelligently testing the SCSI bus before
completing negotiation.
WARRANTY
For more than 15 years, LSI Logic host adapters have been providing high-
performance SCSI solutions to leading server, disk array and computer systems
worldwide. Each host adapter carries a powerful chip built in LSI Logic鈥檚
ISO 9001-certified fabrication facilities. Using only the highest quality
components, LSI Logic host adapters are assembled and tested in world-class
facilities to assure superior product reliability and performance. Because of
stringent quality management programs, our host adapters carry a three-year
limited warranty.
LSIU160 ORDERING INFORMATION
LSIU160
ISA/EISA bracket
1
2
