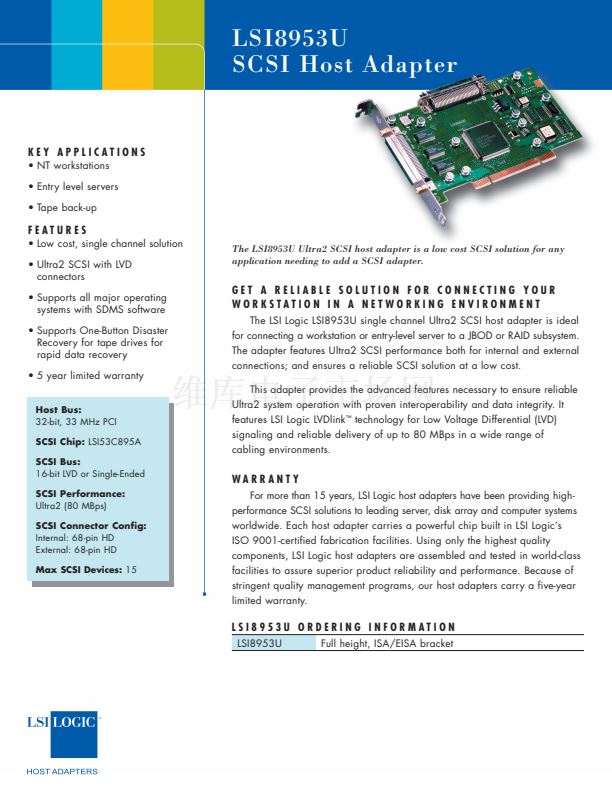

LSI8953U
SCSI Host Adapter
KEY APPLICATIONS
鈥?NT workstations
鈥?Entry level servers
鈥?Tape back-up
FEATURES
鈥?Low cost, single channel solution
鈥?Ultra2 SCSI with LVD
connectors
鈥?Supports all major operating
systems with SDMS software
鈥?Supports One-Button Disaster
Recovery for tape drives for
rapid data recovery
鈥?5 year limited warranty
Host Bus:
32-bit, 33 MHz PCI
SCSI Chip:
LSI53C895A
SCSI Bus:
16-bit LVD or Single-Ended
SCSI Performance:
Ultra2 (80 MBps)
SCSI Connector Config:
Internal: 68-pin HD
External: 68-pin HD
Max SCSI Devices:
15
The LSI8953U Ultra2 SCSI host adapter is a low cost SCSI solution for any
application needing to add a SCSI adapter.
GET A RELIABLE SOLUTION FOR CONNECTING YOUR
WORKSTATION IN A NETWORKING ENVIRONMENT
The LSI Logic LSI8953U single channel Ultra2 SCSI host adapter is ideal
for connecting a workstation or entry-level server to a JBOD or RAID subsystem.
The adapter features Ultra2 SCSI performance both for internal and external
connections; and ensures a reliable SCSI solution at a low cost.
This adapter provides the advanced features necessary to ensure reliable
Ultra2 system operation with proven interoperability and data integrity. It
features LSI Logic LVDlink
鈩?/div>
technology for Low Voltage Differential (LVD)
signaling and reliable delivery of up to 80 MBps in a wide range of
cabling environments.
WARRANTY
For more than 15 years, LSI Logic host adapters have been providing high-
performance SCSI solutions to leading server, disk array and computer systems
worldwide. Each host adapter carries a powerful chip built in LSI Logic鈥檚
ISO 9001-certified fabrication facilities. Using only the highest quality
components, LSI Logic host adapters are assembled and tested in world-class
facilities to assure superior product reliability and performance. Because of
stringent quality management programs, our host adapters carry a five-year
limited warranty.
LSI8953U ORDERING INFORMATION
LSI8953U
Full height, ISA/EISA bracket
