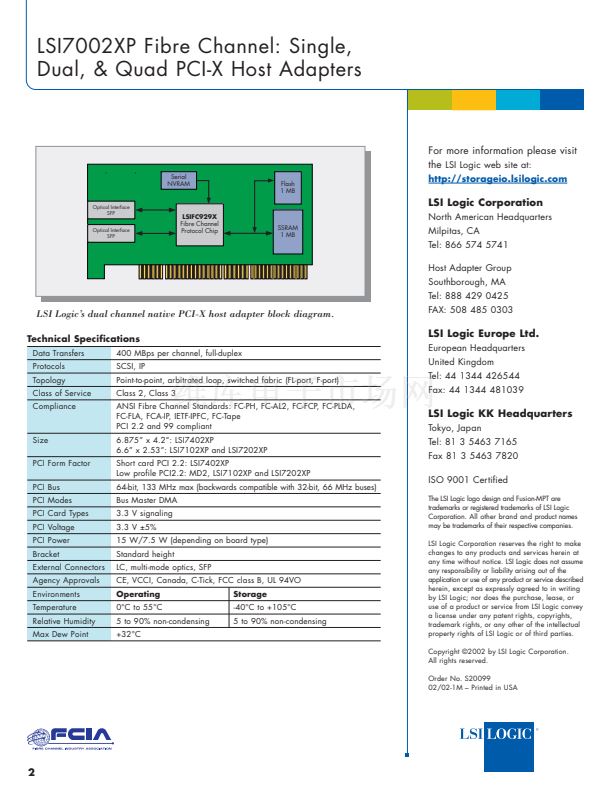

LSI7002XP Fibre Channel: Single,
Dual, & Quad PCI-X Host Adapters
KEY APPLICATIONS
鈥?Storage Area Networks (SANs)
鈥?Server to storage interconnect
鈥?SAN clustering
MAXIMIZE YOUR THROUGHPUT WITH LSI LOGIC鈥橲 INDUSTRY
LEADING PCI-X, 2 GBIT/S FIBRE CHANNEL ADAPTERS
Designed for data mining, video and media streaming, and high availability
applications, LSI Logic鈥檚 family of PCI-X, 64-bit, 133 MHz Fibre channel host
adapters provides industry-leading 2 Gbit/s Fibre Channel performance for
high band-width applications and offers total bus throughput.
FEATURES
鈥?64 bit/133 MHz PCI-X architecture
鈥?PCI 2.2 compliant
鈥?One, two, or four independent
full duplex 2 Gbit/s ports
鈥?Up to 400 MBps throughput
鈥?Auto negotiation of Fibre
Channel bit rate (1 or 2Gbit/s)
鈥?Supports all FC topologies
鈥?Supports Fibre Channel
Class 2 and 3 service
鈥?SNIA HBA API compliant
LSI Logic鈥檚 LSI7402XP quad port PCI-X host adapter incorporates two
LSIFC929X dual channel 2Gbit/s Fibre Channel controller devices, and a
133 MHz PCI-X bridge chip. LSI Logic鈥檚 LSIFC929X, the highest performance
dual channel controller available, incorporates LSI Logic鈥檚 Fusion-MPT
architecture for maximum performance with minimum host overhead. The
LSI7402XP maximizes your only PCI-X slot and offers increased connectivity
by offering four independent fibre channels on one host bus adapter.
LSI Logic also offers the LSI7202XP dual channel, 2Gbit/s PCI-X host
adapter and the LSI7102XP single channel, 2Gbit/s PCI-X host adapter.
Both host bus adapters are designed in the Low Profile PCI form factor making
them the right choice for 1U and 2U rackmount and standard servers.
LSI Logic鈥檚 PCI-X host adapter family supports switched fabric, arbitrated
loop and point to point topologies. Drivers for all major operating systems
are available at
http://www.storageio.lsilogic.com.
Connectors
鈥?LC, multi-mode, SFP
FUSION-MPT ARCHITECTURE
Based on industry standard ARM technology, the LSI Logic 2 Gbit product
family incorporates Fusion-MPT architecture, a single binary device driver
for Fibre Channel, SCSI and emerging interface technologies such as
InfiniBand, Serial ATA and others. Thinner drivers allow for better and more
versatile performance while adding value at the firmware level. Fusion-MPT
provides the flexibility and rich feature set to make options like Integrated
Mirroring possible for boot volume protection at no additional cost.
廬
Driver Support
鈥?Windows NT & 2000,
Solaris X86 & SPARC,
Netware, and Linux
Visual Indicators
鈥?Single multicolor LED per channel
鈥?Link
鈥?Activity
鈥?Fault
L S I 7 0 0 2 X P FA M I LY O R D E R I N G I N F O R M AT I O N
LSI7402XP-LC
LSI7202XP-LC
LSI7102XP-LC
Quad port, LC, SFP, multi-mode optics
Dual port, LC, SFP, multi-mode optics
Single port, LC SFP, multi-mode optics
