LSI7000X Fibre Channel: Single,
Dual, & Quad PCI-X Host Adapters
KEY APPLICATIONS
鈥?Storage Area Networks (SANs)
鈥?Server to storage interconnect
鈥?SAN clustering
MAXIMIZE YOUR THROUGHPUT WITH LSI LOGIC鈥橲 INDUSTRY
LEADING PCI-X, 2 GBIT/S FIBRE CHANNEL ADAPTERS
Designed for data mining, video and media streaming, and high availability
applications, LSI Logic鈥檚 family of PCI-X, 64-bit, 133 MHz fibre channel host
adapters provides industry-Ieading 2 Gbit/s fibre channel performance for
high bandwidth applications, and offers total bus throughput.
FEATURES
鈥?64 bit/133 MHz PCI-X architecture
鈥?PCI 2.2 compliant
鈥?PCI short card length (6.875鈥?
鈥?One, two, or four independent
full duplex 2 Gbit/s ports
鈥?Up to 400 MBps throughput
鈥?Auto negotiation of Fibre
Channel bit rate (1 or 2Gbit/s)
鈥?Supports all FC topologies
鈥?Supports Fibre Channel
Class 2 and 3 service
鈥?SNIA HBA API compliant

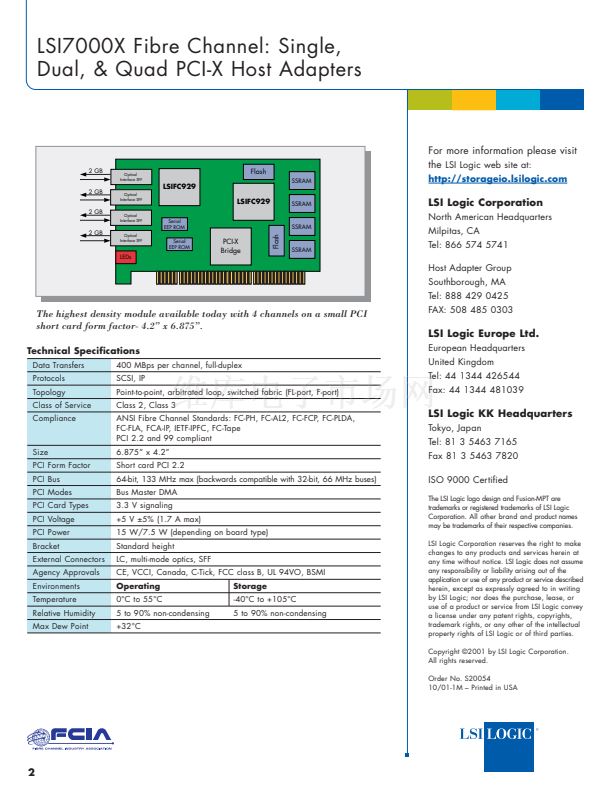

LSI Logic鈥檚 LSI7402X quad port PCI-X host adapter, incorporates two
LSIFC929 dual channel 2Gbit/s fibre channel controller devices, and a 133 MHz
PCI-X bridge chip. LSI Logic鈥檚 LSIFC929, the highest performance dual
channel controller available, incorporates LSI Logic鈥檚 Fusion-MPT
鈩?/div>
architecture
for maximum performance with minimum host overhead. The LSI7402X
maximizes your only 133 MHz PCI-X slot and offers increased connectivity
by offering four independent fibre channels on one host bus adapter.
LSI Logic also offers the LSI7202X dual channel, 2Gbit/s PCI-X host adapter,
and the LSI7102X single channel, 2Gbit/s PCI-X host adapter. LSI Logic鈥檚
PCI-X host adapter family supports switched fabric, arbitrated loop and
point-to-point topologies. Drivers for all major operating systems are available
at
http://www.storageio.lsilogic.com.
FUSION-MPT ARCHITECTURE
Based on industry standard ARM technology, the LSI Logic 2 Gbit product
family incorporates Fusion-MPT architecture, a single binary device driver
for Fibre Channel, SCSI and emerging interface technologies such as
InfiniBand, Serial ATA and others. Thinner drivers allow for better and more
versatile performance while adding value at the firmware level. Fusion-MPT
provides the flexibility and rich feature set to make options like Integrated
Mirroring possible for boot volume protection at no additional cost.
廬
Connectors
鈥?LC, multi-mode, SFF
Driver Support
鈥?Windows NT & 2000,
Solaris X86 & SPARC,
Netware, and Linux
L S I 7 0 0 0 X FA M I LY O R D E R I N G I N F O R M AT I O N
LSI7402X-LC
LSI7202X-LC
LSI7102X-LC
Quad port, LC, SFF, multi-mode optics
Dual port, LC, SFF, multi-mode optics
Single port, LC SFF, multi-mode optics
Visual Indicators
鈥?Single multicolor LED per channel
鈥?Link
鈥?Activity
鈥?Fault
