鈩?/div>
domain validation
technology ensures data
integrity
鈥?Supports all major operating
systems with SDMS software
鈥?Supports one-button disaster
recovery for tape drives for
instant data recovery
鈥?5 year limited warranty
The LSI22915A Ultra160 SCSI host adapter offers the highest Ultra160
SCSI performance with two internal and external channels.
DELIVER HIGH PERFORMANCE CONNECTIVITY TO
YOUR ENTERPRISE APPLICATIONS!
When developing enterprise storage solutions, the LSI22915A PCI-
to-Dual Channel Ultra160 SCSI host adapter is the ideal choice. Two
independent Ultra160 SCSI channels allow for up to 30 external and/or
internal devices to be attached at once for high performance and flexibility.
This greater connectivity makes the LSI22915A adapter ideal for connecting
JBODs, RAID, hard disk drives for high speed storage applications.
This adapter provides the advanced features necessary to ensure reliable
Ultra160 system operation and meets the data transfer requirements of
emerging system technologies. It includes LSI Logic SureLINK domain validation
technology, available exclusively from LSI Logic, which ensures data integrity
by intelligently testing the network before completing negotiation.

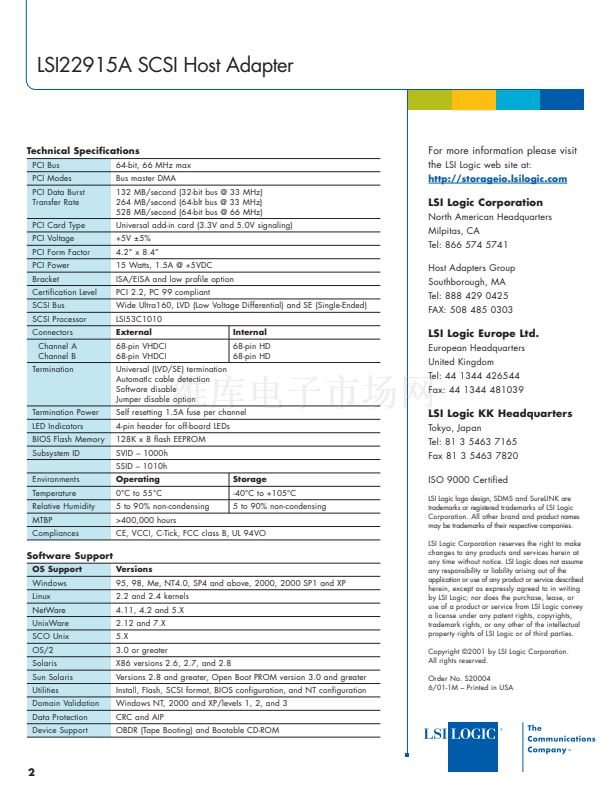

PCI Bus:
64-bit, 66 MHz PCI
SCSI Bus:
16-bit LVD or Single-ended
SCSI Performance:
Ultra160 (160 MBps)
SCSI Connector Config:
Internal: (2) 68-pin HD
External: (2) 68-pin VHDCI
Max No of SCSI Devices:
30
WARRANTY
For more than 15 years, LSI Logic host adapters have been providing high-
performance SCSI solutions to leading server, disk array and computer systems
worldwide. Each host adapter carries a powerful chip built in LSI Logic鈥檚
ISO 9001-certified fabrication facilities. Using only the highest quality
components, LSI Logic host adapters are assembled and tested in world-class
facilities to assure superior product reliability and performance. Because of
stringent quality management programs, our host adapters carry a five-year
limited warranty.
LSI22915A ULTRA160 SCSI ORDERING INFORMATION
LSI22915A
Supports Intel platforms
