LSI22802
SCSI Host Adapter
BENEFITS
鈥?Increased peripheral connectivity
鈥?up to 30 devices
鈥?Complete host adapter solution
for quick time-to- market
鈥?True multi-function device
provides better performance
than PCI-to-PCI bridge solutions
鈥?Up to 80 MBps combined
synchronous transfer rate for
two 16-bit Ultra SCSI channels
鈥?Improved reliability with a single
chip solution
鈥?Automatic termination determined
by cabling environment (ease of
use for the OEM and end user)
鈥?Complete software support with
BIOS and drivers
鈥?Termination power supplied
through self-resetting current
limiting device
鈥?Allows custom driver development
with SCSI SCRIPTS
鈩?/div>
鈥?Connectors for off-board SCSI
active LEDs
鈥?Any drive in a disk array can
be used as the boot device
鈥?On-board BIOS supports disk
drives with greater than 8 GB
capacity

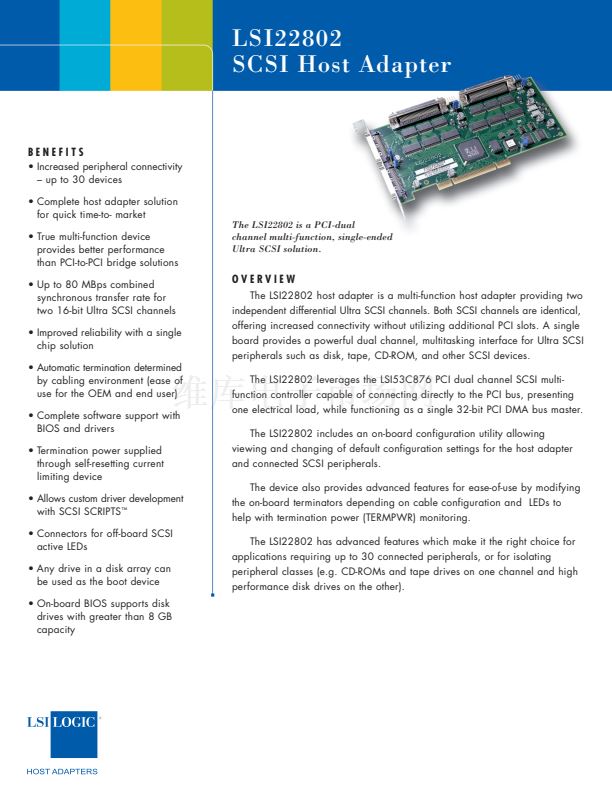

The LSI22802 is a PCI-dual
channel multi-function, single-ended
Ultra SCSI solution.
OVERVIEW
The LSI22802 host adapter is a multi-function host adapter providing two
independent differential Ultra SCSI channels. Both SCSI channels are identical,
offering increased connectivity without utilizing additional PCI slots. A single
board provides a powerful dual channel, multitasking interface for Ultra SCSI
peripherals such as disk, tape, CD-ROM, and other SCSI devices.
The LSI22802 leverages the LSI53C876 PCI dual channel SCSI multi-
function controller capable of connecting directly to the PCI bus, presenting
one electrical load, while functioning as a single 32-bit PCI DMA bus master.
The LSI22802 includes an on-board configuration utility allowing
viewing and changing of default configuration settings for the host adapter
and connected SCSI peripherals.
The device also provides advanced features for ease-of-use by modifying
the on-board terminators depending on cable configuration and LEDs to
help with termination power (TERMPWR) monitoring.
The LSI22802 has advanced features which make it the right choice for
applications requiring up to 30 connected peripherals, or for isolating
peripheral classes (e.g. CD-ROMs and tape drives on one channel and high
performance disk drives on the other).
