鈩?/div>
technology ensures
data integrity by intelligently
validating the compatibility of
the SCSI domain
鈥?Supports all major OSs
Host Bus:
64-bit, 133 MHz PCI-X
SCSI Chip:
LSI53C1030
SCSI Bus:
16-bit LVD or Single-Ended
SCSI Performance:
Ultra320 (320 MBps/channel)
SCSI Connector Config:
Internal: (2) 68-pin HD
External: 68-pin HD
Max SCSI Devices:
30

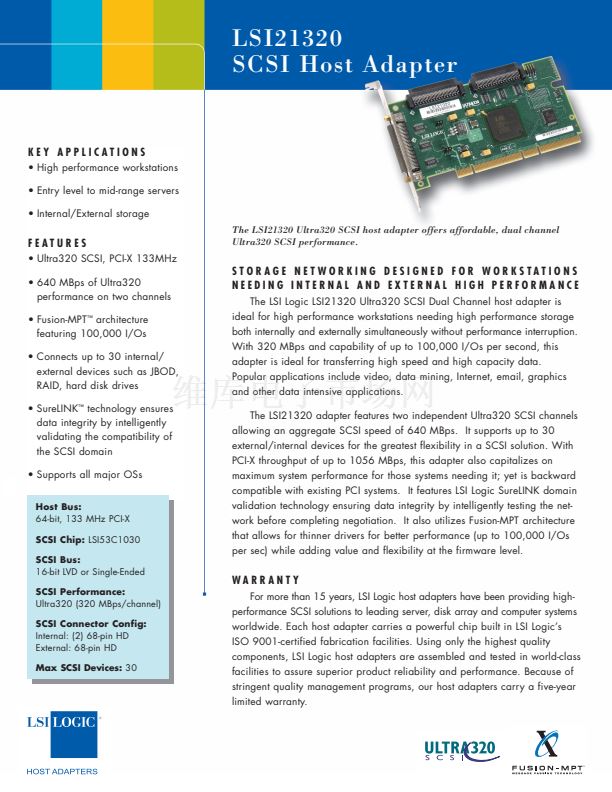

The LSI21320 Ultra320 SCSI host adapter offers affordable, dual channel
Ultra320 SCSI performance.
STORAGE NETWORKING DESIGNED FOR WORKSTATIONS
NEEDING INTERNAL AND EXTERNAL HIGH PERFORMANCE
The LSI Logic LSI21320 Ultra320 SCSI Dual Channel host adapter is
ideal for high performance workstations needing high performance storage
both internally and externally simultaneously without performance interruption.
With 320 MBps and capability of up to 100,000 I/Os per second, this
adapter is ideal for transferring high speed and high capacity data.
Popular applications include video, data mining, Internet, email, graphics
and other data intensive applications.
The LSI21320 adapter features two independent Ultra320 SCSI channels
allowing an aggregate SCSI speed of 640 MBps. It supports up to 30
external/internal devices for the greatest flexibility in a SCSI solution. With
PCI-X throughput of up to 1056 MBps, this adapter also capitalizes on
maximum system performance for those systems needing it; yet is backward
compatible with existing PCI systems. It features LSI Logic SureLINK domain
validation technology ensuring data integrity by intelligently testing the net-
work before completing negotiation. It also utilizes Fusion-MPT architecture
that allows for thinner drivers for better performance (up to 100,000 I/Os
per sec) while adding value and flexibility at the firmware level.
WARRANTY
For more than 15 years, LSI Logic host adapters have been providing high-
performance SCSI solutions to leading server, disk array and computer systems
worldwide. Each host adapter carries a powerful chip built in LSI Logic鈥檚
ISO 9001-certified fabrication facilities. Using only the highest quality
components, LSI Logic host adapters are assembled and tested in world-class
facilities to assure superior product reliability and performance. Because of
stringent quality management programs, our host adapters carry a five-year
limited warranty.
