鈩?/div>
technology ensures
data integrity by intelligently
validating the compatibility of
the SCSI domain
鈥?Supports all major OSs
Host Bus:
64-bit, 133 MHz PCI-X
SCSI Chip:
LSI53C1020
SCSI Bus:
16-bit LVD or Single-Ended
SCSI Performance:
Ultra320
SCSI Connector Config:
Internal: 68-pin HD
External: 68-pin VHDCI
Max SCSI Devices:
15

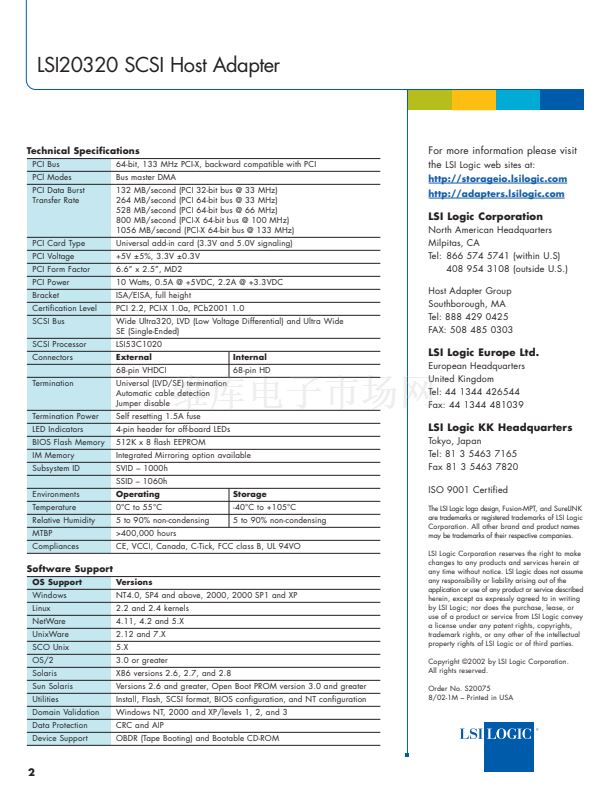

The LSI20320 Ultra320 SCSI host adapter offers Ultra320 SCSI performance
for workstations at an affordable price.
AFFORDABLE, HIGH PERFORMANCE CONNECTIVITY FOR
ISP AND RACKMOUNT SERVERS
The LSI Logic LSI20320 Ultra320 SCSI single channel host adapter is the
right choice for increasing internal storage performance within ISP, rackmount
servers, and high performance workstations. With 320 MBps and capability
of up to 50,000 I/Os per second, this adapter is ideal for transferring high
speed and high capacity data. Designed for applications that don鈥檛 require
as many external connections, this cost effective solution gives you the
performance you need, at a price that is right. Popular applications include
print, email and web servers, and intranet and extranet hosting.
With PCI-X throughput of 1056 MBps, this adapter also capitalizes on
maximum system performance for those systems needing it; yet is backward
compatible with existing PCI systems. It features LSI Logic SureLINK domain
validation technology ensuring data integrity by intelligently testing the network
before completing negotiation. It also utilizes Fusion-MPT architecture that
allows for thinner drivers for better performance (up to 50,000 I/Os per
second) while adding value and flexibility at the firmware level.
WARRANTY
For more than 15 years, LSI Logic host adapters have been providing high-
performance SCSI solutions to leading server, disk array and computer systems
worldwide. Each host adapter carries a powerful chip built in LSI Logic鈥檚
ISO 9001-certified fabrication facilities. Using only the highest quality
components, LSI Logic host adapters are assembled and tested in world-class
facilities to assure superior product reliability and performance. Because of
stringent quality management programs, our host adapters carry a five-year
limited warranty.
