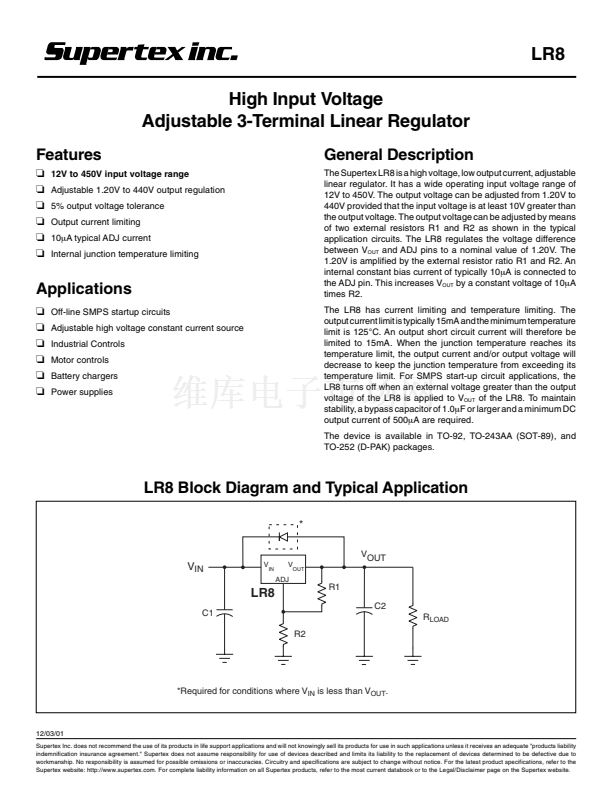

The Supertex LR8 is a high voltage, low output current, adjustable
linear regulator. It has a wide operating input voltage range of
12V to 450V. The output voltage can be adjusted from 1.20V to
440V provided that the input voltage is at least 10V greater than
the output voltage. The output voltage can be adjusted by means
of two external resistors R1 and R2 as shown in the typical
application circuits. The LR8 regulates the voltage difference
between V
OUT
and ADJ pins to a nominal value of 1.20V. The
1.20V is amplified by the external resistor ratio R1 and R2. An
internal constant bias current of typically 10碌A(chǔ) is connected to
the ADJ pin. This increases V
OUT
by a constant voltage of 10碌A(chǔ)
times R2.
The LR8 has current limiting and temperature limiting. The
output current limit is typically 15mA and the minimum temperature
limit is 125擄C. An output short circuit current will therefore be
limited to 15mA. When the junction temperature reaches its
temperature limit, the output current and/or output voltage will
decrease to keep the junction temperature from exceeding its

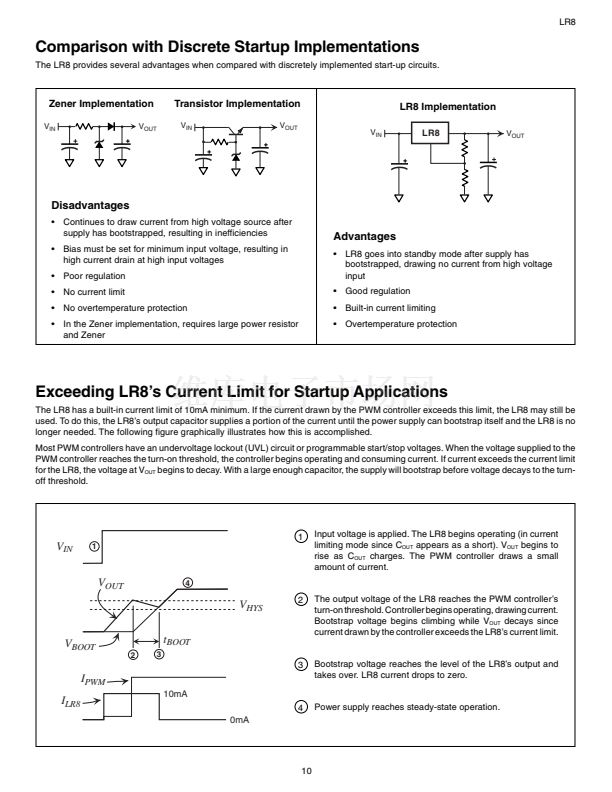

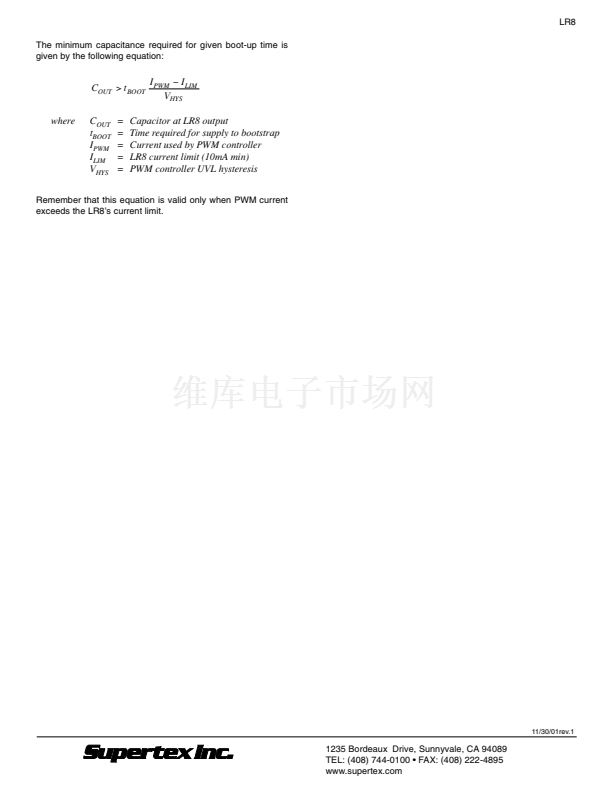

temperature limit. For SMPS start-up circuit applications, the
LR8 turns off when an external voltage greater than the output
voltage of the LR8 is applied to V
OUT
of the LR8. To maintain
stability, a bypass capacitor of 1.0碌F or larger and a minimum DC
output current of 500碌A(chǔ) are required.

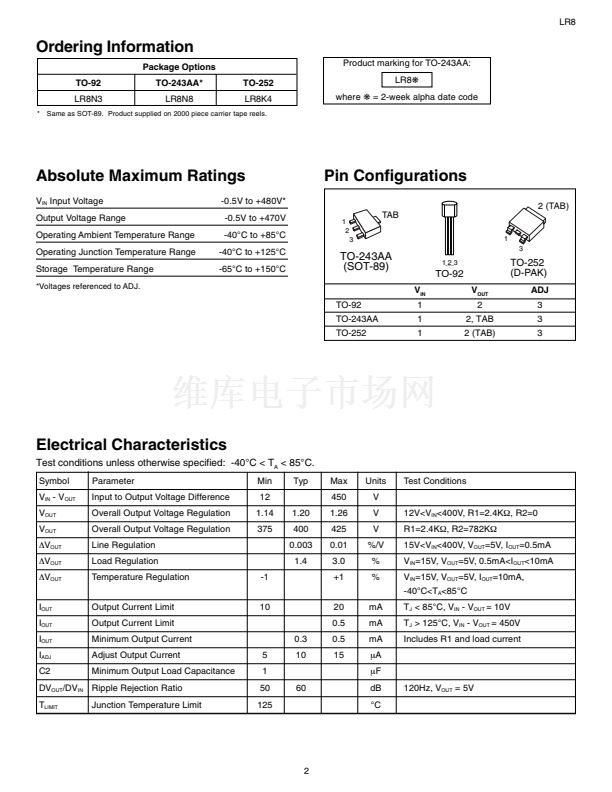

The device is available in TO-92, TO-243AA (SOT-89), and
TO-252 (D-PAK) packages.
Applications
鉂?/div>
鉂?/div>
鉂?/div>
鉂?/div>
鉂?/div>
鉂?/div>

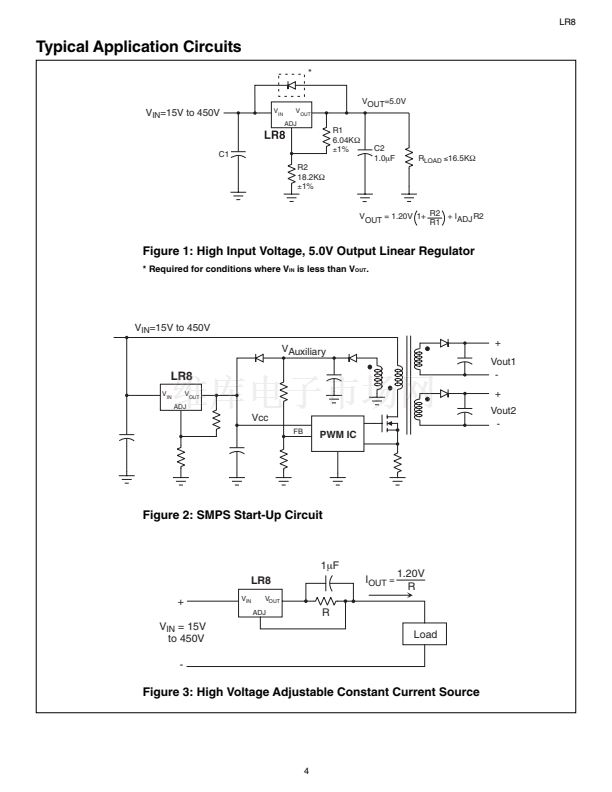

Off-line SMPS startup circuits

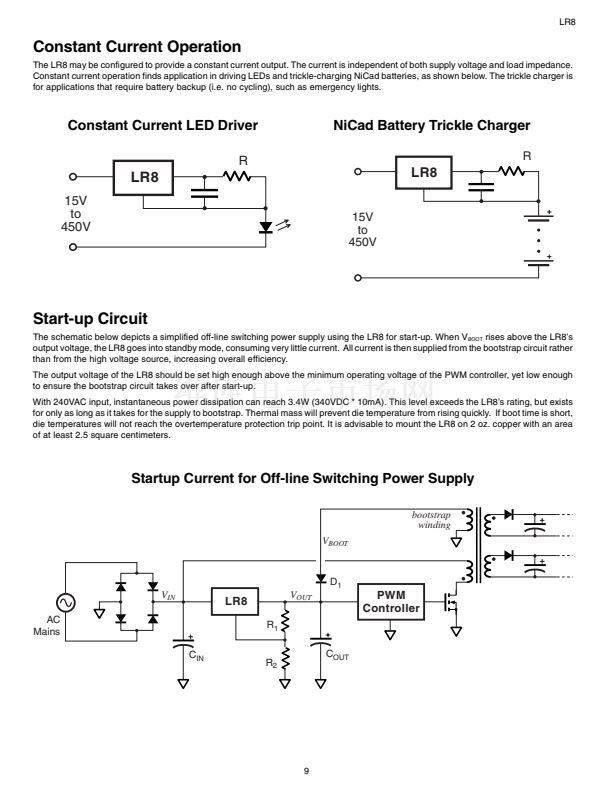

Adjustable high voltage constant current source
Industrial Controls
Motor controls
Battery chargers
Power supplies

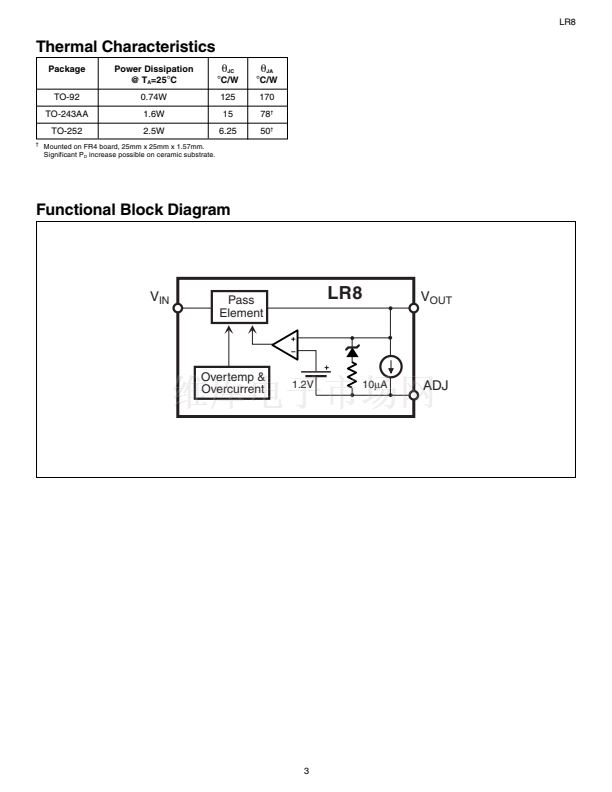

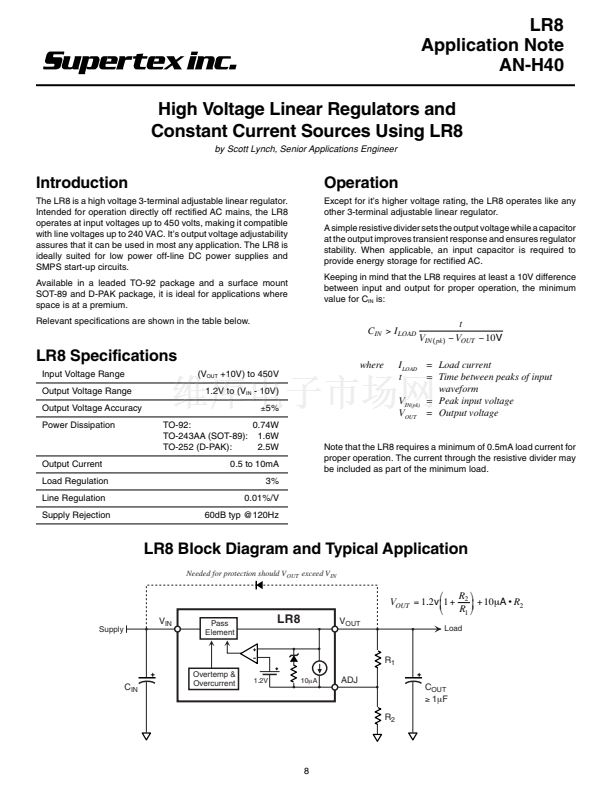

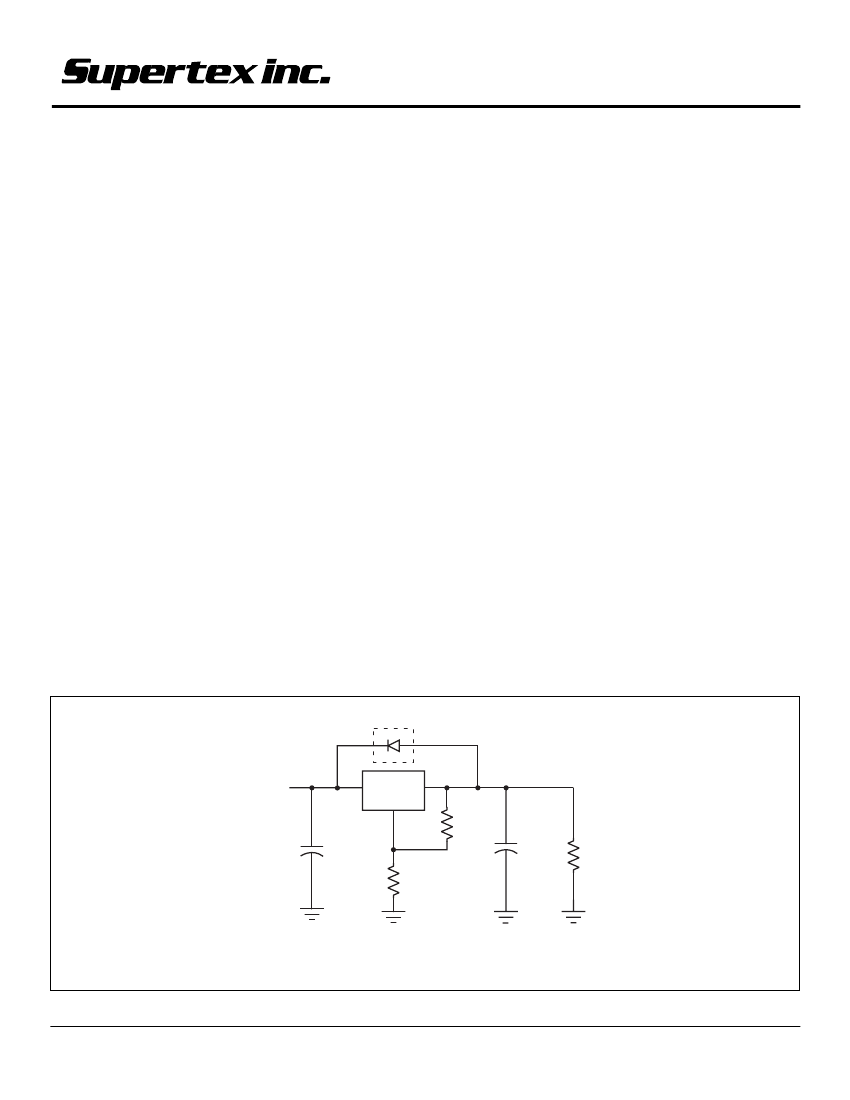

LR8 Block Diagram and Typical Application
*
VOUT
R1
C2
R
LOAD
R2
V
IN
V
IN
V
OUT
ADJ
LR8
C1
*Required for conditions where V
IN
is less than V
OUT
.
12/03/01
