LR38575

LR38575

DESCRIPTION

The LR38575 is a CMOS timing generator IC

which generates timing pulses for driving

1 310 k-pixel CCD area sensor and processing

pulses.

48-PIN QFP

Timing Generator IC for

1 310 k-pixel CCD

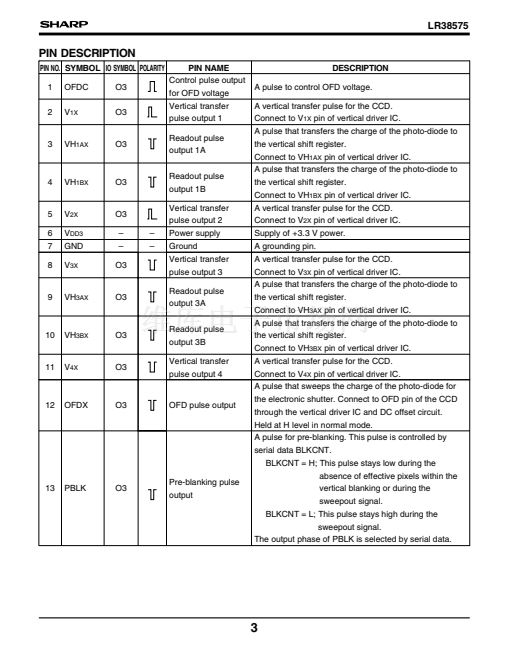

PIN CONNECTIONS

TOP VIEW

48 47 46 45 44 43 42 41 40 39 38 37

FEATURES

鈥?Designed for 1/3.2-type 1 310 k-pixel CCD area

sensor

鈥?Frequency of driving horizontal CCD : 12.272725

MHz

鈥?In monitoring mode, it can be obtained 30 fields/s

鈥?Two still mode types :

3 fields period and 4 fields period

鈥?External shutter control function with serial data

input is possible

鈥?+3.3 V and +4.5 V power supplies

鈥?Package :

48-pin QFP (P-QFP048-0707) 0.5 mm pin-pitch

OFDC 1

V

1X

2

VH

1AX

3

VH

1BX

4

V

2X

5

V

DD3

6

GND 7

V

3X

8

VH

3AX

9

VH

3BX

10

V

4X

11

OFDX 12

13 14 15 16 17 18 19 20 21 22 23 24

PBLK

BCPX

CLPX

ADCK

GND

FCDS

FS

V

DD3

ACLX

RS

GND

VCON

SHTR

DRMD

FR

TST

3

V

DD4

FH

2

GND

FH

1

V

DD4

CCD

TST

2

TST

1

36 ID

35 ED

2

34 ED

1

33 ED

0

32 HD

31 GND

30 V

DD3

29 VD

28 DCLK

27 CLK

26 CKO

25 CKI

(P-QFP048-0707)

In the absence of confirmation by device specification sheets, SHARP takes no responsibility for any defects that may occur in equipment using any SHARP devices shown in

catalogs, data books, etc. Contact SHARP in order to obtain the latest device specification sheets before using any SHARP device.

1
