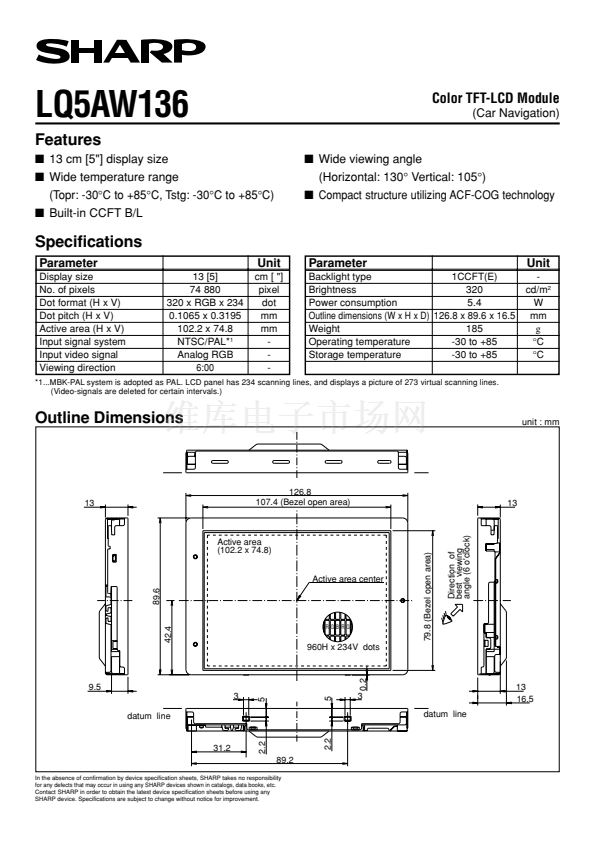

Under Development
LQ5AW136
Features
s
13 cm [5"] display size
s
Wide temperature range
(Topr: -30擄C to +85擄C, Tstg: -30擄C to +85擄C)
s
Built-in CCFT B/L
Color TFT-LCD Module
(Car Navigation)
s
Wide viewing angle
(Horizontal: 130擄 Vertical: 105擄)
s
Compact structure utilizing ACF-COG technology
Specifications
Parameter
Display size
No. of pixels
Dot format (H x V)
Dot pitch (H x V)
Active area (H x V)
Input signal system
Input video signal
Viewing direction
13 [5]
74 880
320 x RGB x 234
0.1065 x 0.3195
102.2 x 74.8
NTSC/PAL*
1
Analog RGB
6:00
Unit
cm [ "]
pixel
dot
mm
mm
-
-
-
Parameter
Backlight type
1CCFT(E)
Brightness
320
Power consumption
5.4
Outline dimensions (W x H x D) 126.8 x 89.6 x 16.5
Weight
185
Operating temperature
-30 to +85
Storage temperature
-30 to +85
Unit
-
cd/m
2
W
mm
g
擄C
擄C
*1...MBK-PAL system is adopted as PAL. LCD panel has 234 scanning lines, and displays a picture of 273 virtual scanning lines.
(Video-signals are deleted for certain intervals.)
Outline Dimensions
unit : mm
13
126.8
107.4 (Bezel open area)
13
Active area center
89.6
42.4
RGBRG
960H x 234V dots
0.2
79.8 (Bezel open area)
Active area
(102.2 x 74.8)
Direction of
best viewing
angle (6 o'clock)
9.5
5
5
3
datum line
3
datum line
13
16.5
31.2
2.2
89.2
In the absence of confirmation by device specification sheets, SHARP takes no responsibility
for any defects that may occur in using any SHARP devices shown in catalogs, data books, etc.
Contact SHARP in order to obtain the latest device specification sheets before using any
SHARP device. Specifications are subject to change without notice for improvement.
2.2
