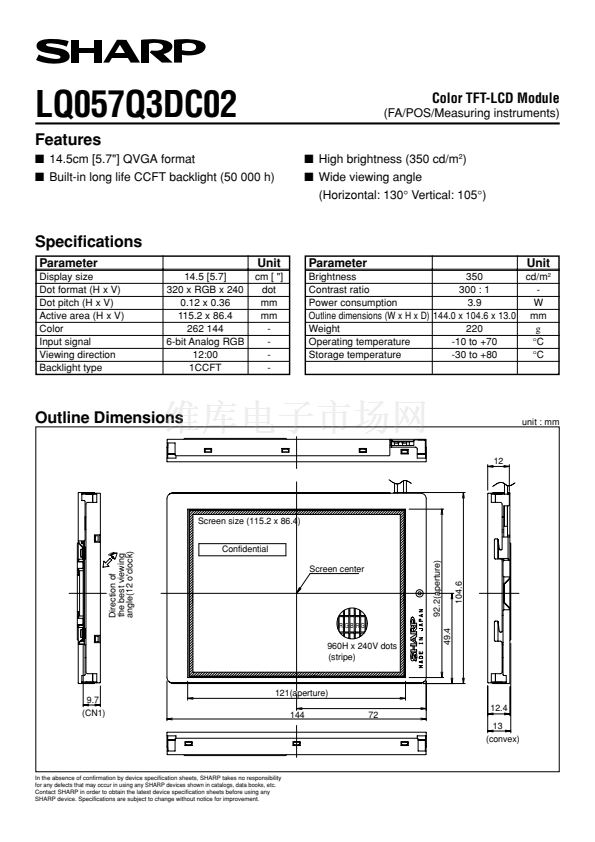

New Product
LQ057Q3DC02
Features
s
14.5cm [5.7"] QVGA format
s
Built-in long life CCFT backlight (50 000 h)
Color TFT-LCD Module
(FA/POS/Measuring instruments)
s
High brightness (350 cd/m
2
)
s
Wide viewing angle
(Horizontal: 130擄 Vertical: 105擄)
Specifications
Parameter
Display size
Dot format (H x V)
Dot pitch (H x V)
Active area (H x V)
Color
Input signal
Viewing direction
Backlight type
14.5 [5.7]
320 x RGB x 240
0.12 x 0.36
115.2 x 86.4
262 144
6-bit Analog RGB
12:00
1CCFT
Unit
cm [ "]
dot
mm
mm
-
-
-
-
Parameter
Unit
Brightness
350
cd/m
2
Contrast ratio
300 : 1
-
Power consumption
3.9
W
Outline dimensions (W x H x D) 144.0 x 104.6 x 13.0 mm
Weight
220
g
Operating temperature
-10 to +70
擄C
Storage temperature
-30 to +80
擄C
Outline Dimensions
12
unit : mm
Screen size (115.2 x 86.4)
Confidential
Screen center
92.2(aperture)
49.4
Direction of
the best viewing
angle(12 o'clock)
RGB RG
960H x 240V dots
(stripe)
9.7
(CN1)
121(aperture)
144
72
12.4
13
(convex)
In the absence of confirmation by device specification sheets, SHARP takes no responsibility
for any defects that may occur in using any SHARP devices shown in catalogs, data books, etc.
Contact SHARP in order to obtain the latest device specification sheets before using any
SHARP device. Specifications are subject to change without notice for improvement.
104.6
