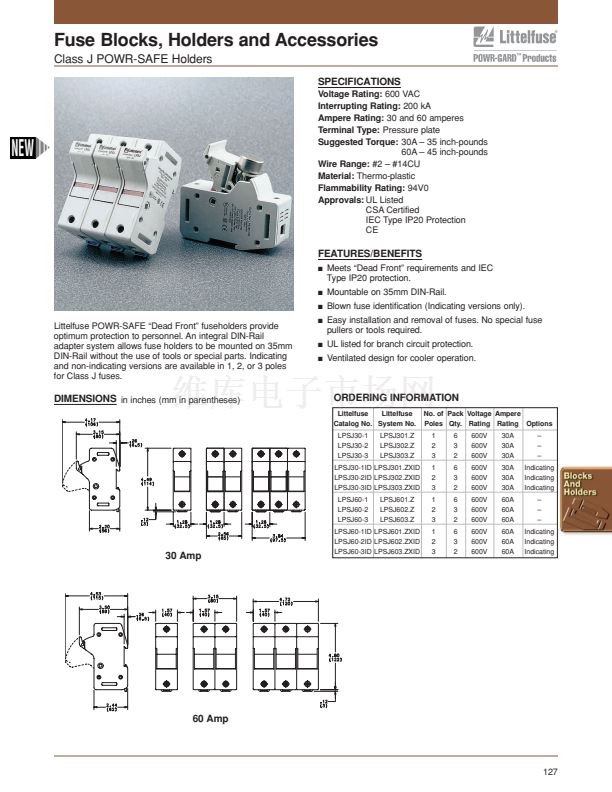

Fuse Blocks, Holders and Accessories
POWR-SAFE 鈥淒ead Front鈥?Holders
SPECIFICATIONS
Voltage Rating:
600 Volts
Ampere Rating:
30 amperes
Interrupting Rating:
200 kA (Class CC)
100 kA (Midget)
Terminal type:
Pressure plate
Suggested Torque:
15 lb.
Wire Range:
#6鈥?14CU
Material:
Thermo-Plastic
Flammability Rating:
94VO
Approvals:
UL Listed (LPSC File No: E14721)
UL Recognized (LPSM File No: E14721)
CSA Certified (LPSC/LPSM File No: LR7316)
IEC Type IP20 Protection
CE Certified
ORDERING INFORMATION
Indicating
Part
Number
LPSC001ID
Littelfuse POWR-SAFE 鈥淒ead Front鈥?holders provide
optimum protection to personnel. Indicating and non-
indicating versions are available in 1, 2, 3, or 4 poles for
Class CC and Midget fuses.
LPSC002ID
LPSC003ID
LPSC004ID
LPSM001ID
LPSM002ID
LPSM003ID
LPSM004ID
Non-Indicating
Part
Number
LPSC001
LPSC002
LPSC003
LPSC004
LPSM001
LPSM002
LPSM003
LPSM004
Fuse
Type
Class CC
Class CC
Class CC
Class CC
Midget
Midget
Midget
Midget
Number
of
Poles
1
2
3
4
1
2
3
4
FEATURES/BENEFITS
I
I
I
I
I
I
I
I
Meets 鈥淒ead Front鈥?requirements and IEC Type IP20
Protection
Mountable on 35mm Din Rail
Blown fuse identification (Indicating versions only)
Easy installation and removal of fuses. No special fuse
pullers or tools required.
UL Listed for branch circuit protection (Class CC
versions only)
Compact design
Ventilated design for cooler operation
Indicates above 80 volts (ID versions only)
Multi-pole Assembly Kit:
Order No: CYHP001
(Kit contains 20 connector
pincers and 10 handle pins.)
NOTE:
Contact factory for DC rated versions.
DIMENSIONS
in inches (mm in parentheses)
I
LPSM/LPSC
POWR-SAFE Holders
.689
(17.50)
1.38
(35.05)
2.07
(52.58)
2.76
(70.10)
3.032
(77.01)
126
1
2
