LMC6061AIMX Datasheet

  • LMC6061AIMX

  • Voltage-Feedback Operational Amplifier

  • 16頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

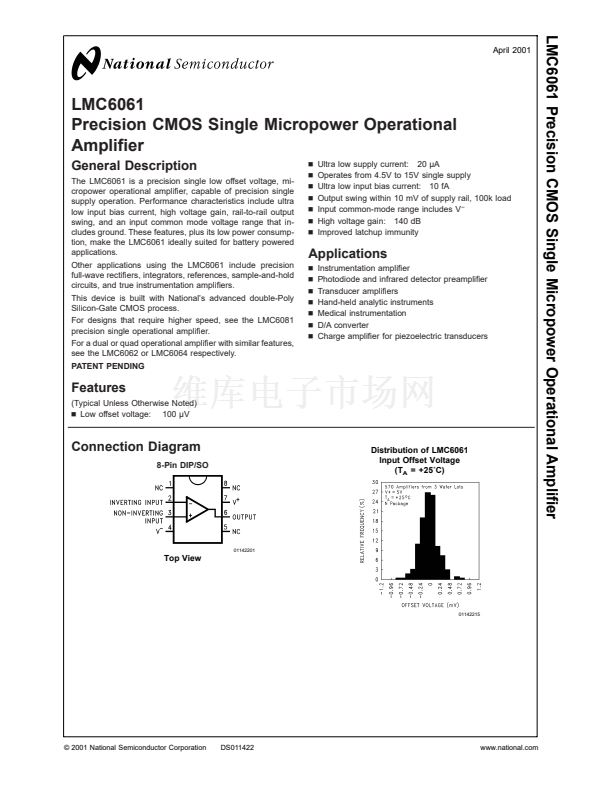

LMC6061 Precision CMOS Single Micropower Operational Amplifier
April 2001
LMC6061
Precision CMOS Single Micropower Operational
Amplifier
General Description
The LMC6061 is a precision single low offset voltage, mi-
cropower operational amplifier, capable of precision single
supply operation. Performance characteristics include ultra
low input bias current, high voltage gain, rail-to-rail output
swing, and an input common mode voltage range that in-
cludes ground. These features, plus its low power consump-
tion, make the LMC6061 ideally suited for battery powered
applications.
Other applications using the LMC6061 include precision
full-wave rectifiers, integrators, references, sample-and-hold
circuits, and true instrumentation amplifiers.
This device is built with National鈥檚 advanced double-Poly
Silicon-Gate CMOS process.
For designs that require higher speed, see the LMC6081
precision single operational amplifier.
For a dual or quad operational amplifier with similar features,
see the LMC6062 or LMC6064 respectively.
PATENT PENDING
n
n
n
n
n
n
n
Ultra low supply current: 20 碌A(chǔ)
Operates from 4.5V to 15V single supply
Ultra low input bias current: 10 fA
Output swing within 10 mV of supply rail, 100k load
Input common-mode range includes V
鈭?/div>
High voltage gain: 140 dB
Improved latchup immunity
Applications
n
n
n
n
n
n
n

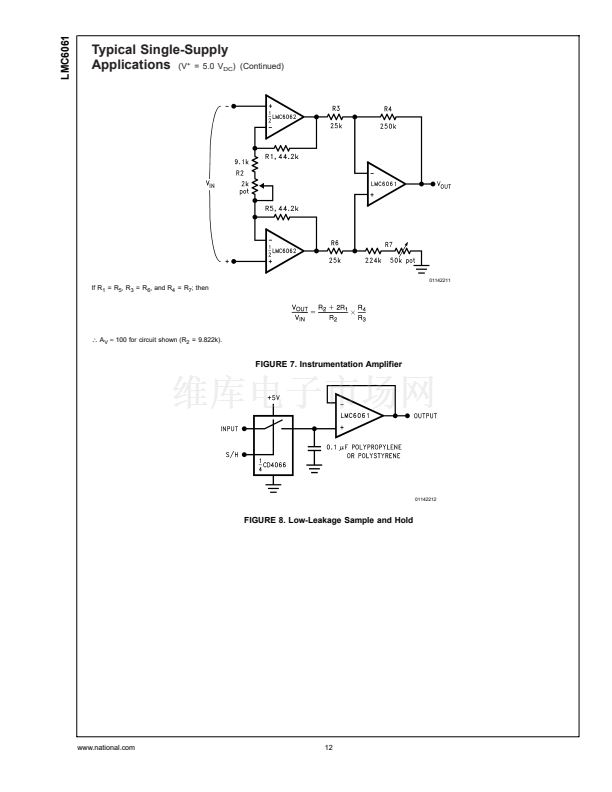

Instrumentation amplifier
Photodiode and infrared detector preamplifier
Transducer amplifiers
Hand-held analytic instruments
Medical instrumentation
D/A converter
Charge amplifier for piezoelectric transducers
Features
(Typical Unless Otherwise Noted)
n
Low offset voltage: 100 碌V
Connection Diagram
8-Pin DIP/SO

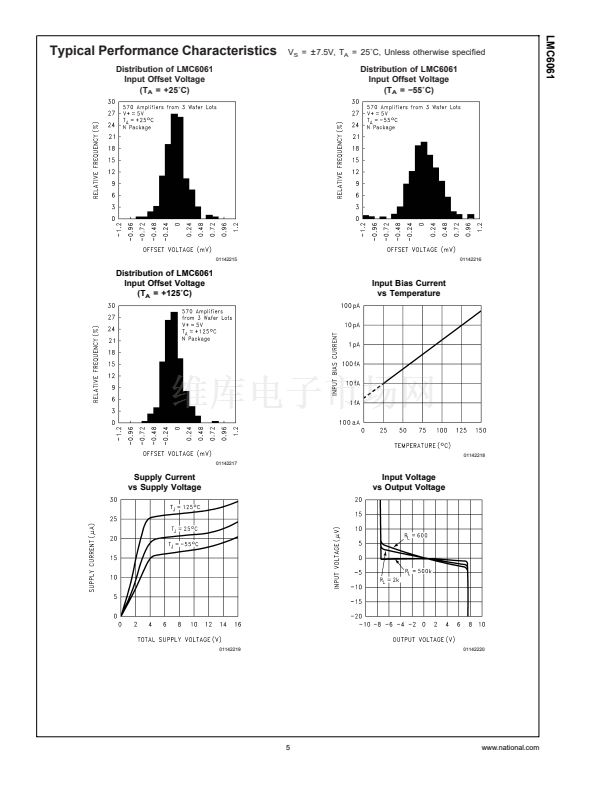

Distribution of LMC6061
Input Offset Voltage
(T
A
= +25藲C)
01142201
Top View
01142215
漏 2001 National Semiconductor Corporation
DS011422
www.national.com

LMC6061AIMX 產品屬性

  • National Semiconductor (TI)

  • 1

  • 75 dB

  • 0.35 mV at 5 V

  • 5 V, 9 V, 12 V, 15 V

  • SMD/SMT

  • SOIC-8 Narrow

  • 0.035 V/us at 5 V

  • No

  • + 85 C

  • Reel

  • - 40 C

  • 2500

  • 0.024 mA at 5 V

  • 15.5 V

  • 4.5 V

  • CMOS

  • 132.04 dB
