LM9810/20 10/12-Bit Image Sensor Processor Analog Front End

October 2000

LM9810/LM9820

10/12-Bit Image Sensor Processor Analog Front End

General Description

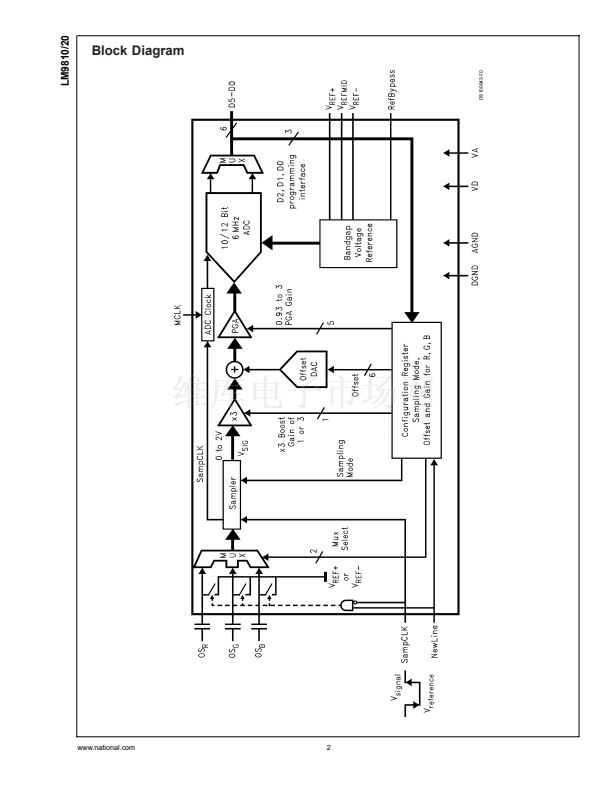

The LM9810 and LM9820 are high performance Analog

Front Ends (AFEs) for image sensor processing systems.

The LM9810/20 performs all the analog and mixed signal

functions (correlated double sampling, color specific gain

and offset correction, and analog to digital conversion) nec-

essary to digitize the output of a wide variety of CIS and CCD

sensors. The LM9810 has a 10-bit 6 MHz ADC, and the

LM9820 has a 12-bit 6 MHz ADC. The LM9810 and LM9820

are pin-for-pin and functionally compatible.

Features

6 million pixels/s conversion rate

Digitally programmed gain and offset for red, green and

blue pixels

Correlated Double Sampling for lowest noise

TTL/CMOS input/output compatible

Applications

Color Flatbed Document Scanners

Color Sheetfed Scanners

Multifunction Imaging Products

Digital Copiers

General Purpose Linear CCD Imaging

Key Specifications

Output Data Resolution

Pixel Conversion Rate

Supply Voltage

Power Dissipation

10/12 Bits

6 MHz

鹵

300 mW

Connection Diagram

DS100943-69

Ordering Information

Commercial (0藲C

鈮?/div>

+70藲C)

LM9810CCWM

LM9810CCWMX

LM9820CCWM

LM9820CCWMX

20-Pin Wide SOIC

20-Pin Wide SOIC, Tape and Reel

20-Pin Wide SOIC

20-Pin Wide SOIC, Tape and Reel

Package

漏 2000 National Semiconductor Corporation

DS100943

www.national.com
