LM741 Operational Amplifier

August 2000

LM741

Operational Amplifier

General Description

The LM741 series are general purpose operational amplifi-

ers which feature improved performance over industry stan-

dards like the LM709. They are direct, plug-in replacements

for the 709C, LM201, MC1439 and 748 in most applications.

The amplifiers offer many features which make their applica-

tion nearly foolproof: overload protection on the input and

output, no latch-up when the common mode range is ex-

ceeded, as well as freedom from oscillations.

The LM741C is identical to the LM741/LM741A except that

the LM741C has their performance guaranteed over a 0藲C to

+70藲C temperature range, instead of 鈭?5藲C to +125藲C.

Connection Diagrams

Metal Can Package

Dual-In-Line or S.O. Package

DS009341-3

DS009341-2

Note 1:

LM741H is available per JM38510/10101

Order Number LM741J, LM741J/883, LM741CN

See NS Package Number J08A, M08A or N08E

Ceramic Flatpak

Order Number LM741H, LM741H/883

(Note 1),

LM741AH/883 or LM741CH

See NS Package Number H08C

DS009341-6

Order Number LM741W/883

See NS Package Number W10A

Typical Application

Offset Nulling Circuit

DS009341-7

漏 2000 National Semiconductor Corporation

DS009341

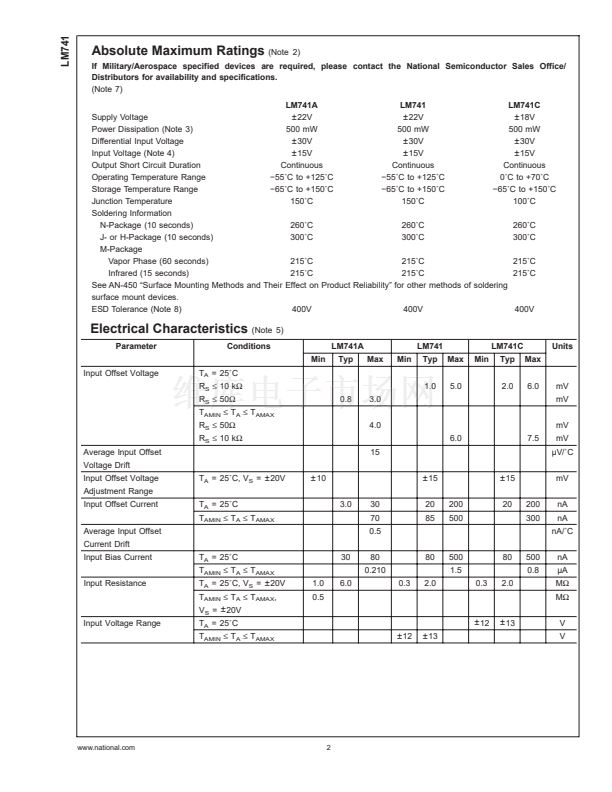

www.national.com
