MICROCIRCUIT DATA SHEET

MNLM6161-X REV 2A1

HIGH SPEED OPERATIONAL AMPLIFIER

General Description

The LM6161 high-speed amplifier exhibits an excellent speed-power product in delivering

300 V/uS and 50 MHz unity gain stability with only 5 mA of supply current. Further, power

savings and application convenience are possible by taking advantage of the wide dynamic

range in operating supply voltage which extends all the way down to +5V.

This amplifier is built with National's VIP[TM] (Vertically Integrated PNP) process which

provides fast PNP transistors that are true complements to the already fast NPN devices.

This advanced junction-isolated process delivers high speed performance without the need

for complex and expensive dielectric isolation.

Original Creation Date: 08/03/95

Last Update Date: 11/23/98

Last Major Revision Date: 10/28/98

Industry Part Number

LM6161

NS Part Numbers

LM6161E/883*

LM6161J-QMLV **

LM6161J/883 ***

LM6161W-SMD ****

LM6161W/883

LM6161WG-QMLV *****

LM6161WG/883 ******

Prime Die

LM6161B

Controlling Document

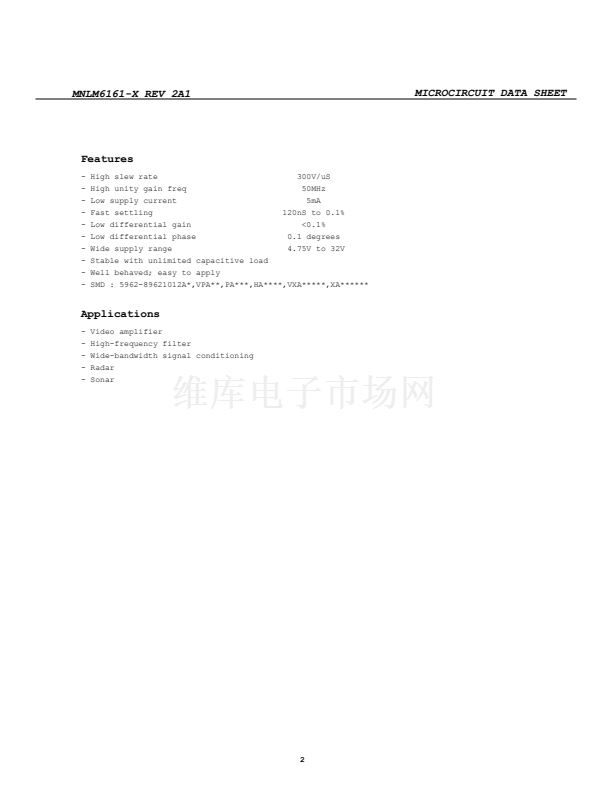

See Features Page

Processing

MIL-STD-883, Method 5004

Subgrp Description

1

2

3

4

5

6

7

8A

8B

9

10

11

Static tests at

Static tests at

Static tests at

Dynamic tests at

Dynamic tests at

Dynamic tests at

Functional tests at

Functional tests at

Functional tests at

Switching tests at

Switching tests at

Switching tests at

Temp (

o

C)

+25

+125

-55

+25

+125

-55

+25

+125

-55

+25

+125

-55

Quality Conformance Inspection

MIL-STD-883, Method 5005

1
