LM614CWMX Datasheet

  • LM614CWMX

  • Voltage-Feedback Operational Amplifier

  • 773.38KB

  • 19頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

LM614 Quad Operational Amplifier and Adjustable Reference
December 2001
LM614
Quad Operational Amplifier and Adjustable Reference
General Description
The LM614 consists of four op-amps and a programmable
voltage reference in a 16-pin package. The op-amp
out-performs most single-supply op-amps by providing
higher speed and bandwidth along with low supply current.
This device was specifically designed to lower cost and
board space requirements in transducer, test, measurement
and data acquisition systems.
Combining a stable voltage reference with four wide output
swing op-amps makes the LM614 ideal for single supply
transducers, signal conditioning and bridge driving where
large common-mode-signals are common. The voltage ref-
erence consists of a reliable band-gap design that maintains
low dynamic output impedance (1鈩?typical), initial tolerance
(2.0%), and the ability to be programmed from 1.2V to 5.0V
via two external resistors. The voltage reference is very
stable even when driving large capacitive loads, as are
commonly encountered in CMOS data acquisition systems.
As a member of National鈥檚 new Super-Block
鈩?/div>
family, the
LM614 is a space-saving monolithic alternative to a multichip
solution, offering a high level of integration without sacrificing
performance.
Features
Op Amp
n
Low operating current: 450碌A(chǔ)
n
Wide supply voltage range: 4V to 36V
n
Wide common-mode range: V
鈭?/div>
to (V
+
鈭?1.8V)
n
Wide differential input voltage:
鹵
36V
Reference
n
Adjustable output voltage: 1.2V to 5.0V
n
Initial tolerance:
鹵
2.0%
n
Wide operating current range: 17碌A(chǔ) to 20mA
n
Tolerant of load capacitance
Applications
n
n
n
n
Transducer bridge driver and signal processing
Process and mass flow control systems
Power supply voltage monitor
Buffered voltage references for A/D鈥檚
Connection Diagram
00932601
Ordering Information
Package
16-Pin Wide
Body SOIC
Temperature
Range
0藲C to 70藲C
鈭?0藲C to 85藲C
Part Number
LM614CWM
LM614CWMX
LM614IWM
LM614IWMX
Package Marking
LM614CWM
LM614CWM
LM614IWM
LM614IWM
Transport Media
Rails
1k Units Tape and Reel
Rails
1k Units Tape and Reel
NSC Drawing
M16B
Super-Block
鈩?/div>
is a trademark of National Semiconductor Corporation.
漏 2001 National Semiconductor Corporation
DS009326
www.national.com

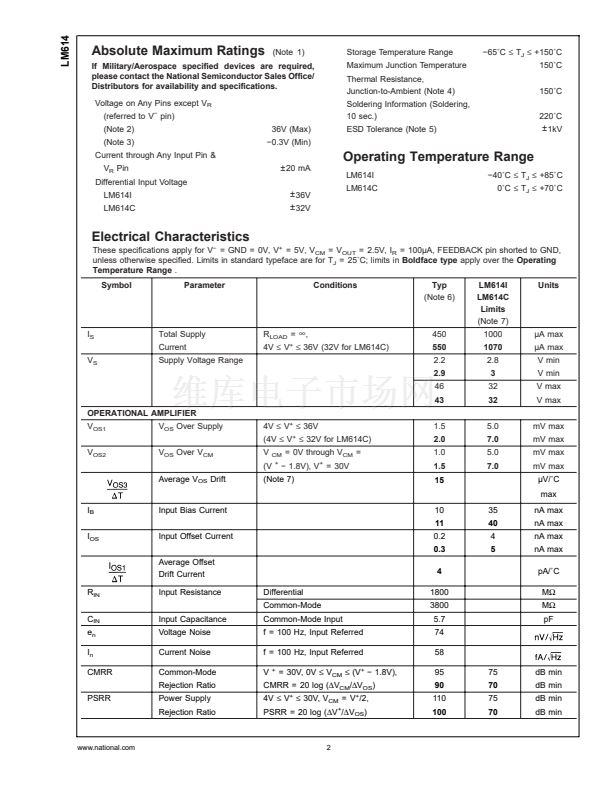

LM614CWMX 產品屬性

  • 1,000

  • 集成電路 (IC)

  • Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps

  • Super-Block™

  • 通用

  • 4

  • -

  • 0.7 V/µs

  • 800kHz

  • -

  • 10nA

  • 1500µV

  • 450µA

  • 25mA

  • 4 V ~ 36 V，±2 V ~ 18 V

  • 0°C ~ 70°C

  • 表面貼裝

  • 16-SOIC（0.295"，7.50mm 寬）

  • 16-SOIC W

  • 帶卷 (TR)

  • *LM614CWMX
