MICROCIRCUIT DATA SHEET

MNLM6118-X REV 0C1

Original Creation Date: 12/19/94

Last Update Date: 08/24/98

Last Major Revision Date: 12/19/94

FAST SETTING DUAL OPERATIONAL AMPLIFIER

General Description

The LM6118 series are monolithic fast-setting unity-gain-compensated dual operational

amplifiers with +20mA output drive capability. The PNP input stage has a typical bias

current of 200nA, and the operating supply voltage is +5V to +20V.

These dual op amps use slew enhancement with special mirror circuitry to achieve fast

response and high gain with low total supply current.

The amplifiers are built on a junction-isolated VIP(TM) (Vertically Integrated PNP)

process which produces fast PNP's that complement the standard NPN's.

Industry Part Number

LM6118

NS Part Numbers

LM6118E/883 *

LM6118J/883 **

Prime Die

LM6118

Controlling Document

5962-9156501M2A*, MPA**

Processing

MIL-STD-883, Method 5004

Subgrp Description

1

2

3

4

5

6

7

8A

8B

9

10

11

12

13

14

Static tests at

Static tests at

Static tests at

Dynamic tests at

Dynamic tests at

Dynamic tests at

Functional tests at

Functional tests at

Functional tests at

Switching tests at

Switching tests at

Switching tests at

Settling time at

Settling time at

Settling time at

Temp (

o

C)

+25

+125

-55

+25

+125

-55

+25

+125

-55

+25

+125

-55

+25

+125

-55

Quality Conformance Inspection

MIL-STD-883, Method 5005

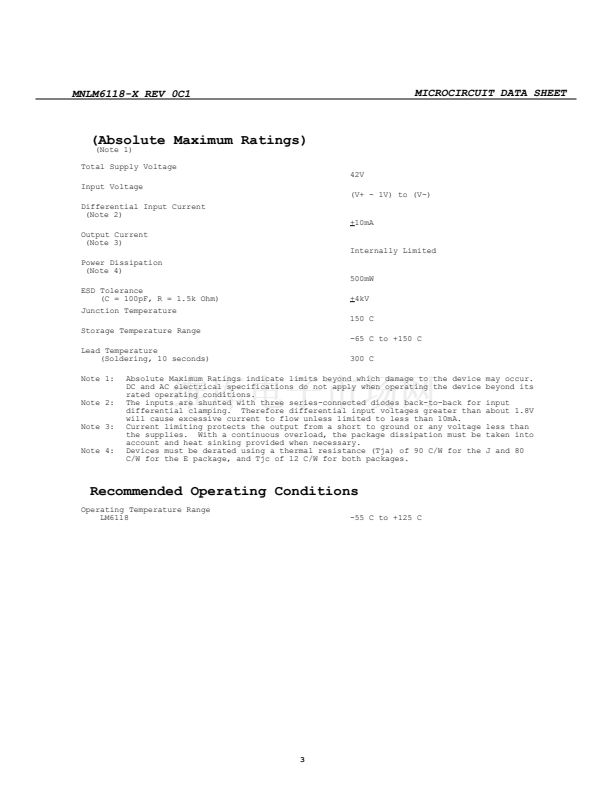

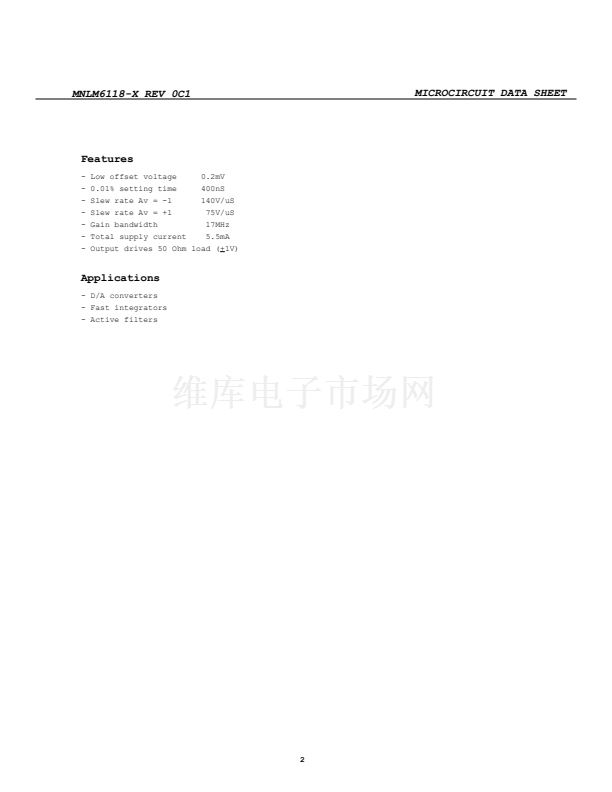

1
