LM4766TF Datasheet

  • LM4766TF

  • AUDIO AMPLIFIER|DUAL|BIPOLAR|ZIP|15PIN|PLASTIC

  • 482.28KB

  • 15頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

LM4766 Overture
鈩?/div>
Audio Power Amplifier Series
Dual 40W Audio Power Amplifier with Mute
PRELIMINARY
September 2000
LM4766
Overture
鈩?/div>
Audio Power Amplifier Series Dual 40W Audio Power
Amplifier with Mute
General Description
The LM4766 is a stereo audio amplifier capable of delivering
typically 40W per channel with the non-isolated 鈥橳鈥?package
and 30W per channel with the isolated 鈥橳F鈥?package of con-
tinuous average output power into an 8鈩?load with less than
0.1% (THD+N).
The performance of the LM4766, utilizing its Self Peak In-
stantaneous Temperature (藲Ke) (SPiKe
鈩?/div>
) Protection Cir-
cuitry, places it in a class above discrete and hybrid amplifi-
ers by providing an inherently, dynamically protected Safe
Operating Area (SOA).
SPiKe
Protection means that these
parts are safeguarded at the output against overvoltage, un-
dervoltage, overloads, including thermal runaway and in-
stantaneous temperature peaks.
Each amplifier within the LM4766 has an independent
smooth transition fade-in/out mute that minimizes output
pops. The IC鈥檚 extremely low noise floor at 2碌V and its ex-
tremely low THD+N value of 0.06% at the rated power make
the LM4766 optimum for high-end stereo TVs or minicompo-
nent systems.
Key Specifications
n
THD+N at 1kHz at 2 x 30W continuous average output
power into 8鈩?
0.1% (max)
n
THD+N at 1kHz at continuous average output power of
2 x 30W into 8鈩?
0.009% (typ)
Features
n
n
n
n
n
SPiKe Protection
Minimal amount of external components necessary
Quiet fade-in/out mute mode
Non-Isolated 15-lead TO-220 package
Wide Supply Range 20V - 78V
Applications
n
High-end stereo TVs
n
Component stereo
n
Compact stereo

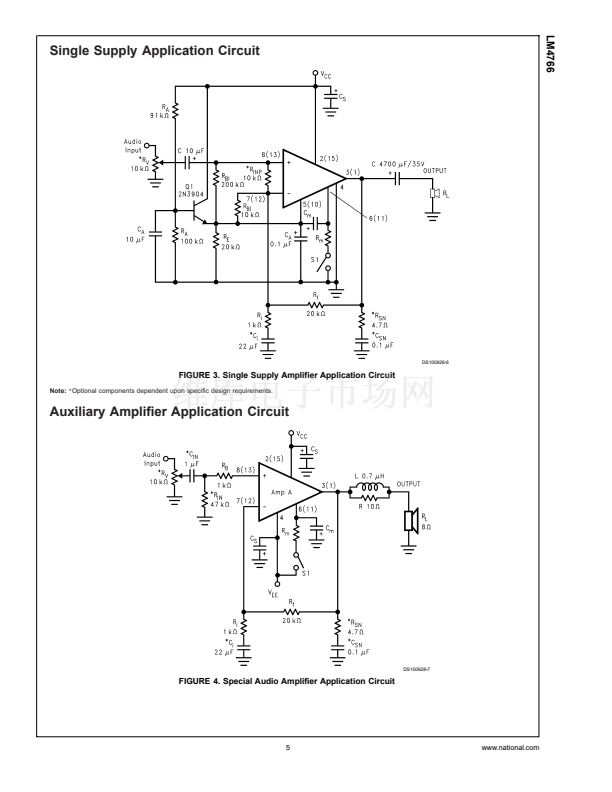

Typical Application
Connection Diagram
Plastic Package
DS100928-2
DS100928-1
Top View
Non-Isolated TO-220 Package
Order Number LM4766T
See NS Package Number TA15A
Isolated TO-220 Package
Order Number LM4766TF
See NS Package Number TF15B
FIGURE 1. Typical Audio Amplifier Application Circuit
Note:
Numbers in parentheses represent pinout for amplifier B.
*
Optional component dependent upon specific design requirements.
SPiKe
鈩?/div>
Protection and
Overture
鈩?/div>
are trademarks of National Semiconductor Corporation.
漏 2000 National Semiconductor Corporation
DS100928
www.national.com

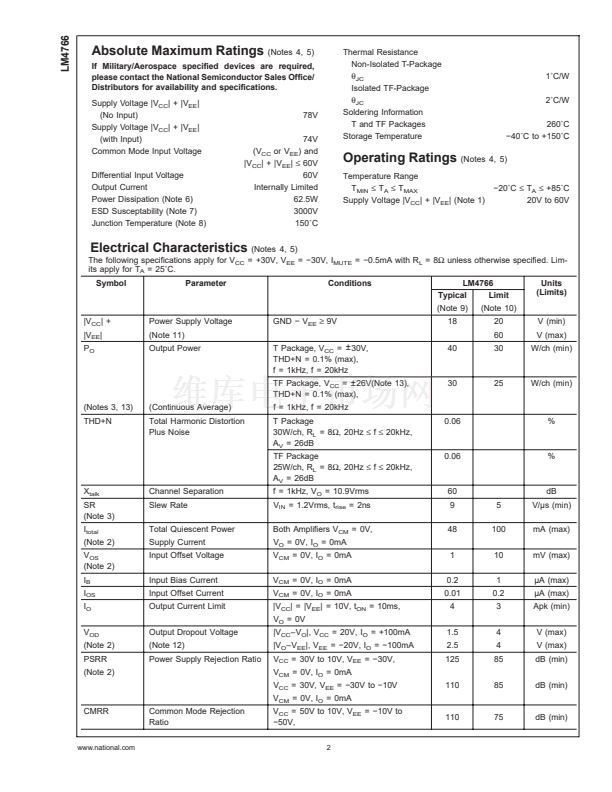

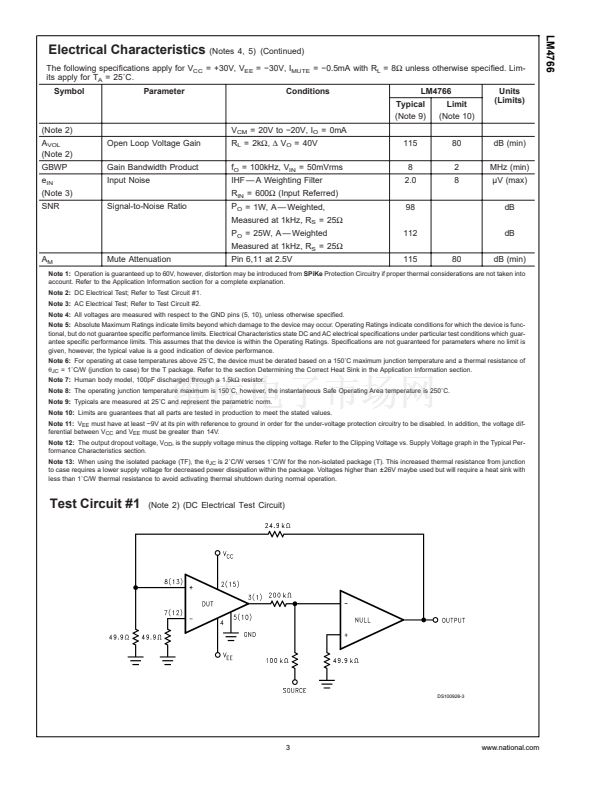

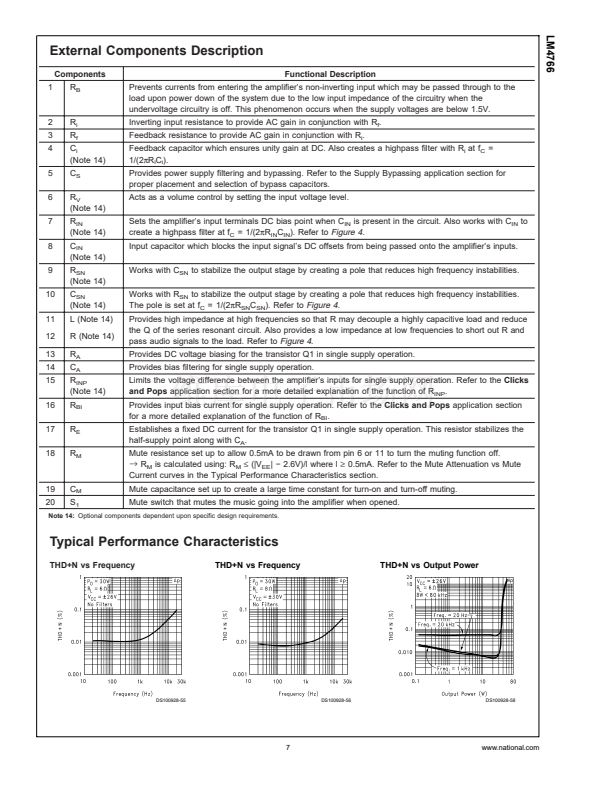

LM4766TF 產品屬性

  • National Semiconductor (TI)

  • Class-AB

  • 30 W x 2 at 8 Ohms

  • 2-Channel Stereo

  • 115 dB

  • 75 dB

  • 0.06 %

  • 18 V

  • 62500 mW

  • + 85 C

  • Through Hole

  • TO-220

  • Tube

  • 8 Ohms

  • +/- 12 V, +/- 15 V, +/- 18 V, +/- 24 V, +/- 28 V

  • 10 mV at +/- 30 V

  • Differential

  • - 20 C

  • Single

  • Single, Dual

  • 60 V

  • 20 V
