Philips Semiconductors
Product specification

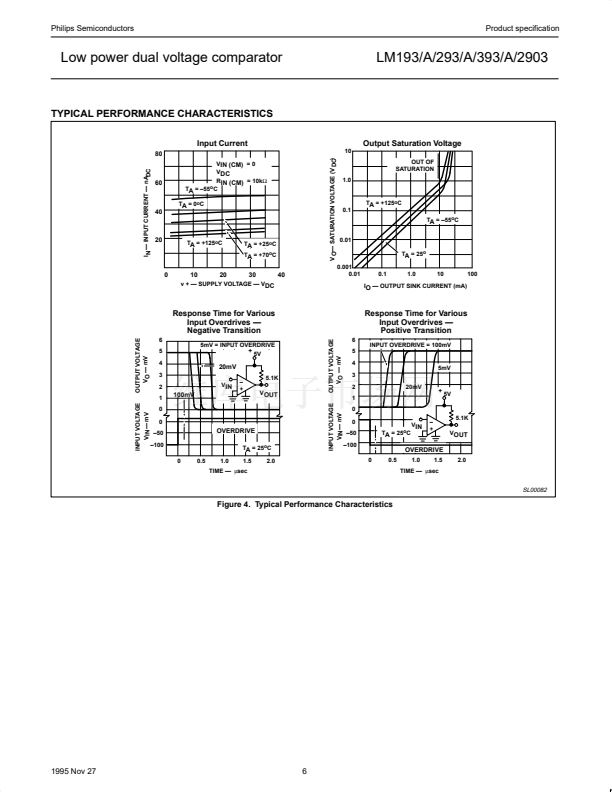

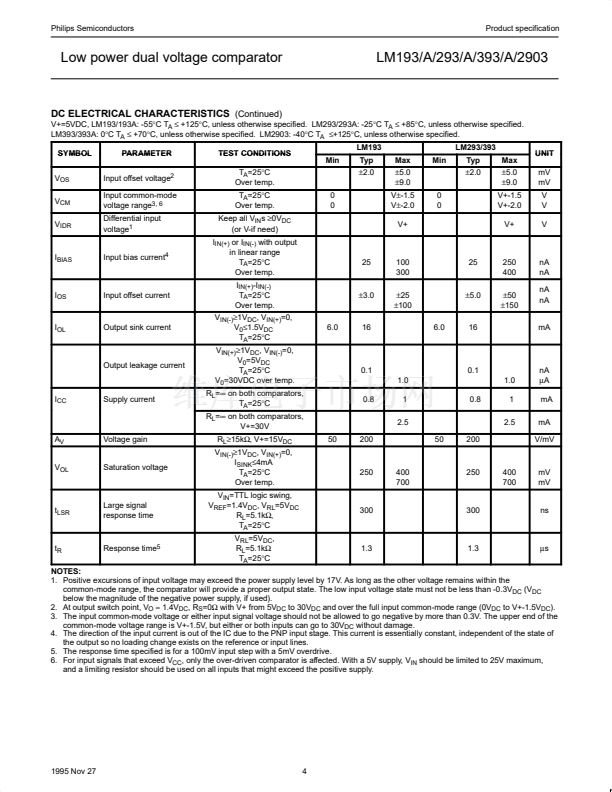

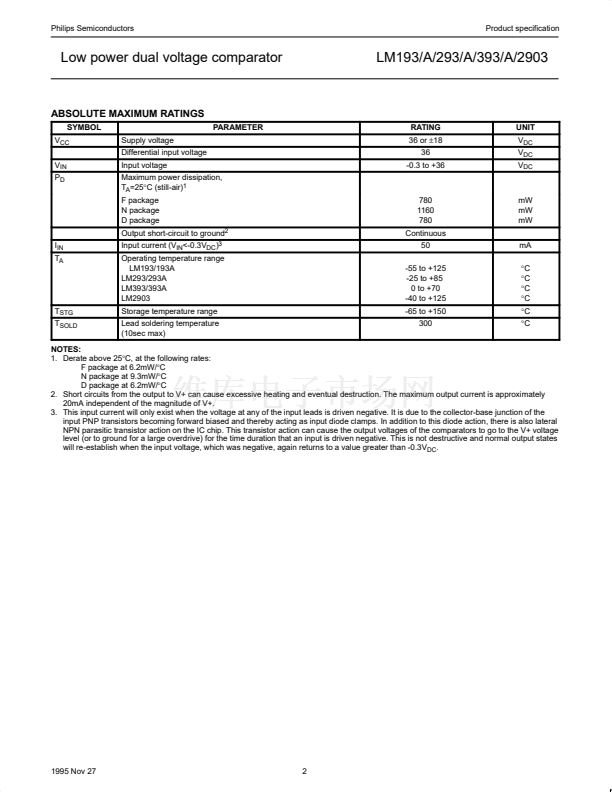

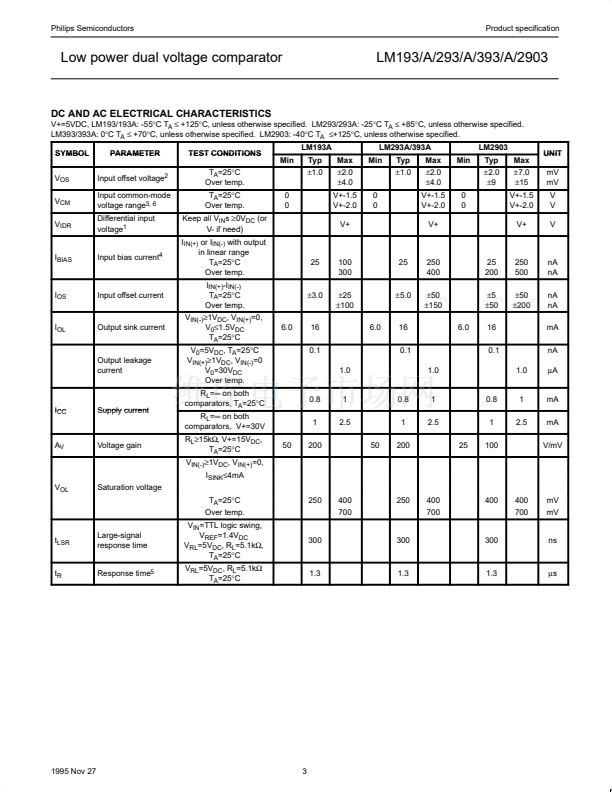

Low power dual voltage comparator
LM193/A/293/A/393/A/2903
DESCRIPTION
The LM193 series consists of two independent precision voltage
comparators with an offset voltage specification as low as 2.0mV
max. for two comparators which were designed specifically to
operate from a single power supply over a wide range of voltages.
Operation from split power supplies is also possible and the low
power supply current drain is independent of the magnitude of the
power supply voltage. These comparators also have a unique
characteristic in that the input common-mode voltage range includes
ground, even though operated from a single power supply voltage.
The LM193 series was designed to directly interface with TTL and
CMOS. When operated from both plus and minus power supplies,
the LM193 series will directly interface with MOS logic where their
low power drain is a distinct advantage over standard comparators.
PIN CONFIGURATION
D, N, FE Packages
OUTPUT A
INVERTING INPUT A
NON鈥揑NVERTING INPUT A
GND
1
2
3
4
A
B
8
7
6
5
V+
OUTPUT B
INVERTING INPUT B
NON鈥揑NVERTING INPUT B
TOP VIEW
SL00079
FEATURES
Figure 1. Pin Configuration
鈥?/div>
Wide single supply voltage range 2.0VDC to 36VDC or dual
supplies
鹵1.0VDC,
to
鹵18VDC
鈥?/div>
Very low supply current drain (0.8mA) independent of supply
voltage (2.0mW/comparator at 5.0VDC)

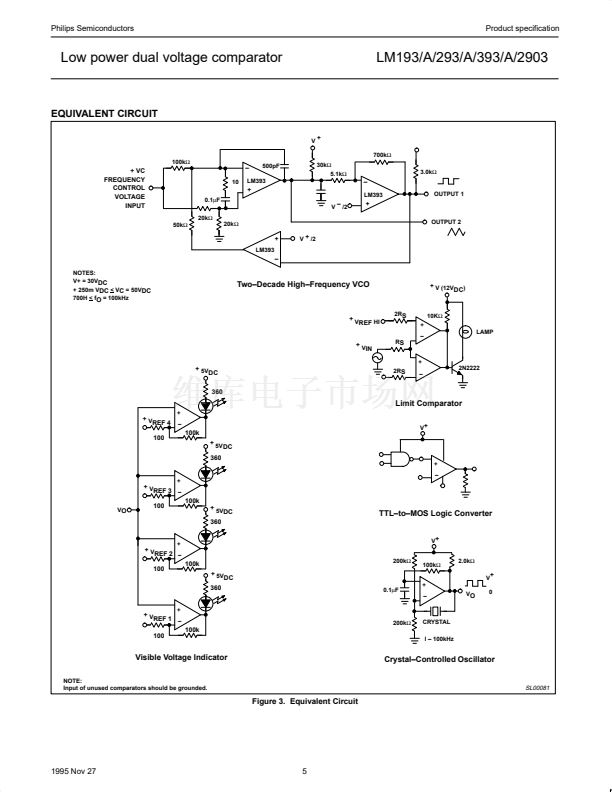

EQUIVALENT CIRCUIT
V
+
鈥?/div>
Low input biasing current 25nA
鈥?/div>
Low input offset current
鹵5nA
and offset voltage
鹵2mV
鈥?/div>
Input common-mode voltage range includes ground
鈥?/div>
Differential input voltage range equal to the power supply voltage
鈥?/div>
Low output 250mV at 4mA saturation voltage
鈥?/div>
Output voltage compatible with TTL, DTL, ECL, MOS and CMOS
logic systems
3.5碌A(chǔ)
100碌A(chǔ)
3.5碌A(chǔ)
100碌A(chǔ)
Q2
Q3
Q4
OUTPUT
+
INPUT
鈥?INPUT
Q1
Q8
Q7
Q5
Q6
APPLICATIONS
鈥?/div>
A/D converters
鈥?/div>
Wide range VCO
鈥?/div>
MOS clock generator
鈥?/div>
High voltage logic gate
鈥?/div>
Multivibrators
ORDERING INFORMATION
DESCRIPTION
8-Pin Ceramic Dual In-Line Package (Cerdip)
8-Pin Ceramic Dual In-Line Package (Cerdip)
8-Pin Plastic Dual In-Line Package (DIP)
8-Pin Plastic Small Outline (SO) Package
8-Pin Plastic Dual In-Line Package (DIP)
8-Pin Ceramic Dual In-Line Package (Cerdip)
8-Pin Ceramic Dual In-Line Package (Cerdip)
8-Pin Plastic Small Outline (SO) Package
8-Pin Plastic Dual In-Line Package (DIP)
8-Pin Plastic Dual In-Line Package (DIP)
8-Pin Plastic Dual In-Line Package (DIP)
8-Pin Plastic Dual In-Line Package (DIP)
(One Comparator Only)
SL00080
Figure 2. Equivalent Circuit
TEMPERATURE RANGE
-55擄C to +125擄C
-25擄C to +85擄C
-25擄C to +85擄C
-25擄C to +85擄C
-25擄C to +85擄C
0 to +70擄C
0 to +70擄C
0 to +70擄C
0 to +70擄C
0 to +70擄C
-40擄C to +125擄C
-40擄C to +125擄C
ORDER CODE
LM193FE
LM293FE
LM293N
LM293D
LM293AN
LM393AFE
LM393FE
LM393D
LM393N
LM393AN
LM2903N
LM2903D
DWG #
0580A
0580A
SOT97-1
SOT96-1
SOT97-1
0580A
0580A
SOT96-1
SOT97-1
SOT97-1
SOT97-1
SOT97-1
1995 Nov 27
1
853-0932 16050
