Order this document by LM324/D
LM324, LM324A,
LM224, LM2902,
Quad Low Power
Operational Amplifiers
The LM324 series are low鈥揷ost, quad operational amplifiers with true
differential inputs. They have several distinct advantages over standard
operational amplifier types in single supply applications. The quad amplifier
can operate at supply voltages as low as 3.0 V or as high as 32 V with
quiescent currents about one鈥揻ifth of those associated with the MC1741 (on
a per amplifier basis). The common mode input range includes the negative
supply, thereby eliminating the necessity for external biasing components in
many applications. The output voltage range also includes the negative
power supply voltage.
鈥?/div>
Short Circuited Protected Outputs
LM2902V
QUAD DIFFERENTIAL INPUT
OPERATIONAL AMPLIFIERS
SEMICONDUCTOR
TECHNICAL DATA
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
True Differential Input Stage
Single Supply Operation: 3.0 V to 32 V
Low Input Bias Currents: 100 nA Maximum (LM324A)
Four Amplifiers Per Package
Internally Compensated
Common Mode Range Extends to Negative Supply
Industry Standard Pinouts
ESD Clamps on the Inputs Increase Ruggedness without Affecting
Device Operation
14
1
14
1

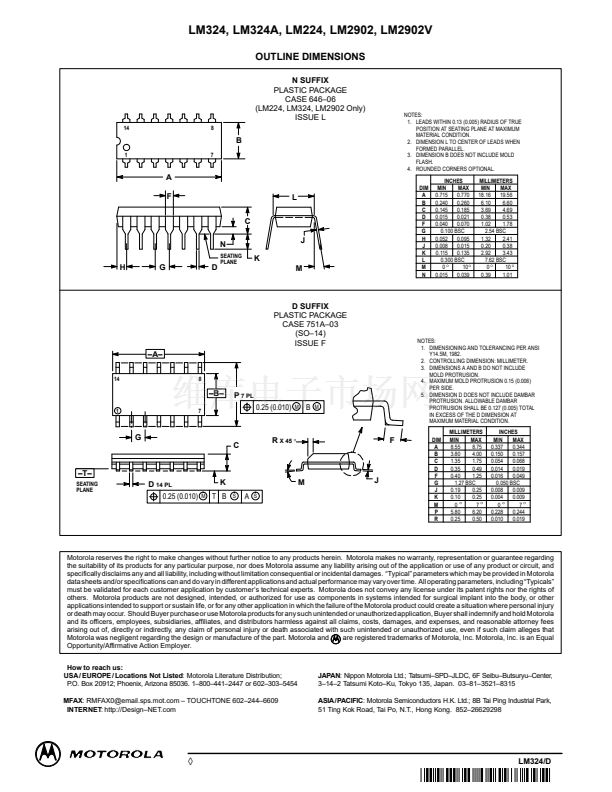

N SUFFIX
PLASTIC PACKAGE
CASE 646
(LM224, LM324,
LM2902 Only)
D SUFFIX
PLASTIC PACKAGE
CASE 751A
(SO鈥?4)
PIN CONNECTIONS
Out 1
Inputs 1
1
2
14
Out 4
Inputs 4
MAXIMUM RATINGS
(TA = + 25擄C, unless otherwise noted.)
Rating
Power Supply Voltages
Single Supply
Split Supplies
Input Differential
Voltage Range (See
Note 1)
Input Common Mode
Voltage Range
Output Short Circuit
Duration
Junction Temperature
Storage Temperature
Range
Operating Ambient
Temperature Range
NOTE:
1. Split Power Supplies.
3
*
1
)
)
2
*
4
*
)
)
*
13
12
11
10
9
8
Symbol
VCC
VCC, VEE
VIDR
LM224
LM324, LM324A
32
鹵16
鹵32
LM2902,
LM2902V
26
鹵13
鹵26
VCC
Unit
Vdc
Inputs 2
4
5
6
VEE, Gnd
Inputs 3
Out 3
3
Out 2
Vdc
7
(Top View)
VICR
tSC
TJ
Tstg
TA
鈥?.3 to 32
鈥?.3 to 26
Vdc
ORDERING INFORMATION
Device
LM2902D
LM2902N
LM2902VD
LM2902VN
LM224D
LM224N
LM324AD
LM324AN
LM324D
LM324N
Operating
Temperature Range
TA = 鈥?0擄 to +105擄C
TA = 鈥?0擄 to +125擄C
TA = 鈥?5擄 to +85擄C
Package
SO鈥?4
Plastic DIP
SO鈥?4
Plastic DIP
SO鈥?4
Plastic DIP
SO鈥?4
Plastic DIP
SO鈥?4
Plastic DIP
Rev 3
Continuous
150
鈥?5 to +150
鈥?5 to +85
0 to +70
鈥?0 to +105
鈥?0 to +125
擄C
擄C
擄C
TA = 0擄 to +70擄C
漏
Motorola, Inc. 1996
MOTOROLA ANALOG IC DEVICE DATA
1
