LM2465 Monolithic Triple 5.5 ns High Gain CRT Driver
March 2001
LM2465
Monolithic Triple 5.5 ns High Gain CRT Driver
General Description
The LM2465 is an integrated high voltage CRT driver circuit
designed for use in color monitor applications. The IC
contains three high input impedance, wide band amplifiers
which directly drive the RGB cathodes of a CRT. Each
channel has its gain internally set to 鈭?0 and can drive CRT
capacitive loads as well as resistive loads present in other
applications, limited only by the package鈥檚 power dissipation.
The IC is packaged in an industry standard 9-lead TO-220
molded plastic package.
Features
n
Higher gain to match LM126X CMOS preamplifiers
n
0V to 3.75V input range
n
Stable with 0鈥?0 pF capacitive loads and inductive
peaking networks
n
Same pinout as LM2467/8/9, maintaining the standard
LM243X Family pinout for easy PCB layout
n
Convenient TO-220 staggered lead package style
Applications
n
Up to 1280 x 1024 at 75Hz
n
Pixel clock frequencies up to 135 MHz
n
Monitors using video blanking
Schematic and Connection Diagrams
DS200190-2
Note:
Tab is at GND
Top View
Order Number LM2465TA
DS200190-1
FIGURE 1. Simplified Schematic Diagram
(One Channel)
漏 2001 National Semiconductor Corporation
DS200190

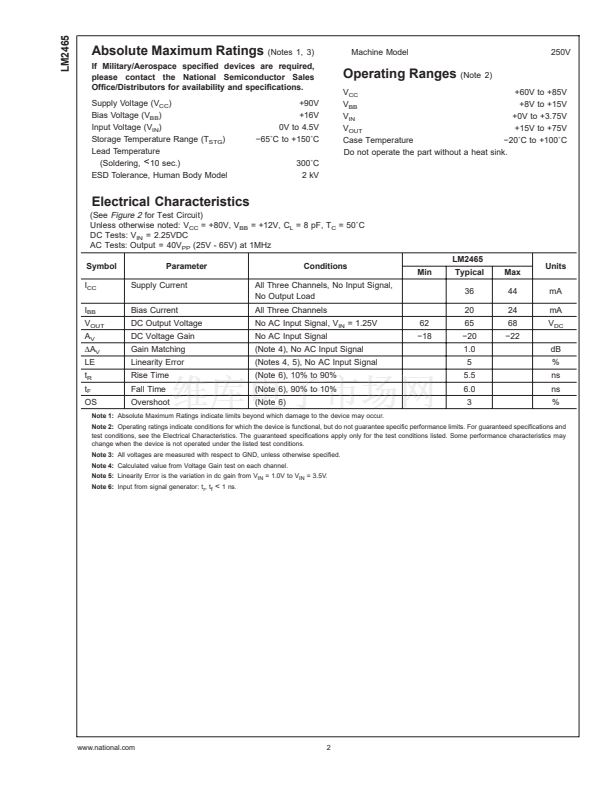

www.national.com
