LM140JAN Datasheet

  • LM140JAN

  • National Semiconductor [Three Terminal Positive Regulators]

  • NSC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

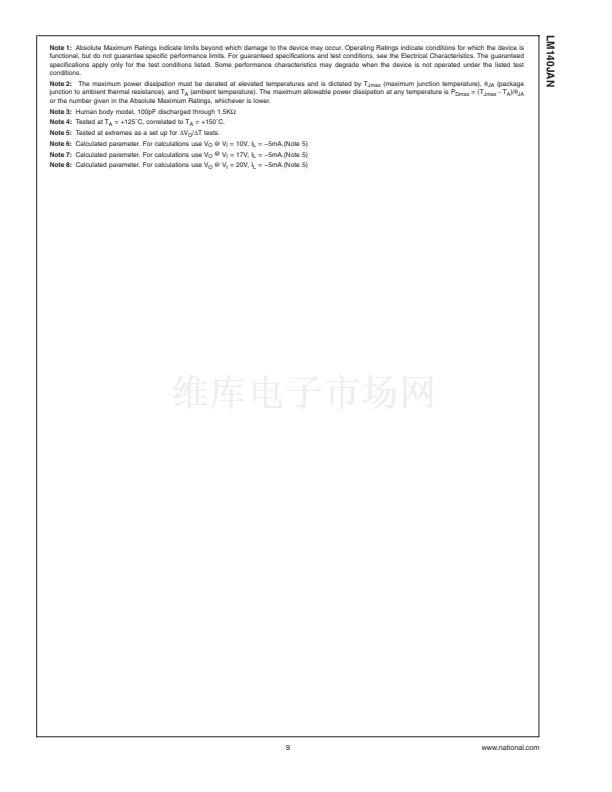

LM140JAN Three Terminal Positive Regulators
February 2006
LM140JAN
Three Terminal Positive Regulators
General Description
The monolithic 3-terminal positive voltage regulators employ
internal current-limiting, thermal shutdown and safe-area
compensation, making them essentially indestructible. If ad-
equate heat sinking is provided, they can deliver over 0.5A
and 1.0A output current. They are intended as fixed voltage
regulators in a wide range of applications including local
(on-card) regulation for elimination of noise and distribution
problems associated with single-point regulation. In addition
to use as fixed voltage regulators, these devices can be
used with external components to obtain adjustable output
voltages and currents.
Considerable effort was expended to make the entire series
of regulators easy to use and minimize the number of exter-
nal components. It is not necessary to bypass the output,
although this does improve transient response. Input by-
passing is needed only if the regulator is located far from the
filter capacitor of the power supply.
Features
n
n
n
n
n
Complete specifications at 0.5A and 1.0A loads
No external components
Internal thermal overload protection
Internal short circuit current-limiting
Output transistor safe-area compensation
Ordering Information
NS Part Number

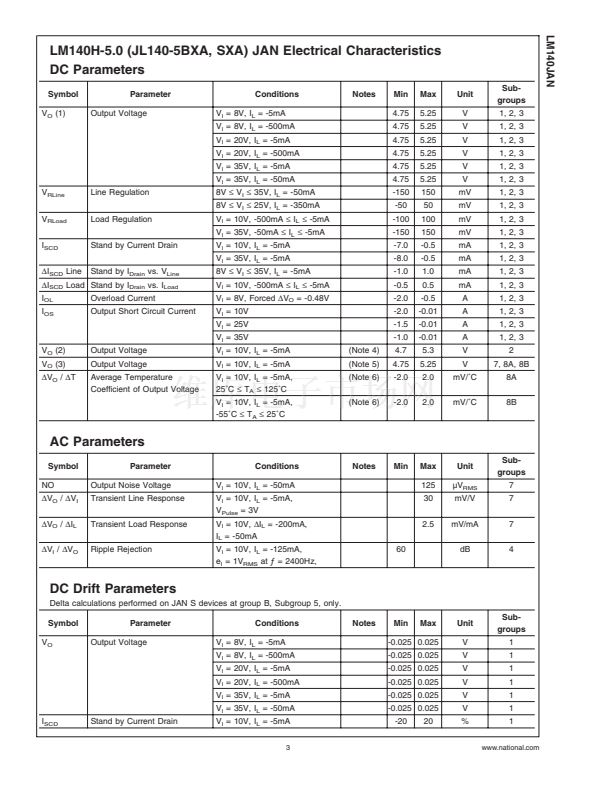

JL140-5BXA

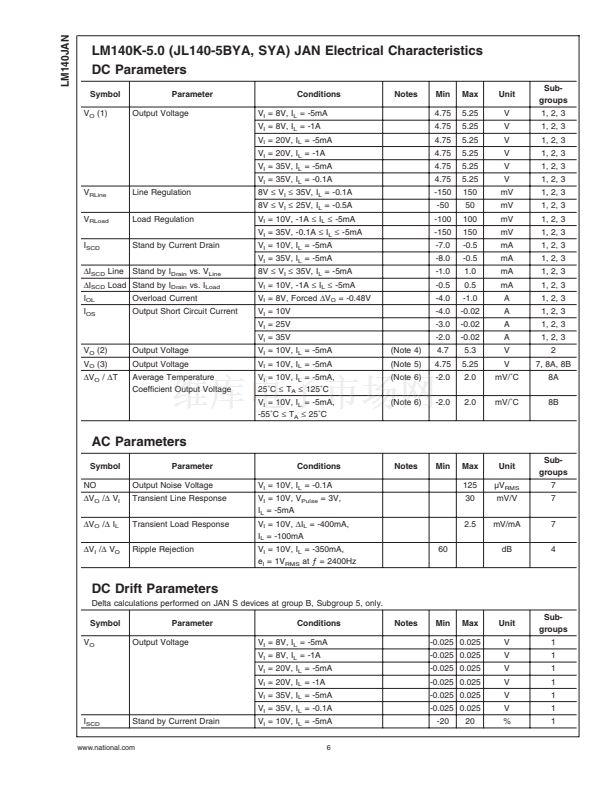

JL140-5BYA
JL140-5SXA
JL140-5SYA

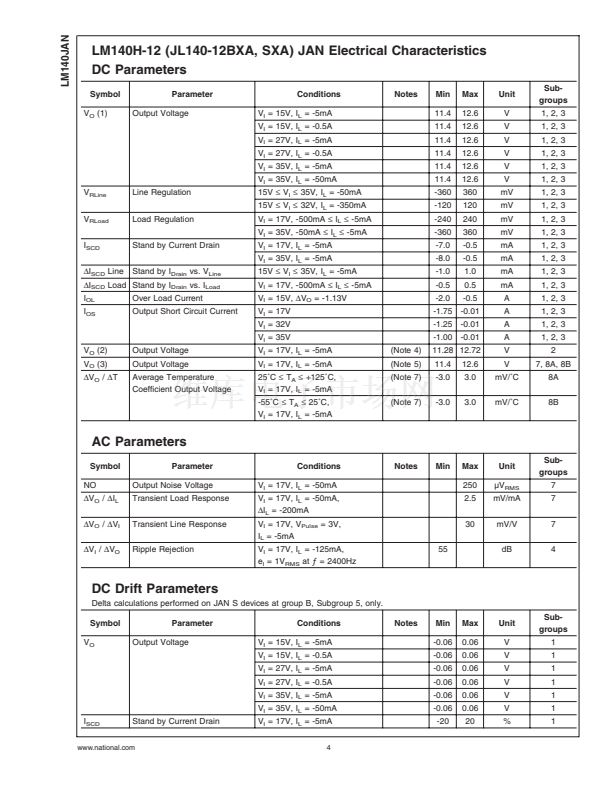

JL140-12BXA

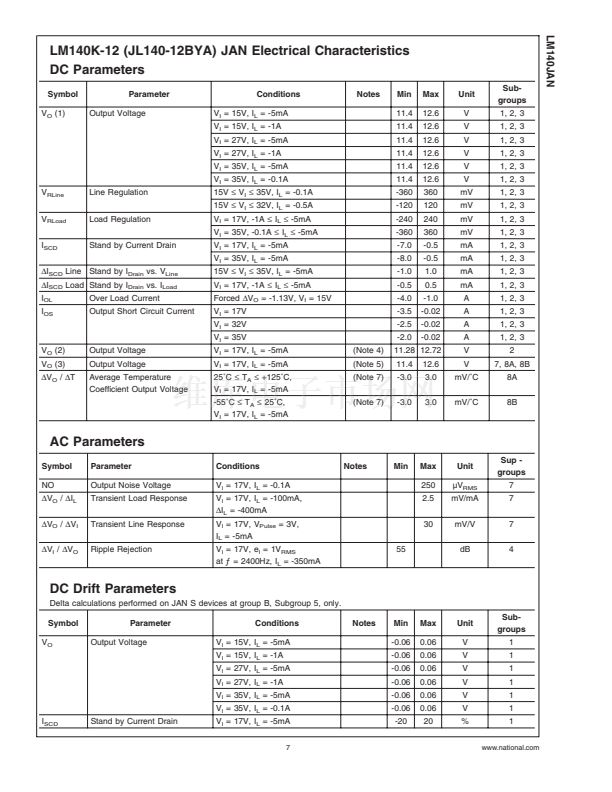

JL140-12BYA
JL140-12SXA

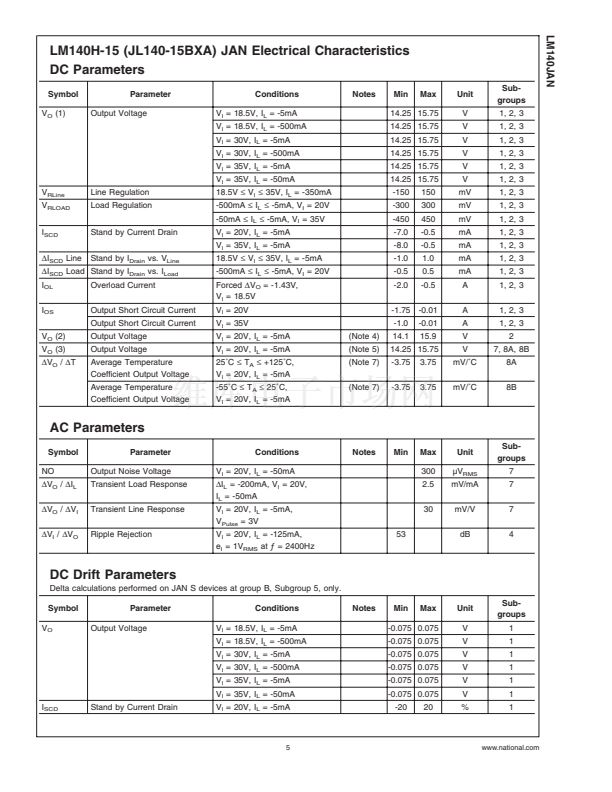

JL140-15BXA

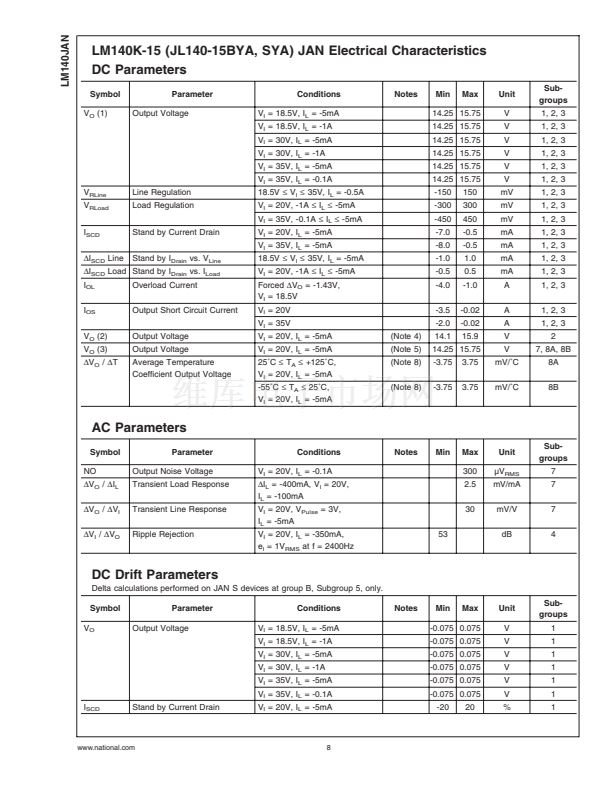

JL140-15BYA
JL140-15SYA
SMD Part Number
JM38510/10702BXA
JM38510/10706BYA
JM38510/10702SXA
JM38510/10706SYA
JM38510/10703BXA
JM38510/10707BYA
JM38510/10703SXA
JM38510/10704BXA
JM38510/10708BYA
JM38510/10708SYA
NS Package Number
H03A
K02C
H03A
K02C
H03A
K02C
H03A
H03A
K02C
K02C
Package Description
3LD TO-39 Metal Can
2LD TO-3 Metal Can
3LD TO-39 Metal Can
2LD TO-3 Metal Can
3LD TO-39 Metal Can
2LD TO-3 Metal Can
3LD TO-39 Metal Can
3LD TO-39 Metal Can
2LD TO-3 Metal Can
2LD TO-3 Metal Can
Connection Diagrams
Steel Metal Can TO-39 Package (H)
TO-3 Metal Can (K)
20164602
20164601
Bottom View

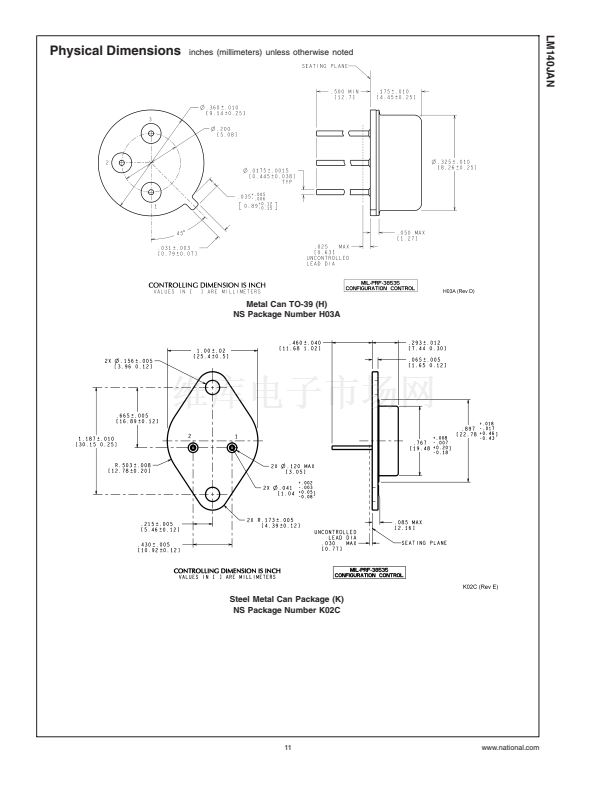

See NS Package Number H03A
Bottom View
See NS Package Number K02C
漏 2006 National Semiconductor Corporation
DS201646
www.national.com
