LM10 Operational Amplifier and Voltage Reference
May 1998
LM10
Operational Amplifier and Voltage Reference
General Description
The LM10 series are monolithic linear ICs consisting of a
precision reference, an adjustable reference buffer and an
independent, high quality op amp.
The unit can operate from a total supply voltage as low as
1.1V or as high as 40V, drawing only 270碌A(chǔ). A complemen-
tary output stage swings within 15 mV of the supply termi-
nals or will deliver
鹵
20 mA output current with
鹵
0.4V satura-
tion. Reference output can be as low as 200 mV.
The circuit is recommended for portable equipment and is
completely specified for operation from a single power cell.
In contrast, high output-drive capability, both voltage and
current, along with thermal overload protection, suggest it in
demanding general-purpose applications.
The device is capable of operating in a floating mode, inde-
pendent of fixed supplies. It can function as a remote com-
parator, signal conditioner, SCR controller or transmitter for
analog signals, delivering the processed signal on the same
line used to supply power. It is also suited for operation in a
wide range of voltage- and current-regulator applications,
from low voltages to several hundred volts, providing greater
precision than existing ICs.
This series is available in the three standard temperature
ranges, with the commercial part having relaxed limits. In ad-
dition, a low-voltage specification (suffix 鈥淟鈥? is available in
the limited temperature ranges at a cost savings.
Features
n
n
n
n
n
n

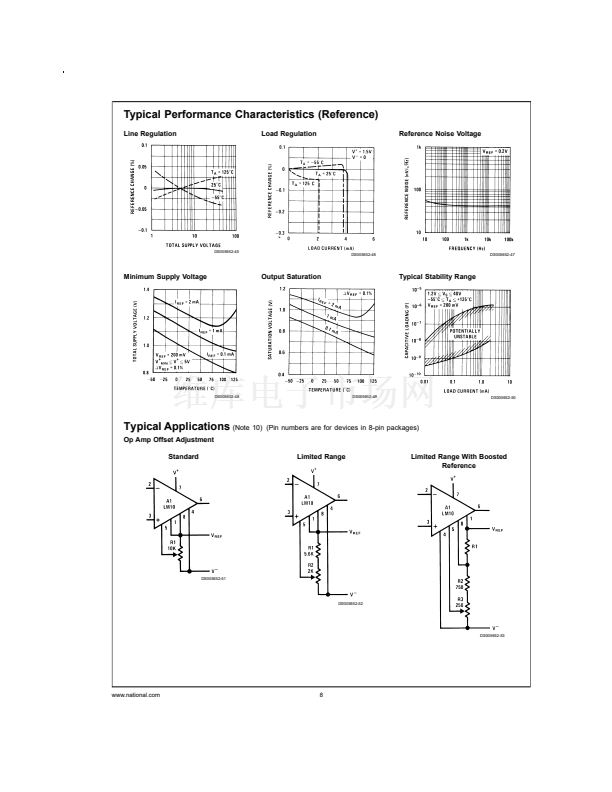

input offset voltage: 2.0 mV (max)
input offset current: 0.7 nA (max)
input bias current: 20 nA (max)
reference regulation: 0.1% (max)
offset voltage drift: 2碌V/藲C
reference drift: 0.002%/藲C

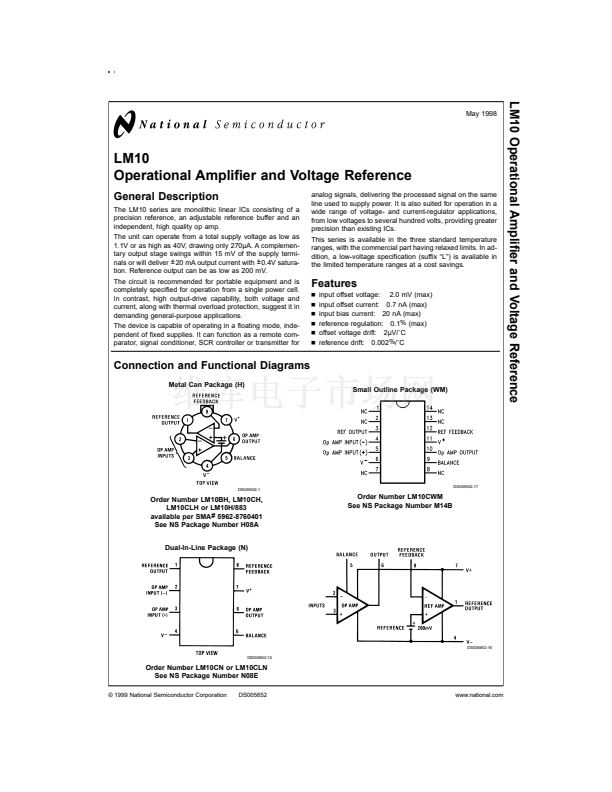

Connection and Functional Diagrams
Metal Can Package (H)
Small Outline Package (WM)
DS005652-1
DS005652-17
Order Number LM10BH, LM10CH,
LM10CLH or LM10H/883
available per SMA# 5962-8760401
See NS Package Number H08A

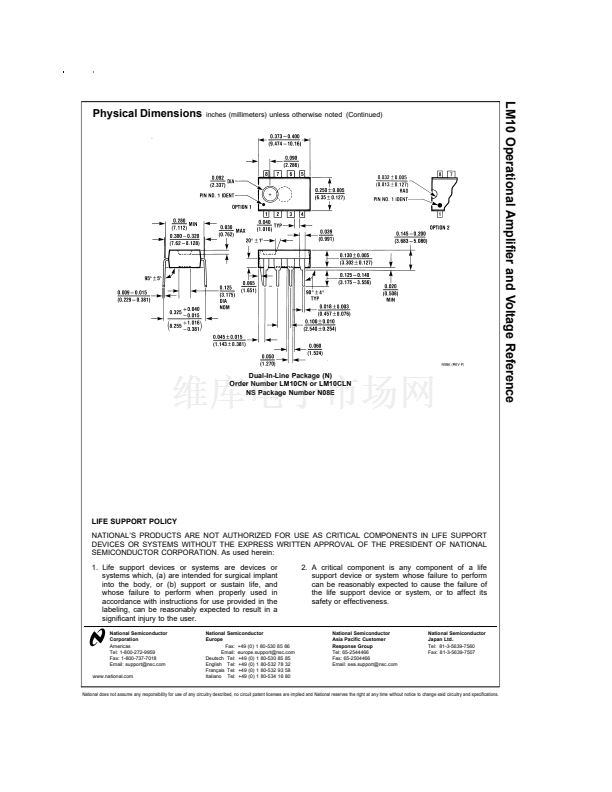

Dual-In-Line Package (N)
Order Number LM10CWM
See NS Package Number M14B
DS005652-16
DS005652-15
Order Number LM10CN or LM10CLN
See NS Package Number N08E
漏 1999 National Semiconductor Corporation
DS005652
www.national.com
