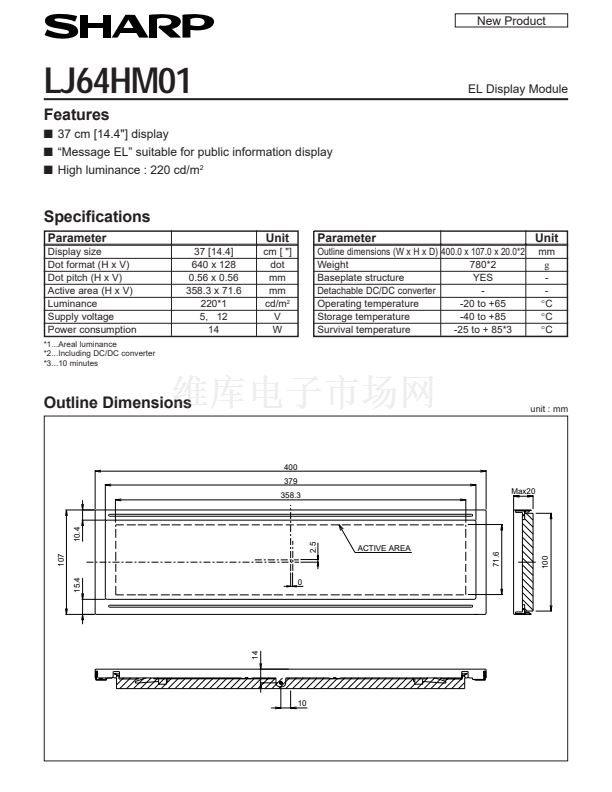

New Product
LJ64HM01
Features
n
n
n
37 cm [14.4"] display
鈥淢essage EL鈥?suitable for public information display
High luminance : 220 cd/m
2
EL Display Module
Specifications
Parameter
Display size
Dot format (H x V)
Dot pitch (H x V)
Active area (H x V)
Luminance
Supply voltage
Power consumption
*1...Areal luminance
*2...Including DC/DC converter
*3...10 minutes
Unit
37 [14.4]
640 x 128
0.56 x 0.56
358.3 x 71.6
220*1
5, 12
14
cm [ "]
dot
mm
mm
cd/m
2
V
W
Parameter
Outline dimensions (W x H x D) 400.0 x 107.0 x 20.0*2
Weight
780*2
Baseplate structure
YES
Detachable DC/DC converter
-
Operating temperature
-20 to +65
Storage temperature
-40 to +85
Survival temperature
-25 to + 85*3
Unit
mm
g
-
-
鈭?/div>
C
鈭?/div>
C
鈭?/div>
C
Outline Dimensions
unit : mm
400
379
358.3
Max20
10.4
2.5
71.6
ACTIVE AREA
107
15.4
0
14
10
100
1
