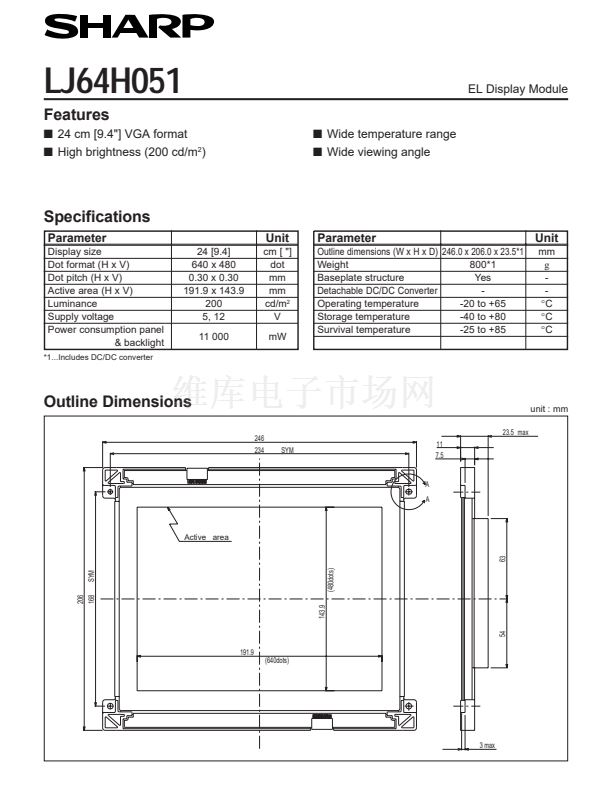

Mass-production
LJ64H051
Features
n
n
24 cm [9.4"] VGA format
High brightness (200 cd/m
2
)
n
n
Wide temperature range
Wide viewing angle
EL Display Module
Specifications
Parameter
Display size
Dot format (H x V)
Dot pitch (H x V)
Active area (H x V)
Luminance
Supply voltage
Power consumption panel
& backlight
*1...Includes DC/DC converter
Unit
24 [9.4]
640 x 480
0.30 x 0.30
191.9 x 143.9
200
5, 12
11 000
cm [ "]
dot
mm
mm
cd/m
2
V
mW
Parameter
Outline dimensions (W x H x D) 246.0 x 206.0 x 23.5*1
Weight
800*1
Baseplate structure
Yes
Detachable DC/DC Converter
-
Operating temperature
-20 to +65
Storage temperature
-40 to +80
Survival temperature
-25 to +85
Unit
mm
g
-
-
鈭?/div>
C
鈭?/div>
C
鈭?/div>
C
Outline Dimensions
246
234
23.5 max
SYM
11
7.5
unit : mm
A
A
Active area
63
206
168
143.9
(480dots)
SYM
191.9
(640dots)
3 max
54
1
