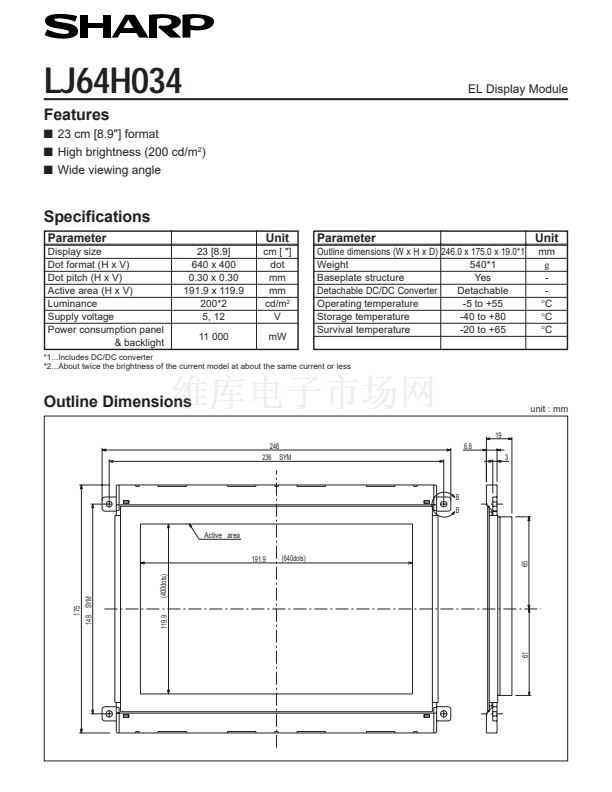

Mass-production
LJ64H034
Features
n
n
n
23 cm [8.9"] format
High brightness (200 cd/m
2
)
Wide viewing angle
EL Display Module
Specifications
Parameter
Display size
Dot format (H x V)
Dot pitch (H x V)
Active area (H x V)
Luminance
Supply voltage
Power consumption panel
& backlight
23 [8.9]
640 x 400
0.30 x 0.30
191.9 x 119.9
200*2
5, 12
11 000
Unit
cm [ "]
dot
mm
mm
cd/m
2
V
mW
Parameter
Outline dimensions (W x H x D) 246.0 x 175.0 x 19.0*1
Weight
540*1
Baseplate structure
Yes
Detachable DC/DC Converter
Detachable
Operating temperature
-5 to +55
Storage temperature
-40 to +80
Survival temperature
-20 to +65
Unit
mm
g
-
-
鈭?/div>
C
鈭?/div>
C
鈭?/div>
C
*1...Includes DC/DC converter
*2...About twice the brightness of the current model at about the same current or less
Outline Dimensions
19
246
236 SYM
6.8
3
unit : mm
B
B
Active area
191.9
(640dots)
175
148
SYM
119.9
(400dots)
61
65
1
