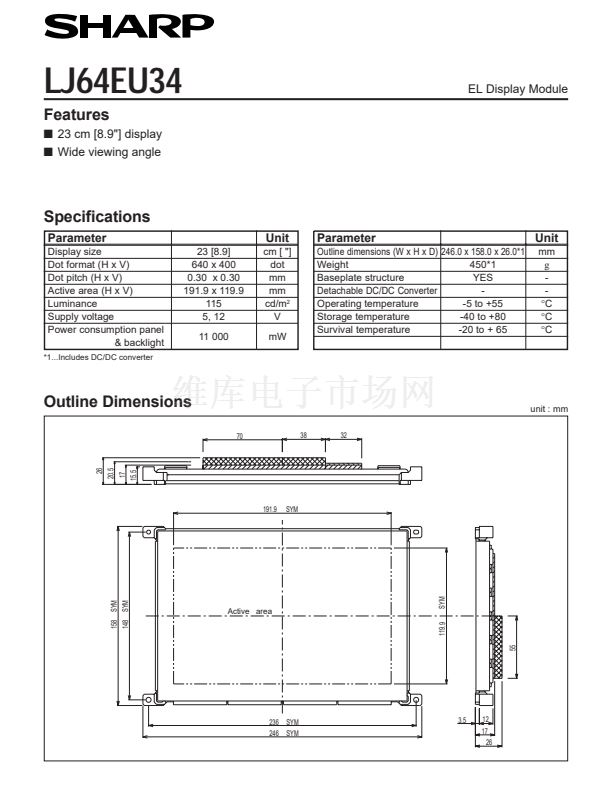

Mass-production
LJ64EU34
Features
n
n
23 cm [8.9"] display
Wide viewing angle
EL Display Module
Specifications
Parameter
Display size
Dot format (H x V)
Dot pitch (H x V)
Active area (H x V)
Luminance
Supply voltage
Power consumption panel
& backlight
*1...Includes DC/DC converter
Unit
23 [8.9]
640 x 400
0.30 x 0.30
191.9 x 119.9
115
5, 12
11 000
cm [ "]
dot
mm
mm
cd/m
2
V
mW
Parameter
Outline dimensions (W x H x D) 246.0 x 158.0 x 26.0*1
Weight
450*1
Baseplate structure
YES
Detachable DC/DC Converter
-
Operating temperature
-5 to +55
Storage temperature
-40 to +80
Survival temperature
-20 to + 65
Unit
mm
g
-
-
鈭?/div>
C
鈭?/div>
C
鈭?/div>
C
Outline Dimensions
70
38
32
unit : mm
26
20.5
17
15.5
191.9
SYM
158
SYM
148
SYM
Active area
119.9
SYM
236 SYM
246 SYM
3.5
12
17
26
55
1
