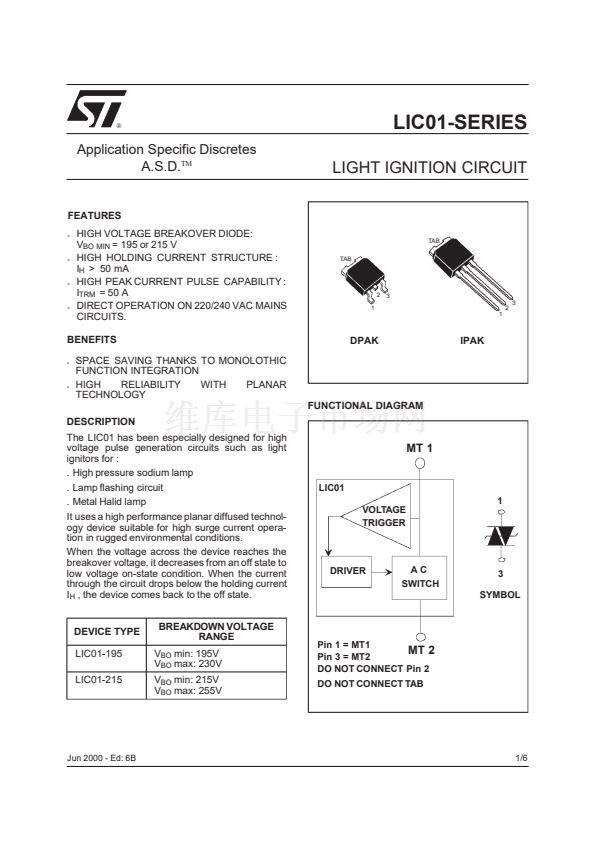

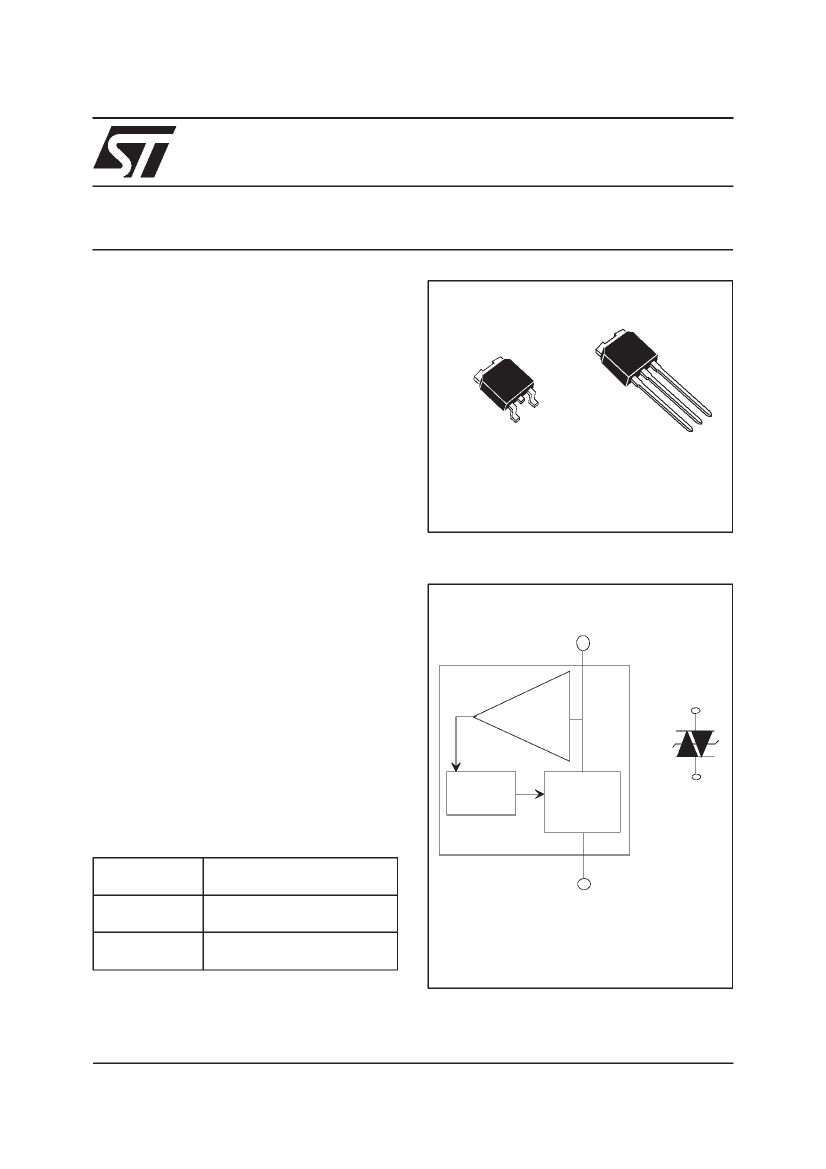

LIC01-SERIES
LIGHT IGNITION CIRCUIT
Application Specific Discretes
A.S.D.
TM
FEATURES
n
n
n
n
HIGH VOLTAGE BREAKOVER DIODE:
V
BO MIN
= 195 or 215 V
HIGH HOLDING CURRENT STRUCTURE :
I
H
> 50 mA
HIGH PEAK CURRENT PULSE CAPABILITY :
I
TRM
= 50 A
DIRECT OPERATION ON 220/240 VAC MAINS
CIRCUITS.
TAB
TAB
2
1
3
2
1
3
BENEFITS
n
DPAK
IPAK
n
SPACE SAVING THANKS TO MONOLOTHIC
FUNCTION INTEGRATION
HIGH
RELIABILITY
WITH
PLANAR
TECHNOLOGY
FUNCTIONAL DIAGRAM
DESCRIPTION
The LIC01 has been especially designed for high
voltage pulse generation circuits such as light
ignitors for :
. High pressure sodium lamp
. Lamp flashing circuit
. Metal Halid lamp
It uses a high performance planar diffused technol-
ogy device suitable for high surge current opera-
tion in rugged environmental conditions.
When the voltage across the device reaches the
breakover voltage, it decreases from an off state to
low voltage on-state condition. When the current
through the circuit drops below the holding current
I
H
, the device comes back to the off state.
BREAKDOWN VOLTAGE
RANGE
V
BO
min: 195V
V
BO
max: 230V
V
BO
min: 215V
V
BO
max: 255V
MT 1
LIC01
1
VOLTAGE
TRIGGER
DRIVER
AC
SWITCH
3
SYMBOL
DEVICE TYPE
LIC01-195
LIC01-215
Pin 1 = MT1
MT 2
Pin 3 = MT2
DO NOT CONNECT Pin 2
DO NOT CONNECT TAB
Jun 2000 - Ed: 6B
1/6
