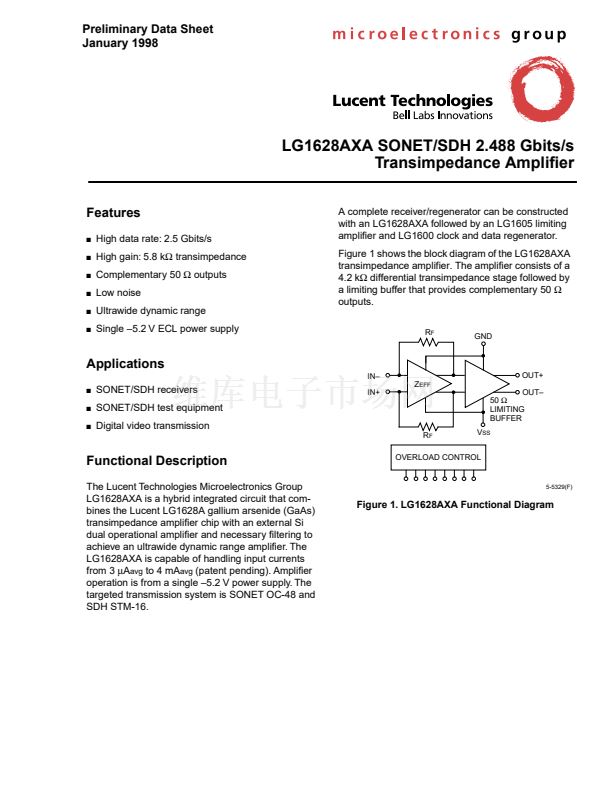

Preliminary Data Sheet
January 1998
LG1628AXA SONET/SDH 2.488 Gbits/s
Transimpedance Ampli鏗乪r
Features
s
s
s
s
s
s
High data rate: 2.5 Gbits/s
High gain: 5.8 k
鈩?/div>
transimpedance
Complementary 50
鈩?/div>
outputs
Low noise
Ultrawide dynamic range
Single 鈥?.2 V ECL power supply
A complete receiver/regenerator can be constructed
with an LG1628AXA followed by an LG1605 limiting
ampli鏗乪r and LG1600 clock and data regenerator.
Figure 1 shows the block diagram of the LG1628AXA
transimpedance amplifier. The amplifier consists of a
4.2 k
鈩?/div>
differential transimpedance stage followed by
a limiting buffer that provides complementary 50
鈩?/div>
outputs.
R
F
GND
Applications
IN鈥?/div>
s
s
s
OUT+
Z
EFF
OUT鈥?/div>
50
鈩?/div>
LIMITING
BUFFER
R
F
V
SS
SONET/SDH receivers
SONET/SDH test equipment
Digital video transmission
IN+
Functional Description
The Lucent Technologies Microelectronics Group
LG1628AXA is a hybrid integrated circuit that com-
bines the Lucent LG1628A gallium arsenide (GaAs)
transimpedance ampli鏗乪r chip with an external Si
dual operational ampli鏗乪r and necessary 鏗乴tering to
achieve an ultrawide dynamic range ampli鏗乪r. The
LG1628AXA is capable of handling input currents
from 3
碌
A
avg
to 4 mA
avg
(patent pending). Ampli鏗乪r
operation is from a single 鈥?.2 V power supply. The
targeted transmission system is SONET OC-48 and
SDH STM-16.
OVERLOAD CONTROL
5-5329(F)
Figure 1. LG1628AXA Functional Diagram
