Ordering number : EN*5420
CMOS LSI
LC89962, LC89962M
NTSC Format Delay Line
Overview
The LC89962 and LC89962M are delay line circuits that
provide a delayed signal by a 1H period of NTSC format
with an external low-pass filter.
Package Dimensions
unit: mm
3001B-DIP8
[LC89962]
Features
鈥?Requires only the input of a 3.58-MHz clock to produce
a 1H delayed signal and the external low-pass filter.
鈥?Uses a 5-V single-voltage power supply.
鈥?Requires a minimal number of external components due
to the peripheral components provided on chip.
鈥?Output signal has the same phase as the input signal.
鈥?Operation has a 4fsc clock synchronized with the input
clock allows these products to be used as wide
bandwidth delay lines.
鈥?A 4fsc clock can be output from the 4FSC pin (pin 7).
Functions
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
906-bit CCD shift register
Timing generator and CCD driver circuits
Auto-bias circuit
Sync-tip clamp circuit
Sample-and-hold and output amplifier circuits
4
脳
PLL circuit
4fsc output circuit
unit: mm
3032B-MFP8
[LC89962M]
SANYO: DIP8

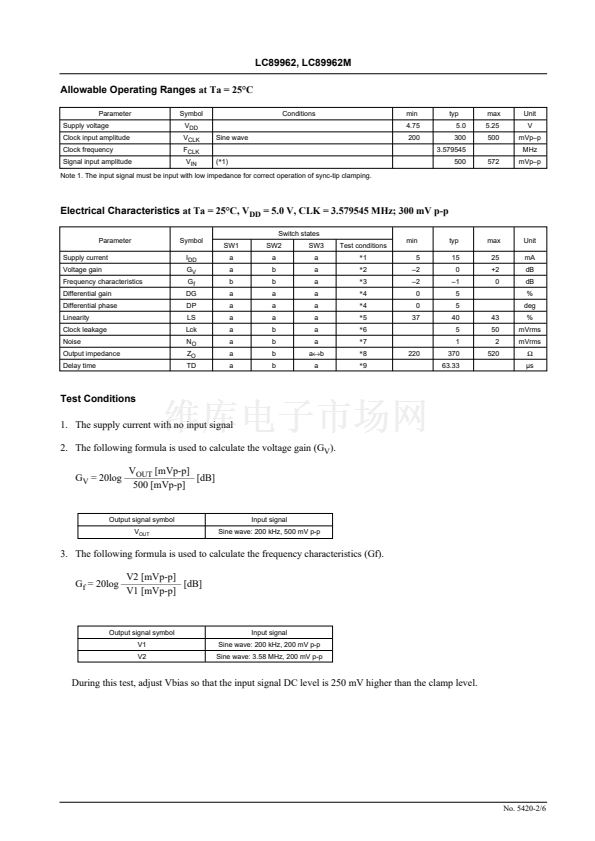

Specifications
Absolute Maximum Ratings
at Ta = 25擄C
Parameter
Supply voltage
Allowable power dissipation
Operating temperature
Storage temperature
Symbol
V
DD
LC89962
Pd max
Topr
Tstg
LC89962M
Conditions
SANYO: MFP8
Ratings
鈥?.3 to +6.0
400
140
鈥?0 to +60
鈥?5 to +125
Unit
V
mW
mW
擄C
擄C
SANYO Electric Co.,Ltd. Semiconductor Bussiness Headquarters
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110 JAPAN
93096HA (OT) No. 5420-1/6
