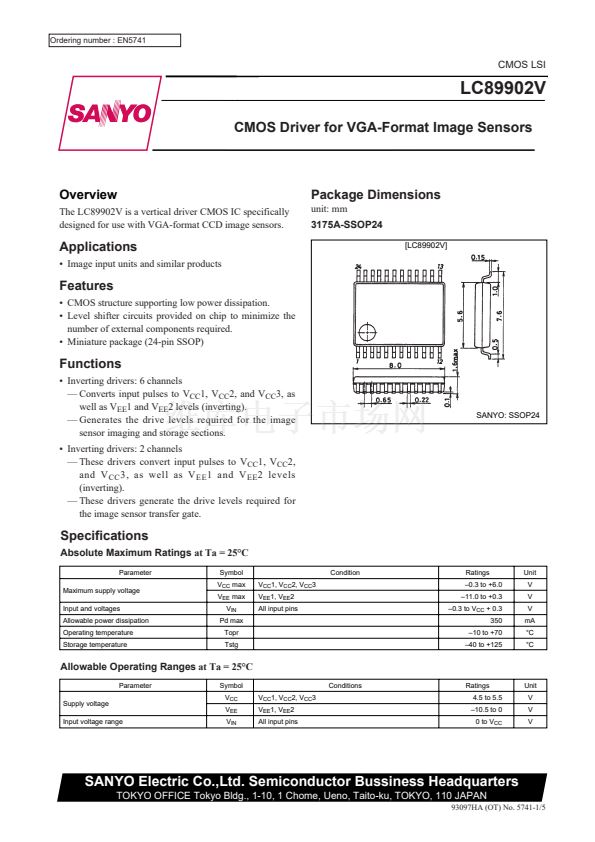

Ordering number : EN5741
CMOS LSI
LC89902V
CMOS Driver for VGA-Format Image Sensors
Overview
The LC89902V is a vertical driver CMOS IC specifically
designed for use with VGA-format CCD image sensors.
Package Dimensions
unit: mm
3175A-SSOP24
[LC89902V]
Applications
鈥?Image input units and similar products
Features
鈥?CMOS structure supporting low power dissipation.
鈥?Level shifter circuits provided on chip to minimize the
number of external components required.
鈥?Miniature package (24-pin SSOP)
Functions
鈥?Inverting drivers: 6 channels
鈥?Converts input pulses to V
CC
1, V
CC
2, and V
CC
3, as
well as V
EE
1 and V
EE
2 levels (inverting).
鈥?Generates the drive levels required for the image
sensor imaging and storage sections.
鈥?Inverting drivers: 2 channels
鈥?These drivers convert input pulses to V
CC
1, V
CC
2,
and V
CC
3, as well as V
EE
1 and V
EE
2 levels
(inverting).
鈥?These drivers generate the drive levels required for
the image sensor transfer gate.
SANYO: SSOP24
Specifications
Absolute Maximum Ratings
at Ta = 25擄C
Parameter
Maximum supply voltage
Input and voltages
Allowable power dissipation
Operating temperature
Storage temperature
Symbol
V
CC
max
V
EE
max
V
IN
Pd max
Topr
Tstg
V
CC
1, V
CC
2, V
CC
3
V
EE
1, V
EE
2
All input pins
Condition
Ratings
鈥?.3 to +6.0
鈥?1.0 to +0.3
鈥?.3 to V
CC
+ 0.3
350
鈥?0 to +70
鈥?0 to +125
Unit
V
V
V
mA
擄C
擄C
Allowable Operating Ranges
at Ta = 25擄C
Parameter
Supply voltage
Input voltage range
Symbol
V
CC
V
EE
V
IN
V
CC
1, V
CC
2, V
CC
3
V
EE
1, V
EE
2
All input pins
Conditions
Ratings
4.5 to 5.5
鈥?0.5 to 0
0 to V
CC
Unit
V
V
V
SANYO Electric Co.,Ltd. Semiconductor Bussiness Headquarters
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110 JAPAN
93097HA (OT) No. 5741-1/5
