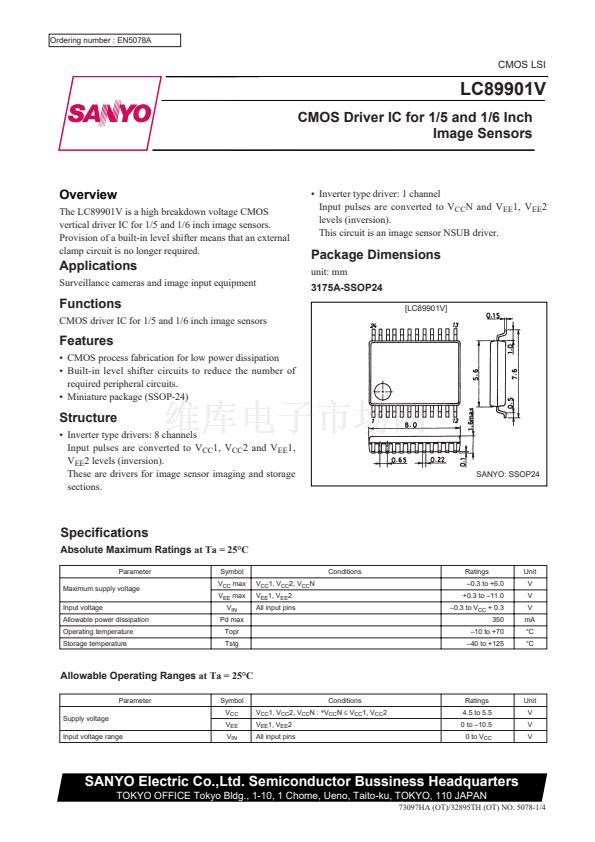

Ordering number : EN5078A
CMOS LSI
LC89901V
CMOS Driver IC for 1/5 and 1/6 Inch
Image Sensors
Overview
The LC89901V is a high breakdown voltage CMOS
vertical driver IC for 1/5 and 1/6 inch image sensors.
Provision of a built-in level shifter means that an external
clamp circuit is no longer required.
鈥?Inverter type driver: 1 channel
Input pulses are converted to V
CC
N and V
EE
1, V
EE
2
levels (inversion).
This circuit is an image sensor NSUB driver.
Applications
Surveillance cameras and image input equipment
Package Dimensions
unit: mm
3175A-SSOP24
[LC89901V]
Functions
CMOS driver IC for 1/5 and 1/6 inch image sensors
Features
鈥?CMOS process fabrication for low power dissipation
鈥?Built-in level shifter circuits to reduce the number of
required peripheral circuits.
鈥?Miniature package (SSOP-24)
Structure
鈥?Inverter type drivers: 8 channels
Input pulses are converted to V
CC
1, V
CC
2 and V
EE
1,
V
EE
2 levels (inversion).
These are drivers for image sensor imaging and storage
sections.
SANYO: SSOP24
Specifications
Absolute Maximum Ratings
at Ta = 25擄C
Parameter
Maximum supply voltage
Input voltage
Allowable power dissipation
Operating temperature
Storage temperature
Symbol
V
CC
max
V
EE
max
V
IN
Pd max
Topr
Tstg
V
CC
1, V
CC
2, V
CC
N
V
EE
1, V
EE
2
All input pins
Conditions
Ratings
鈥?.3 to +6.0
+0.3 to 鈥?1.0
鈥?.3 to V
CC
+ 0.3
350
鈥?0 to +70
鈥?0 to +125
Unit
V
V
V
mA
擄C
擄C
Allowable Operating Ranges
at Ta = 25擄C
Parameter
Supply voltage
Input voltage range
Symbol
V
CC
V
EE
V
IN
Conditions
V
CC
1, V
CC
2, V
CC
N :
*V
CC
N
鈮?/div>
V
CC
1, V
CC
2
V
EE
1, V
EE
2
All input pins
Ratings
4.5 to 5.5
0 to 鈥?0.5
0 to V
CC
Unit
V
V
V
SANYO Electric Co.,Ltd. Semiconductor Bussiness Headquarters
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110 JAPAN
73097HA (OT)/32895TH (OT) NO. 5078-1/4
