LC86P5420 Datasheet

  • LC86P5420

  • 8-Bit Single Chip Microcontroller with the One-Time Programm...

  • 22頁

  • SANYO

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

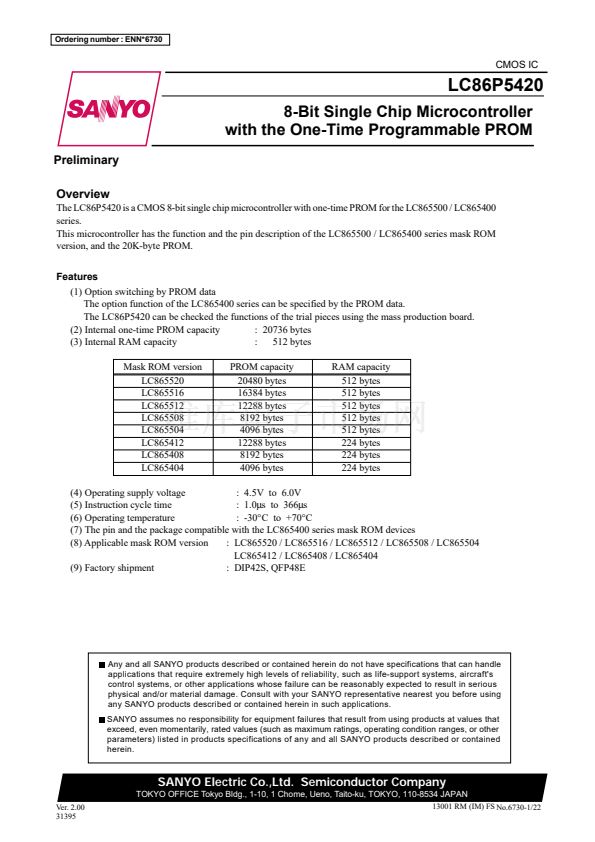

Ordering number : ENN*6730
LC86P5420
CMOS IC
LC86P5420
8-Bit Single Chip Microcontroller
with the One-Time Programmable PROM
Preliminary
Overview
The LC86P5420 is a CMOS 8-bit single chip microcontroller with one-time PROM for the LC865500 / LC865400
series.
This microcontroller has the function and the pin description of the LC865500 / LC865400 series mask ROM
version, and the 20K-byte PROM.
Features
(1) Option switching by PROM data
The option function of the LC865400 series can be specified by the PROM data.
The LC86P5420 can be checked the functions of the trial pieces using the mass production board.
(2) Internal one-time PROM capacity
: 20736 bytes
(3) Internal RAM capacity
: 512 bytes
Mask ROM version
LC865520
LC865516
LC865512
LC865508
LC865504
LC865412
LC865408
LC865404
PROM capacity
20480 bytes
16384 bytes
12288 bytes
8192 bytes
4096 bytes
12288 bytes
8192 bytes
4096 bytes
RAM capacity
512 bytes
512 bytes
512 bytes
512 bytes
512 bytes
224 bytes
224 bytes
224 bytes
(4) Operating supply voltage
: 4.5V to 6.0V
(5) Instruction cycle time
: 1.0碌s to 366碌s
(6) Operating temperature
: -30擄C to +70擄C
(7) The pin and the package compatible with the LC865400 series mask ROM devices
(8) Applicable mask ROM version
: LC865520 / LC865516 / LC865512 / LC865508 / LC865504
LC865412 / LC865408 / LC865404
(9) Factory shipment

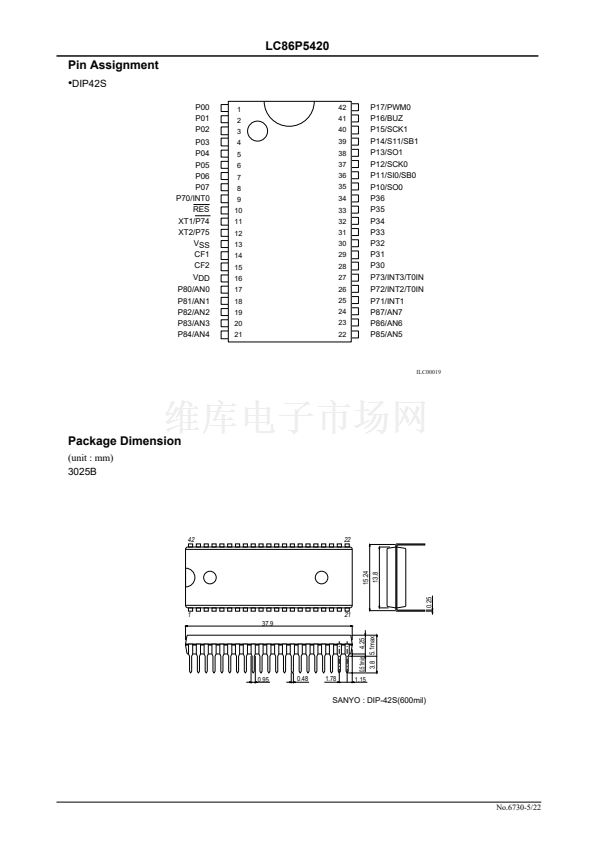

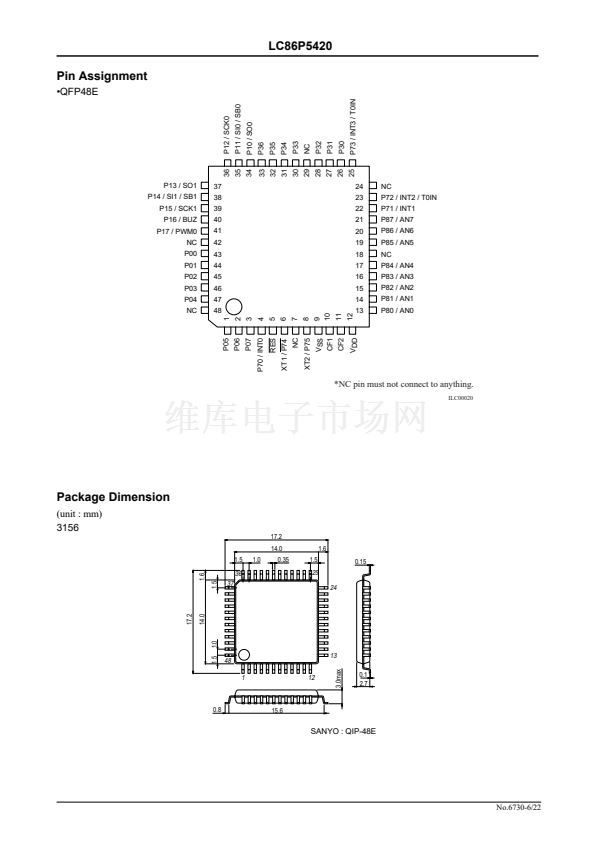

: DIP42S, QFP48E
Any and all SANYO products described or contained herein do not have specifications that can handle
applications that require extremely high levels of reliability, such as life-support systems, aircraft's
control systems, or other applications whose failure can be reasonably expected to result in serious
physical and/or material damage. Consult with your SANYO representative nearest you before using
any SANYO products described or contained herein in such applications.
SANYO assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other
parameters) listed in products specifications of any and all SANYO products described or contained
herein.
SANYO Electric Co.,Ltd. Semiconductor Company
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
Ver. 2.00
31395
13001 RM (IM) FS No.6730-1/22
