Ordering number : EN*3587B

CMOS LSI

LC7573N, 7573NM

1/2 Duty VFD Driver for Frequency Display

Preliminary

Overview

The LC7573N and LC7573NM are 1/2 duty VFD drivers

that can be used for electronic tuning frequency display

and other applications under the control of a controller.

These products can directly drive VFDs with up to 38

segments.

Package Dimensions

unit: mm

3061-DIP30S

[LC7573N]

Features

鈥?38 segment outputs

鈥?Noise reduction circuits are built into the output drivers.

鈥?Serial data input supports CCB* format

communications with the system controller.

鈥?Switching between digital and analog dimmers under

serial data control

鈥?High generality since display data is displayed without

the intervention of a decoder

鈥?All segments can be turned off with the BLK pin

SANYO: DIP30S

鈥?CCB is a trademark of SANYO ELECTRIC CO., LTD.

鈥?CCB is SANYO鈥檚 original bus format and all the bus

addresses are controlled by SANYO.

unit: mm

3073A-MFP30S

[LC7573NM]

Pin Assignment

SANYO: MFP30S

SANYO Electric Co.,Ltd. Semiconductor Bussiness Headquarters

TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN

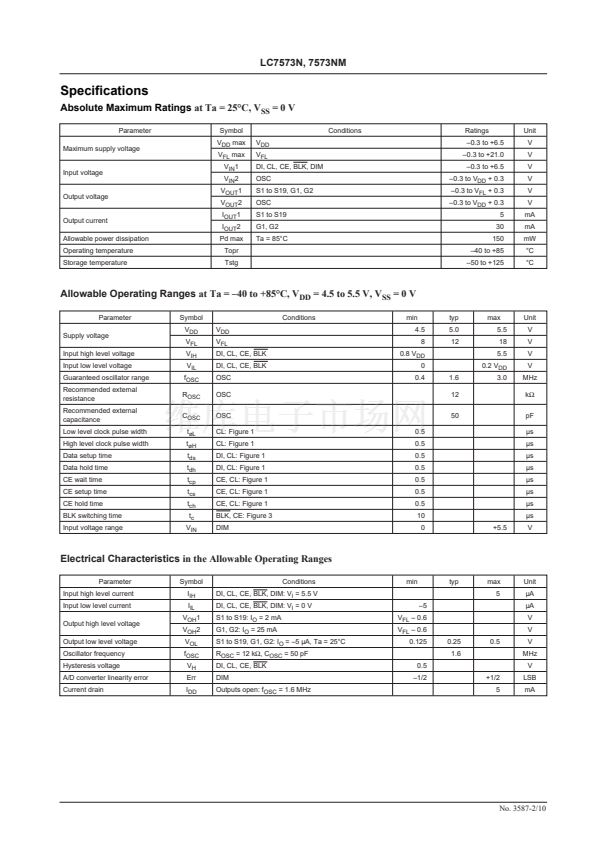

O2095HA (OT)/3242JN No.3587-1/10
